Hardware options installation 58

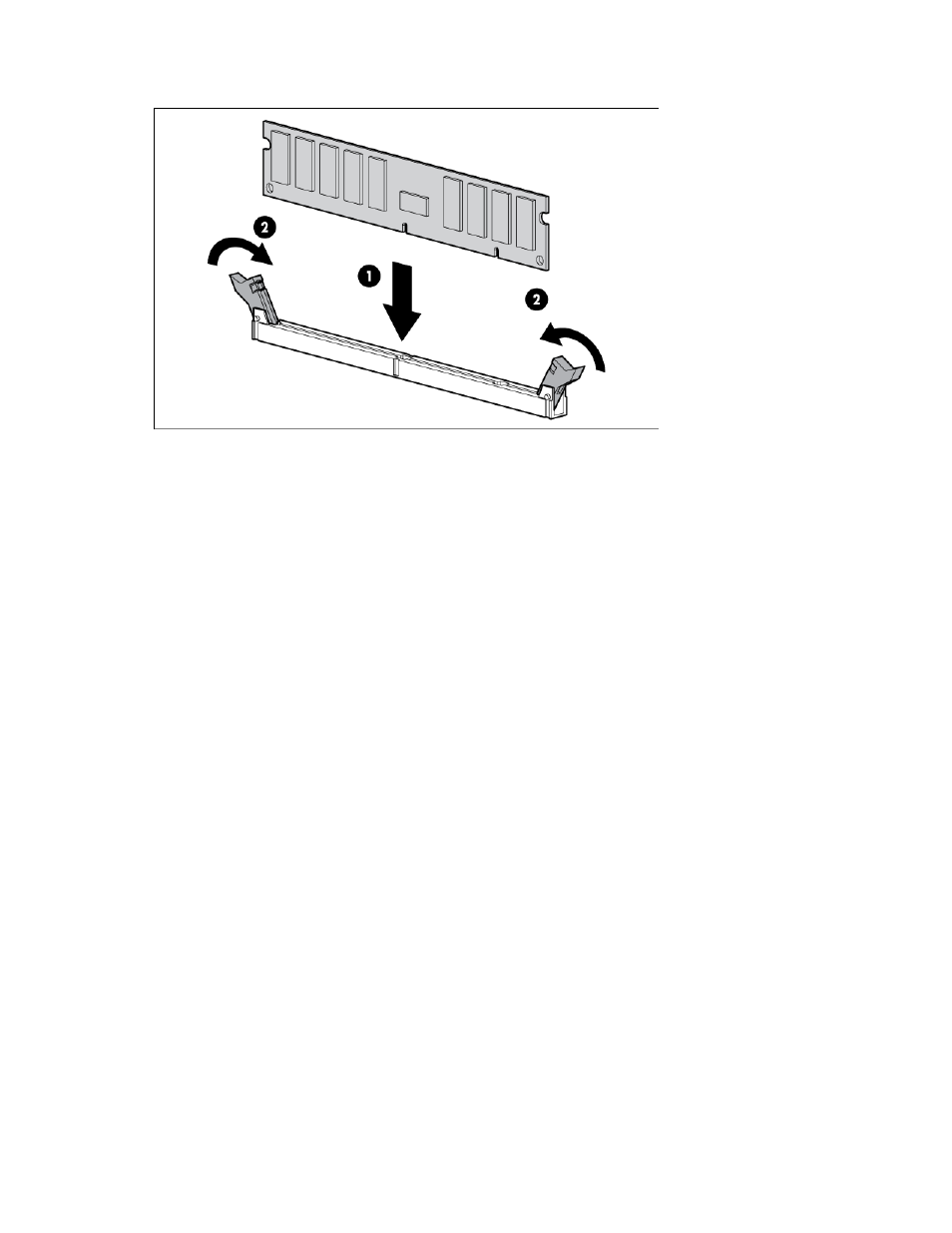

7. Install the DIMM.
8. Do one of the following:
o Install the right DIMM baffle.
o Install the left DIMM baffle.
9. Install the access panel (A-side).
10. Install the server blade (" Installing a server blade " on page 32 ).
11. Power up the server blade (on page 16 ).
Installing DIMMs (B-side)
To install the component:
1. Power down the server blade (on page 16 ).
2. Remove the server blade (on page 17 ).
3. Place the server blade on a flat, level surface with the correct side of the server blade facing up. To
determine the correct side, see the label attached to the access panel.
4. Remove the access panel (B-side) (on page 18 ).
5. Do one of the following:
o If installing processor 3 DIMMs, remove the right DIMM baffle (on page 20 ).
o If installing processor 4 DIMMs, remove the left DIMM baffle (on page 19 ).
6. Open the DIMM slot latches.
