Component identification 10
Item Description
15 Processor 1
16 System battery
17 SAS/SATA backplane power connector
18 Processor 2
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL680c G7 Server Blade Installation Instructions that ship with the server blade.

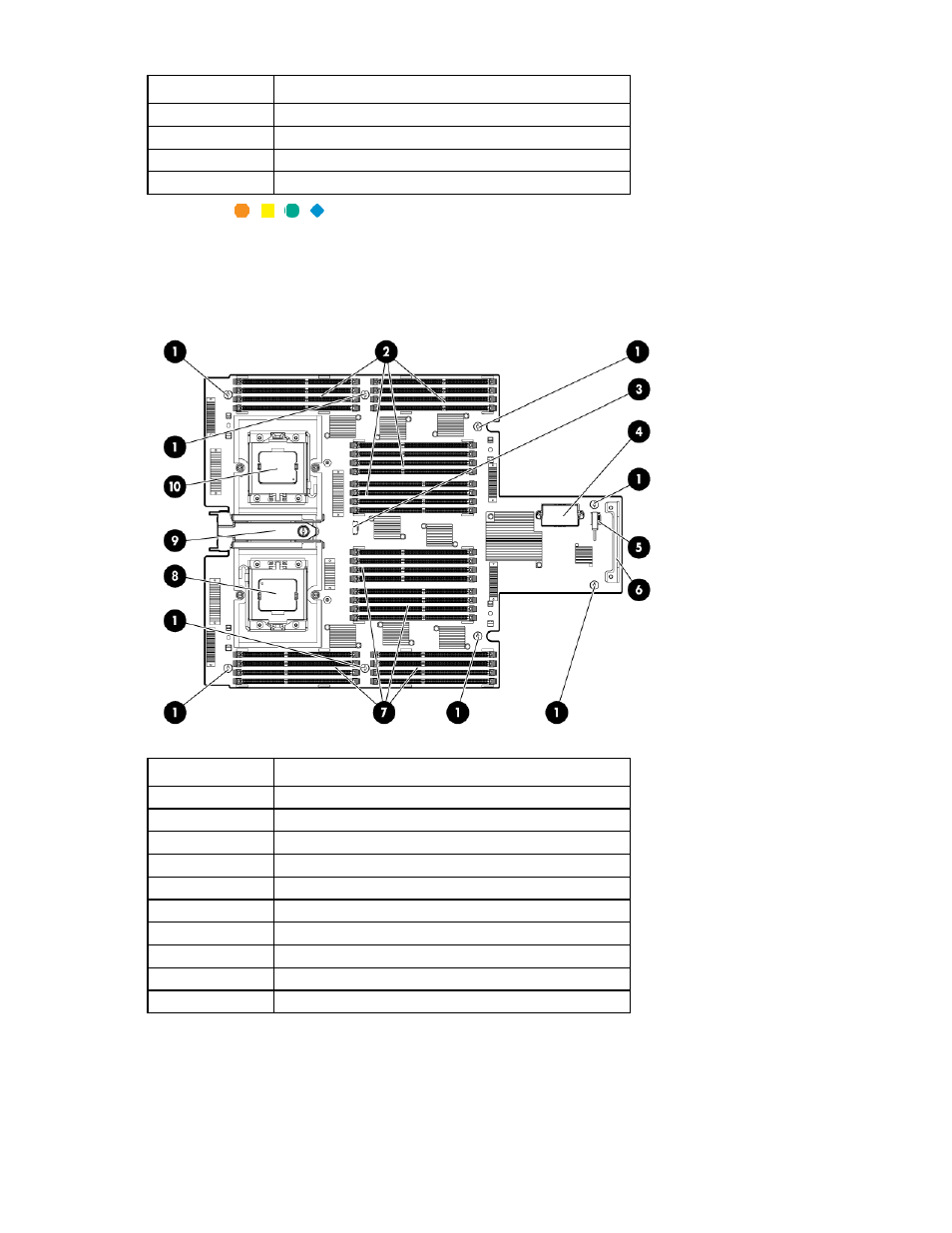

System board components (B-side)
Item Description
1 System board thumbscrews (8)
2 Processor 4 DIMM slots (16)
3
SAS/SATA backplane power connector
4 Interposer board connector
5 SAS/SATA signal connector
6 Lift handle
7
Processor 3 DIMM slots (16)
8 Processor 3
9 Ejector handle
10 Processor 4
