Operations 20

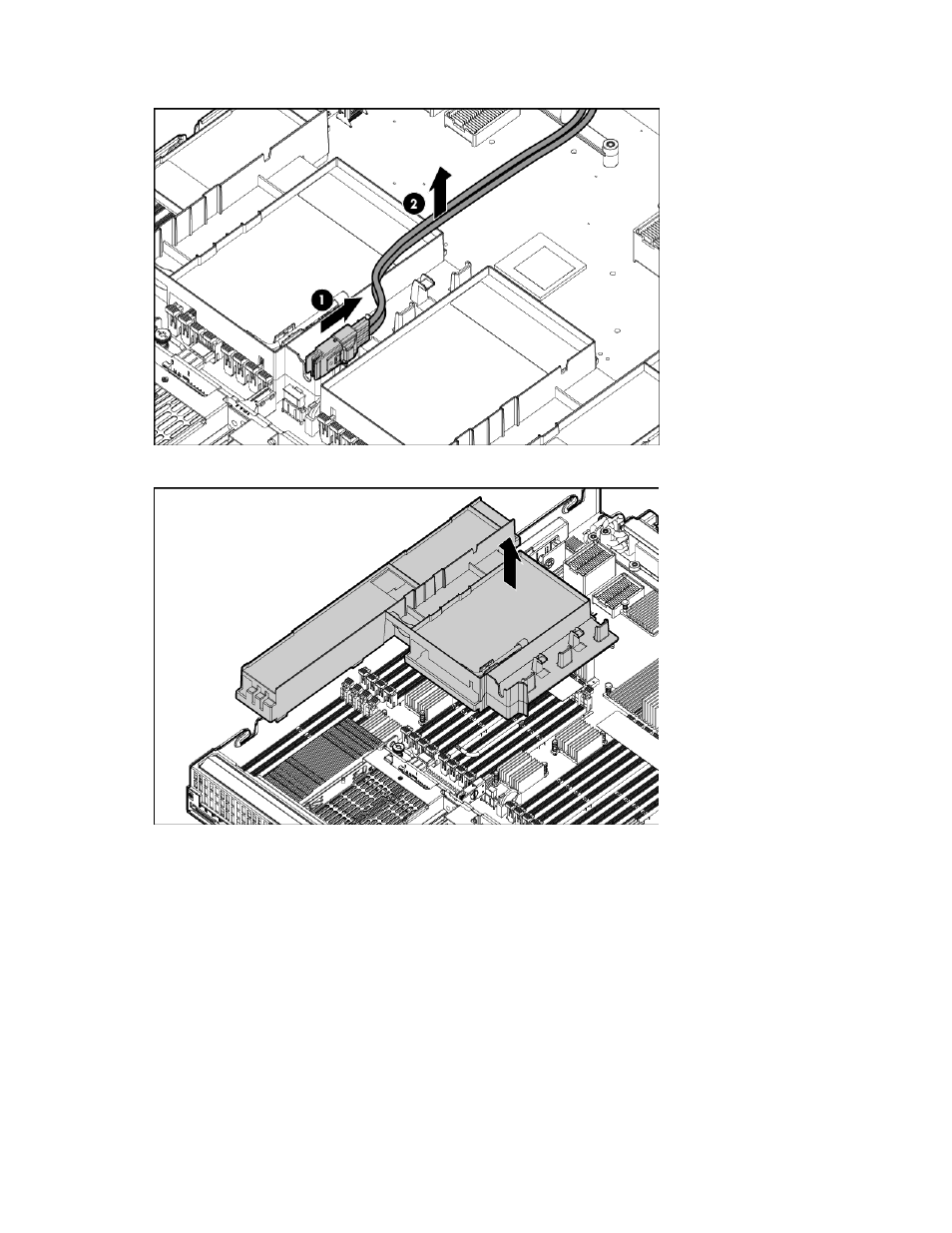

7.

Unroute the SAS/SATA cable.

8.

Remove the left DIMM baffle.

Remove the right DIMM baffle

To remove the component:

1.

Power down the server blade (on page

16

).

2.

Remove the server blade (on page

17

).

3.

Place the server blade on a flat, level surface with the correct side of the server blade facing up. To
determine the correct side, see the label attached to the access panel.

4.

Remove the access panel (B-side) (on page

18

).

5.

If installed, remove the battery pack (on page

24

).

You do not have to disconnect the cable from the battery.
