Chapter 1: introduction, Overview, Hardware overview – HP NC3120 Fast Ethernet Server Adapter User Manual
Page 9: Chapter 1, Introduction, Overview -1, Hardware overview -1

Chapter
1
Introduction
Overview
For the latest functionality, features, and operating system support for the NC3120 Server
Adapter, see the networking page at
compaq.com
Hardware Overview
The NC3120 Server Adapter has three diagnostic LED indicators that show if there is a problem
with the connector, cable, or hub.

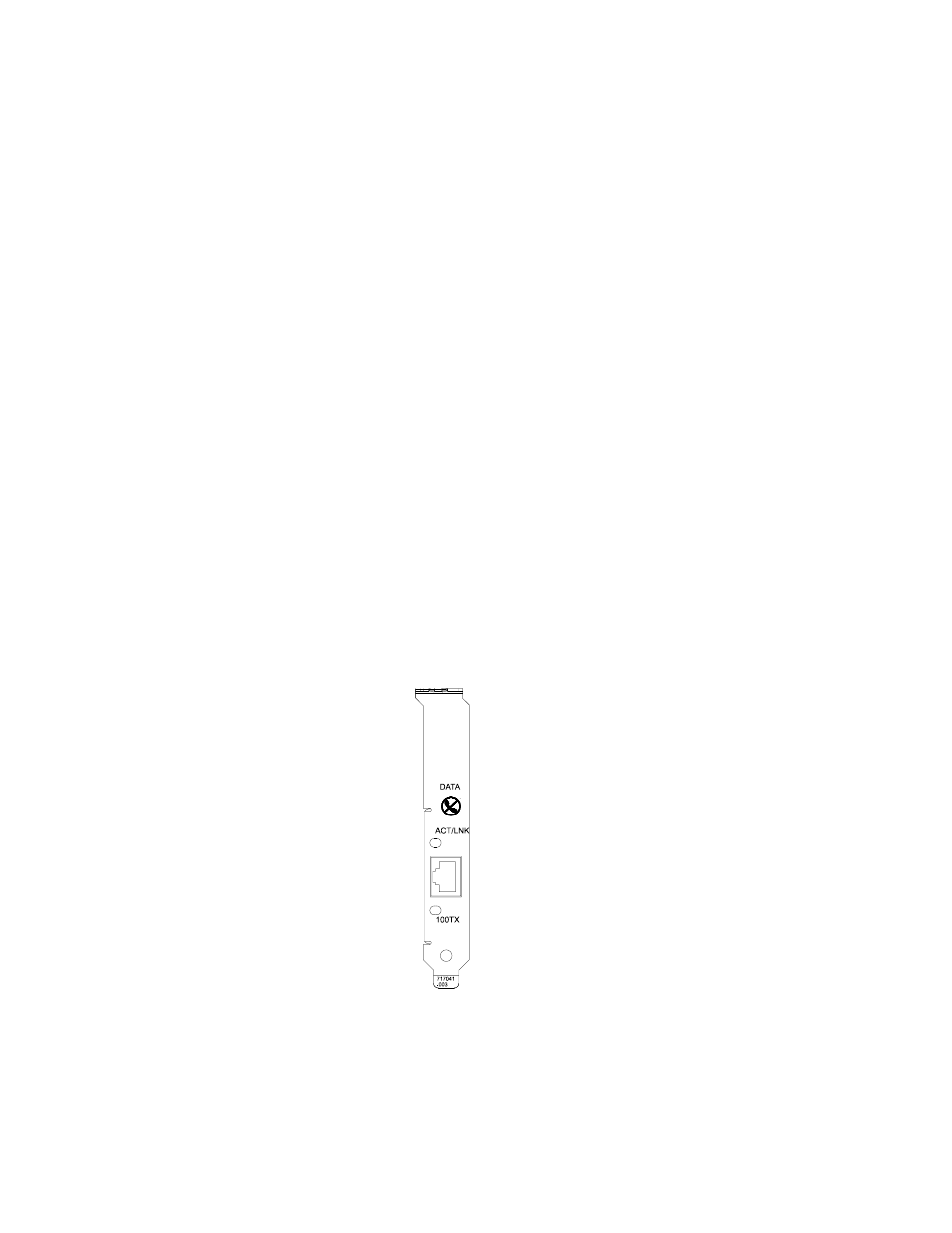

Figure 1-1. Compaq NC3120 Server Adapter
