Introduction
1-2 HP NC7170 Dual Port PCI-X 1000T Gigabit Server Adapter User Guide

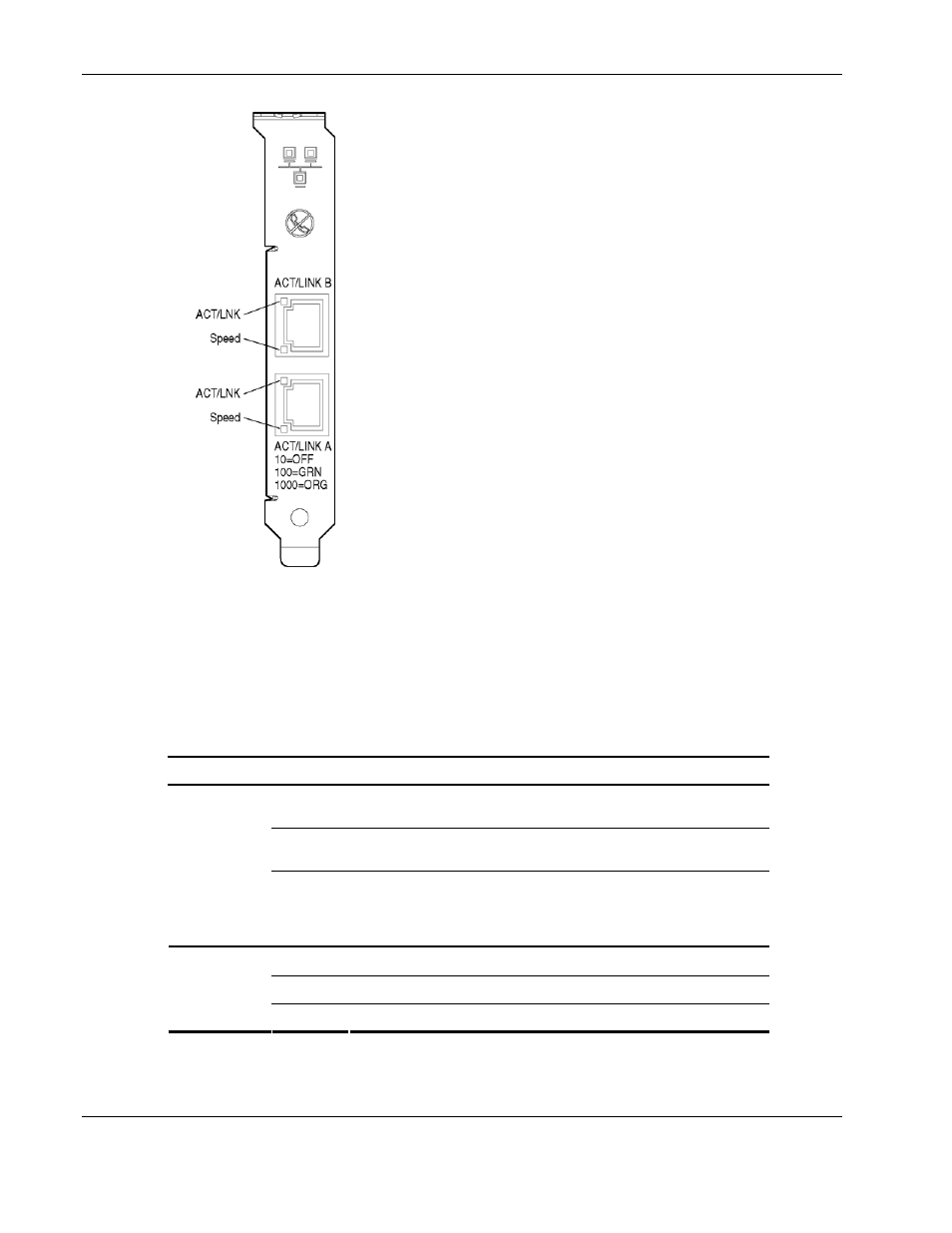

Figure 1-1: NC7170 Gigabit Server Adapter
LED Indicators
The NC7170 Gigabit Server Adapter LED indicators operate as described in the following
table.
Table 1-1: LED Operations for the NC7170 Adapter
LED Status Description
On Link to the adapter is established. The adapter is receiving
power and the cable connection is good.
Off No link to the adapter is established. The adapter is not
receiving power or the cable connection is faulty.
ACT/LINK
Flashing The adapter is sending or receiving network data at
10/100/1000 Mb/s, as indicated by the 10/100/1000 (speed)
LED. The adapter is receiving power, and the cable connection
is good.
Off The adapter is sending or receiving network data at 10 Mb/s.
Green The adapter is sending or receiving network data at 100 Mb/s.
Speed
Orange The adapter is sending or receiving network data at 1000 Mb/s.
