Mounting the Monitor
NOTE:
This apparatus is intended to be supported by UL or CSA Listed wall mount bracket.
1.
Remove the monitor panel from the pedestal base. Refer to
in the previous section.
2.
To attach the monitor to a swing arm, insert four 10mm screws through the holes on the swing
arm plate and into the mounting holes on the monitor.
CAUTION:
This monitor supports the VESA industry standard 100 mm mounting holes. To
attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long
screws are required (not provided with the monitor). Longer screws must not be used because
they may damage the monitor. It is important to verify that the manufacturer’s mounting solution
is compliant with the VESA standard and is rated to support the weight of the monitor display
panel. For best performance, it is important to use the power and video cables provided with the
monitor.

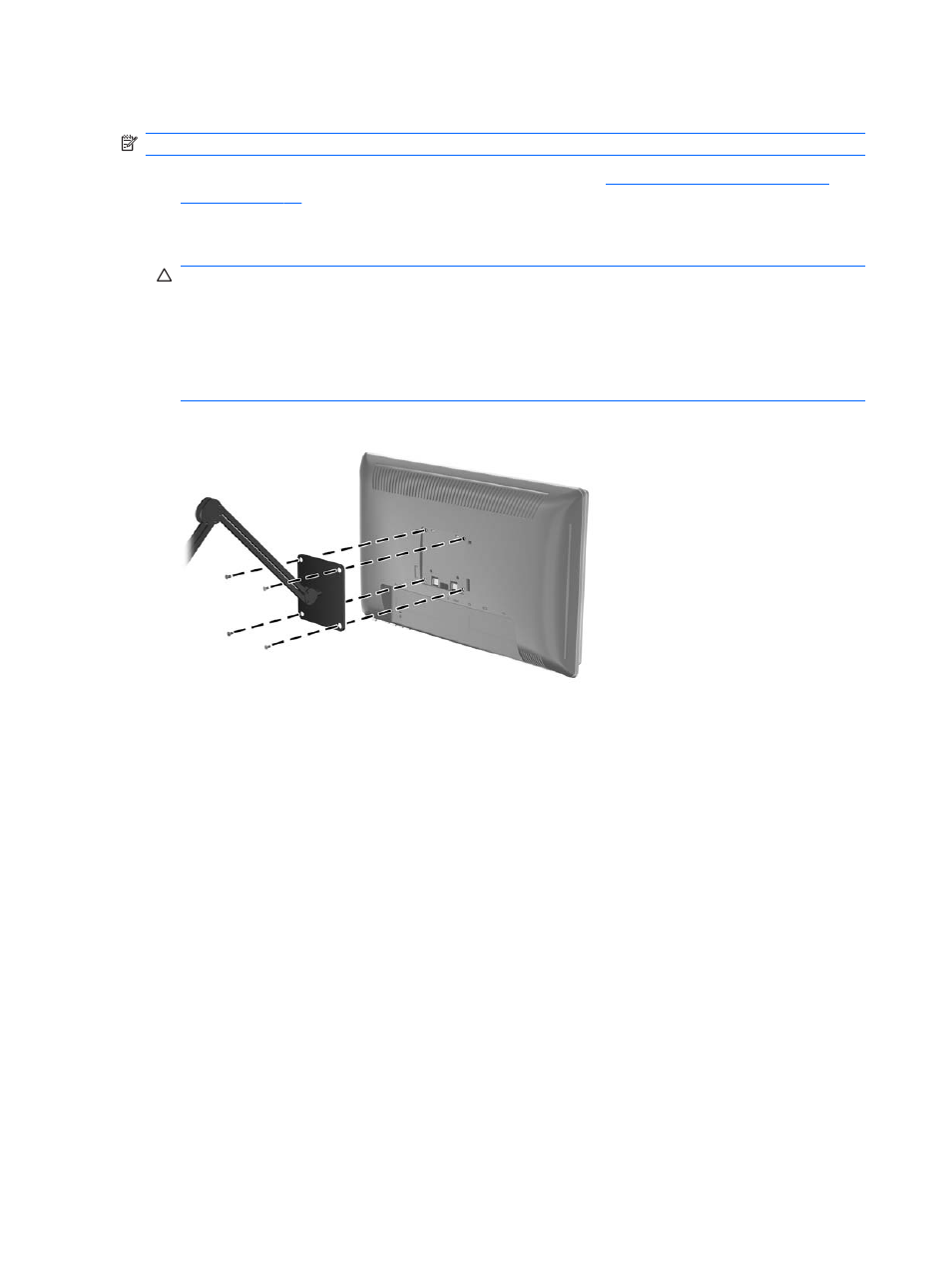

Figure 3-15
Installing the Monitor on a Swing Arm
To attach the monitor to other mounting fixtures, follow the instructions included with the
mounting fixture to ensure that the monitor is safely attached.
3.
Reconnect the cables to the monitor panel.
