Cabling 68

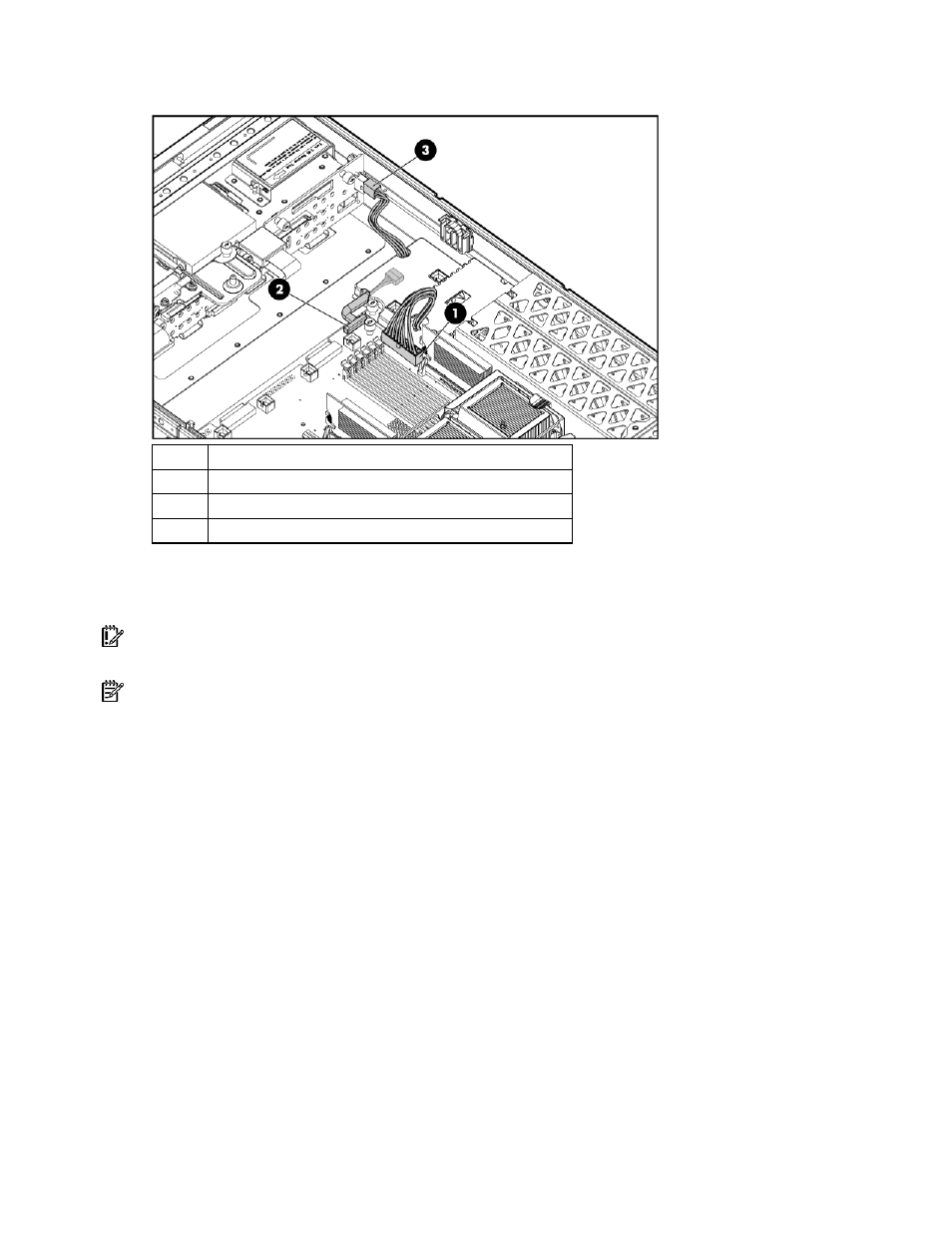

Internal power cabling

Item Description

1

System power cable

2

Power supply signal cable

3

SAS power cable

SCSI model cabling

IMPORTANT: If a simplex or duplex cabling configuration is not cabled correctly, the SCSI configuration

error LED will illuminate. Refer to "SCSI Backplane LEDs (on page

18

)" to locate the LED.

NOTE: The server ships with two identical short SCSI cables. Two optional long SCSI cables may be

obtained for PCI Array Controllers. One optional terminator board may be obtained to support duplex SCSI
configurations.
