Cabling 64
Cabling
In this section
Cabling................................................................................................................................................. 64
SAS model cabling................................................................................................................................. 64
SCSI model cabling................................................................................................................................ 68
Cabling
This section provides guidelines that help you make informed decisions about cabling the server and
hardware options to optimize performance.
For information on cabling the optional RILOE II board, refer to the HP Remote Insight Lights-Out Edition II
User Guide on the Documentation CD.
For information on cabling peripheral components, refer to the white paper on high-density deployment in
HP or Compaq branded ra
).
SAS model cabling
SAS hard drive cabling

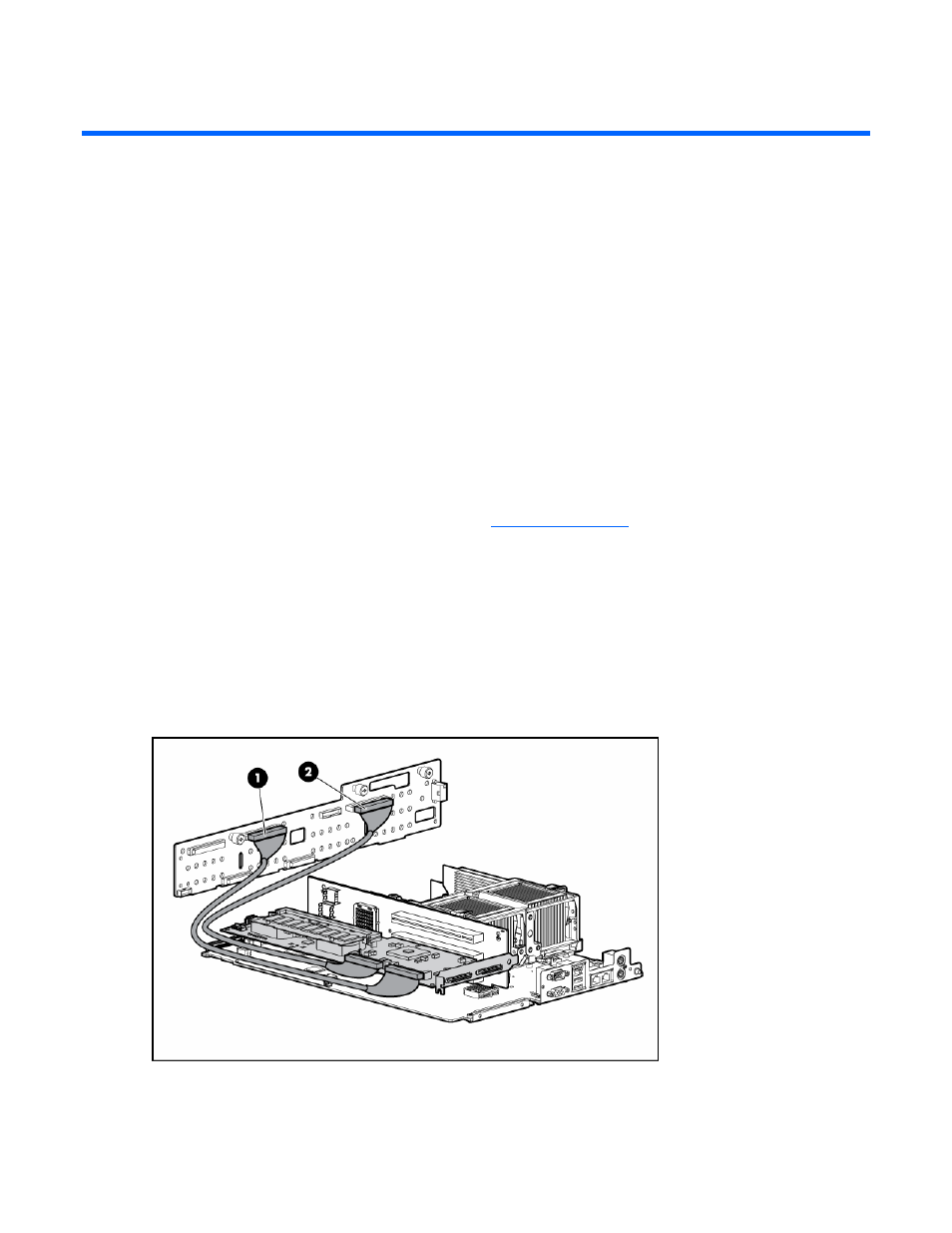

The HP ProLiant DL380 Generation 4 Server SAS model uses a serial attached SCSI bus to connect SAS
hard drives on a SAS backplane to a PCI SAS controller. In a SAS environment, each hard drive has a
direct connection to the SAS controller. Two cables connect the PCI SAS controller to the SAS backplane.
Each cable controls four SAS drives.
