Hardware options installation 61

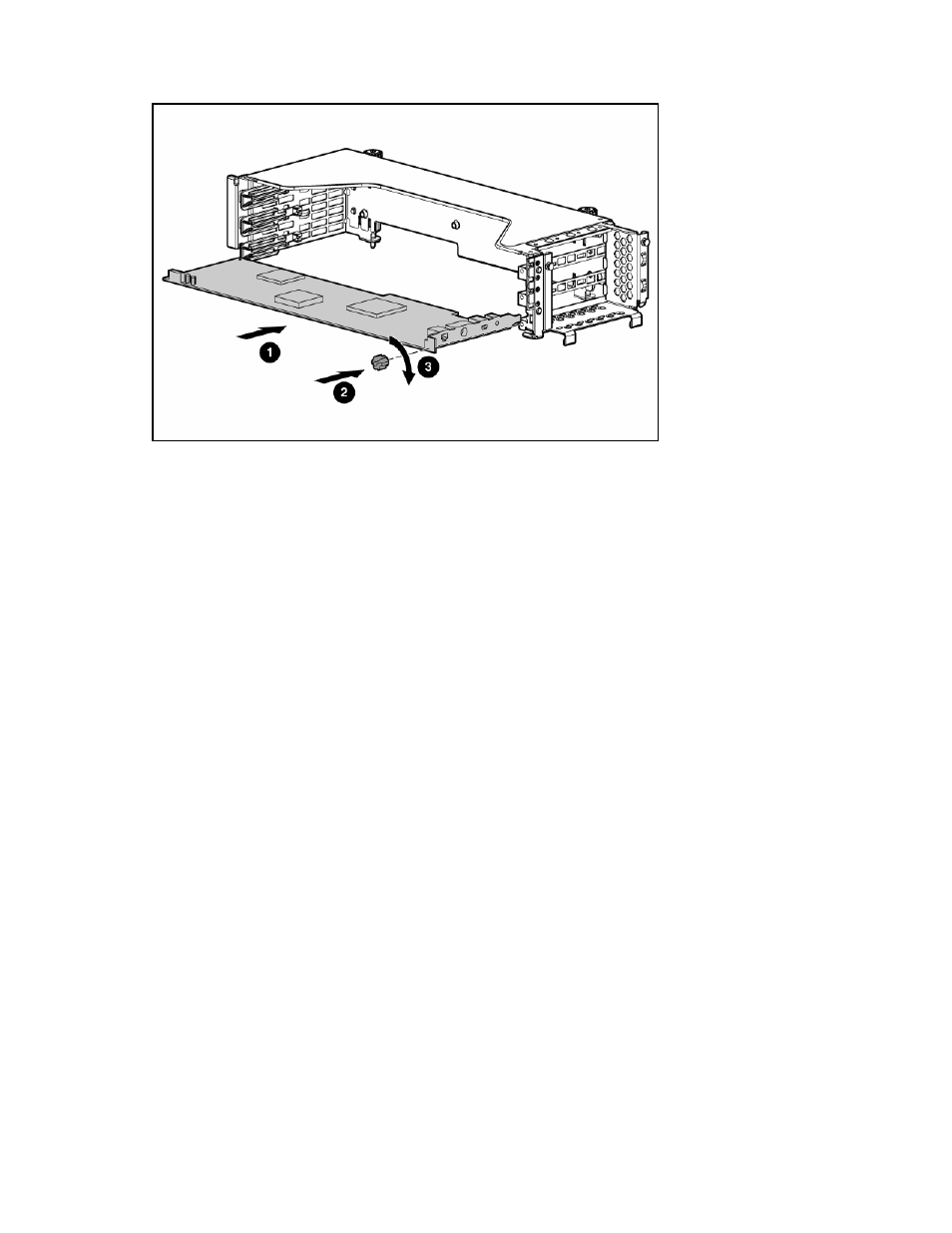

7. Install the expansion board.
8. Lock the PCI retaining clip.
9. Install the PCI riser cage (" Installing the PCI riser cage " on page 56 ).
10. Connect any required internal or external cables to the expansion board. Refer to the documentation
that ships with the expansion board.
11. Close the PCI riser cage door.
12. Install the access panel (" Installing the access panel " on page 29 ).
Installing PCI hot plug expansion boards
The server supports PCI Hot Plug technology, which works together with the server operating system to
allow replacement, addition, and upgrade of expansion boards without powering down the server.
The server must have all the following to be PCI Hot Plug-capable:
• PCI Hot Plug system hardware (available in this server)
• PCI Hot Plug device drivers installed from the SmartStart CD
• Operating system with PCI Hot Plug support
For more information, refer to the PCI Hot Plug Administration Guide on the Documentation CD.
To install a hot-plug expansion board:
1. Extend the server from the rack, if applicable (" Extend the server from the rack " on page 28 ).
2. Remove the access panel (" Removing the access panel " on page 29 ).
