HP Z800 Workstation front panel components
The following illustration shows the front panel components of a typical HP Z800 Workstation. Drive
configurations can vary.

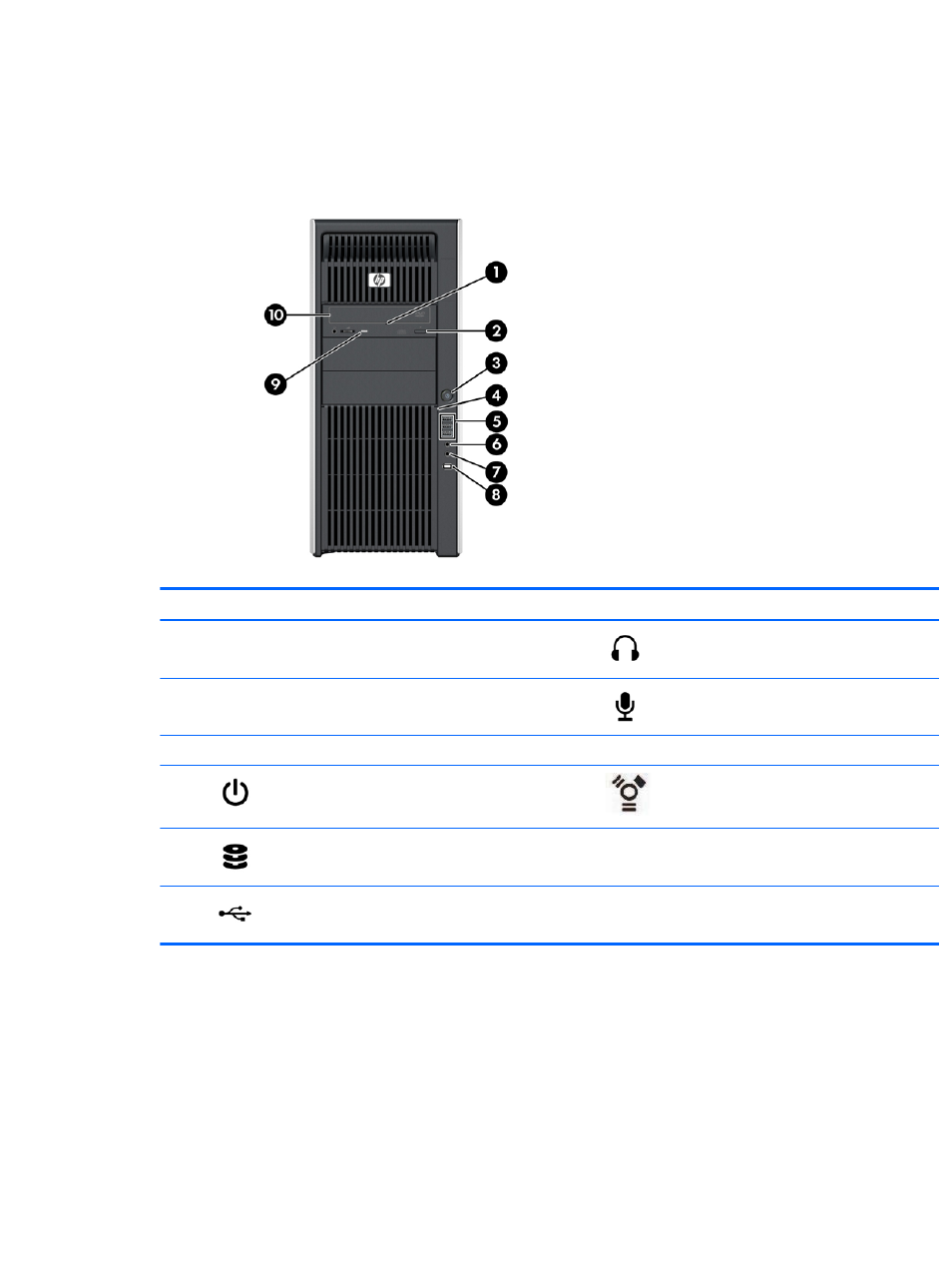

Figure 2-8 HP Z800 Workstation front panel
Table 2-8 HP Z800 Workstation front panel connectors *
Item Symbol Description Item Symbol Description
1 Optical drive manual eject 6 Headphone connector
2 Optical drive eject button 7 Microphone connector
3 Power button 8 IEEE-1394a connector
4 Hard drive activity light 9 Optical drive activity light
5 USB 2.0 ports (3) 10 Optical Drive
* Refer to the Maintenance and Service Guide for the workstation for specific front panel connector information.
ENWW HP Z800 Workstation components 17
