4. Route the CPU power cable (P3) through the opening next to the power supply as shown in the
following figure.

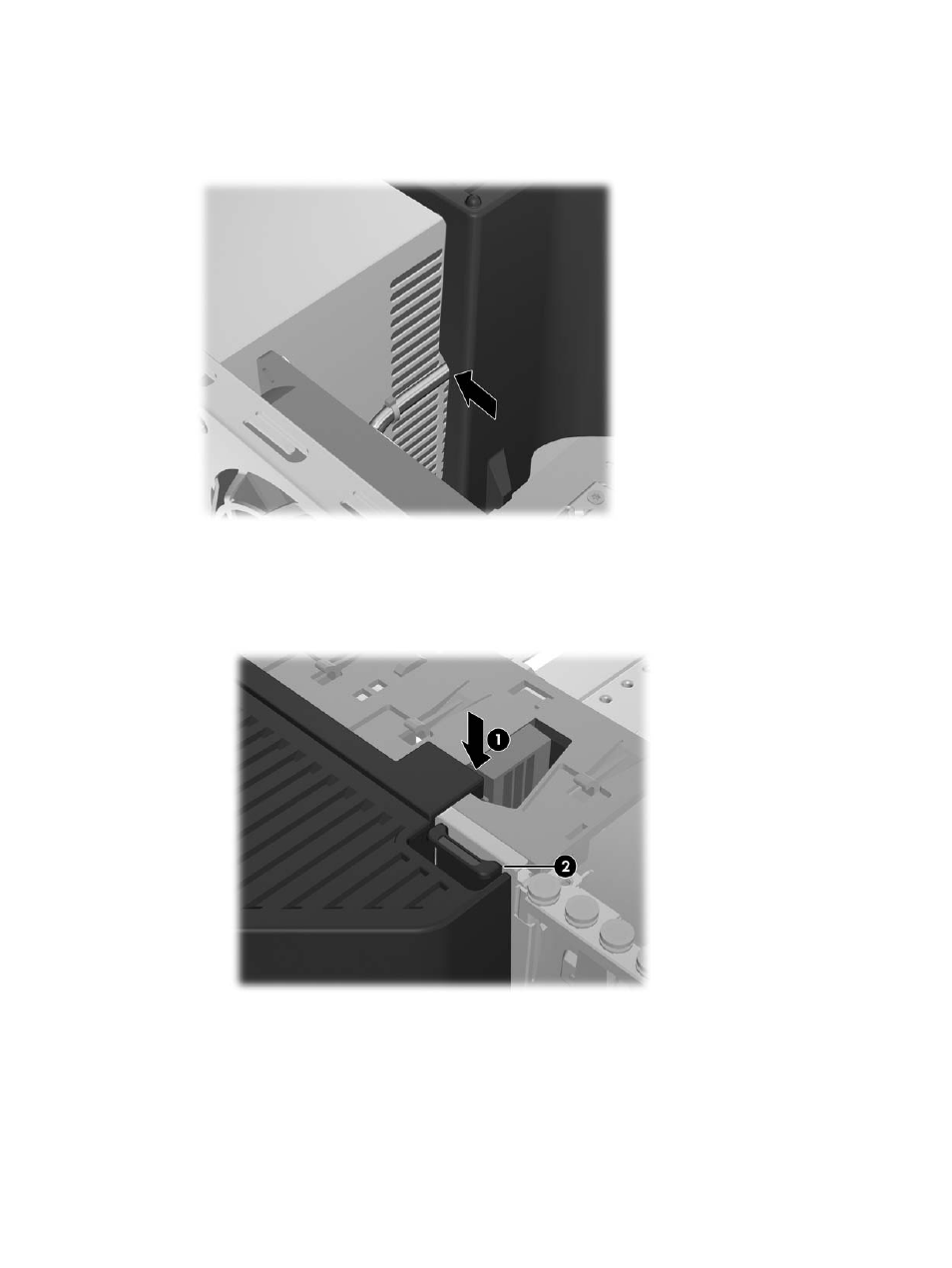

Figure 7-5 Routing the CPU power cable
5. Secure the airflow guide in the chassis.
a. Insert the tab on the airflow guide into the slot next to the yellow ODD release lever (1), and
then press down as shown in the following figure.
Figure 7-6 Securing the airflow guide
b. Ensure that the airflow guide secures even with the end of the FDD bay, and that the latch
(2) engages with the slot in the internal bay cover.
ENWW Installing the airflow guide (Z400 only) 51
