HP Z600 Workstation front panel components

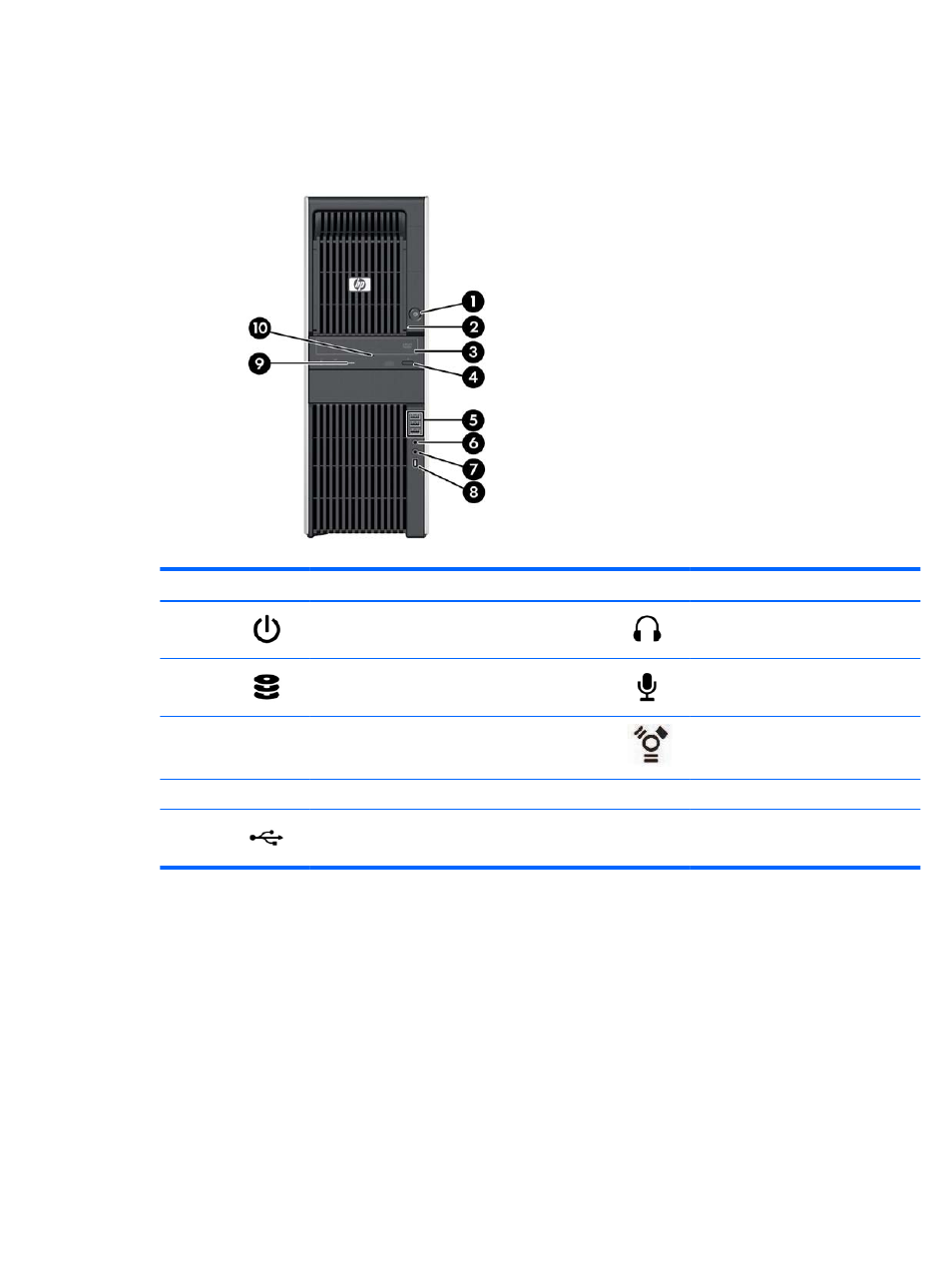

The following figure shows the front panel of a typical HP Z600 Workstation.
Figure 2-5 HP Z600 Workstation front panel
Table 2-5 HP Z600 Workstation front panel connectors *
Item Symbol Description Item Symbol Description
1 Power button 6 Headphone connector
2 Hard drive activity light 7 Microphone connector
3 Optical drive 8 IEEE-1394a connector (standard with
RDIMM system board)
4 Optical drive eject button 9 Optical drive activity light
5 USB 2.0 ports (3) 10 Optical drive manual eject
* See the Maintenance and Service Guide for the workstation for specific front panel connector information.
