HP LP3065c 30 inch LCD Monitor User Manual
Page 20
3.
Mount the Quick Release to a swing arm or other mounting fixture using the four screws removed
from the Quick Release in the previous step.

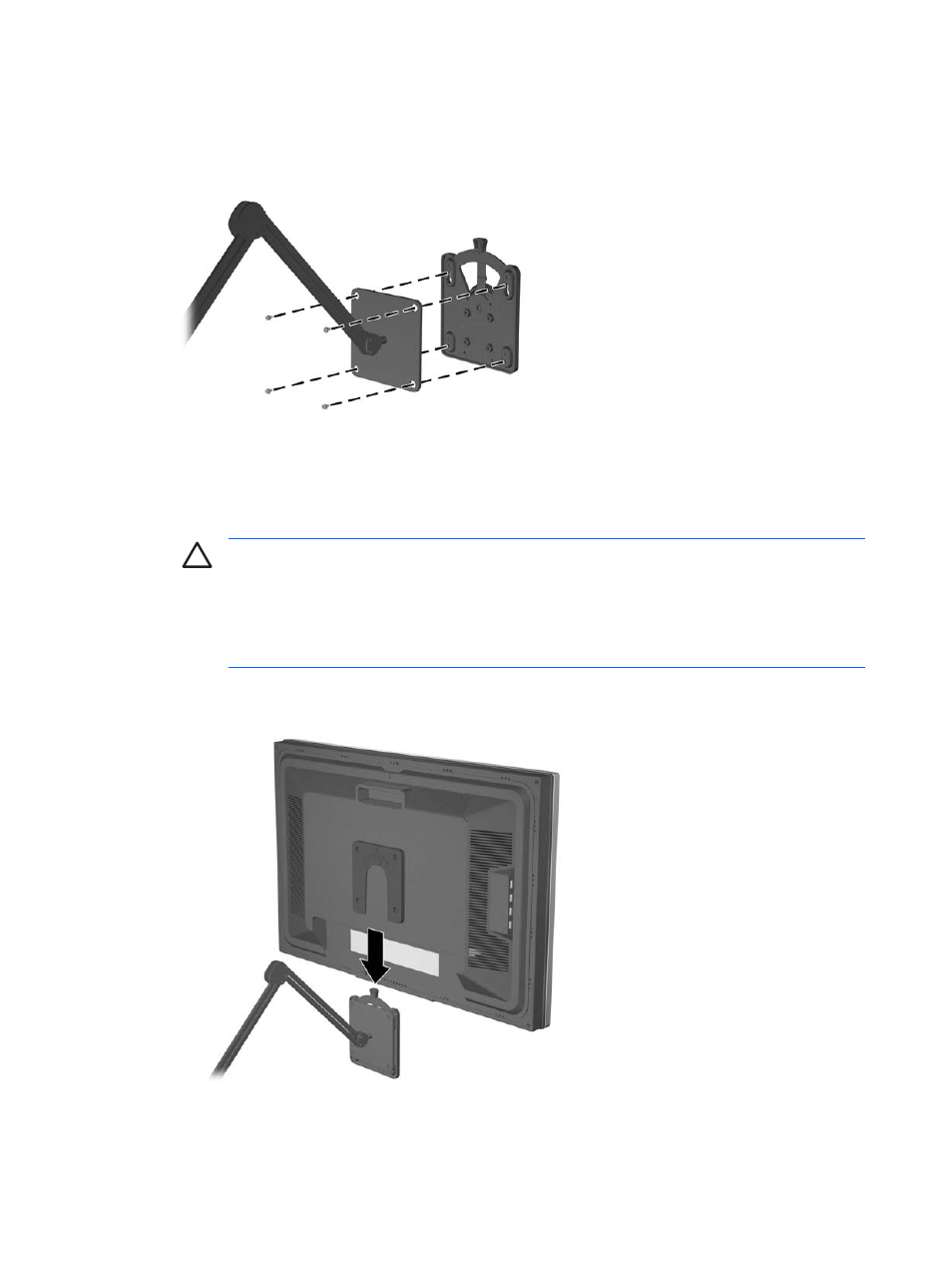

Figure 3-14
Installing the Quick Release
CAUTION
The Quick Release can also be installed directly to a wall to mount the monitor
panel. It is designed to support a maximum of up to 24 lbs. (10.9 kg). If you are mounting
to a wall, HP recommends that you consult with a qualified engineering, architectural, or
construction professional to determine the appropriate type and quantity of mounting
fasteners required for your application and to ensure that your mounting solution is properly
installed to support applied loads.
4.
Insert the monitor into the Quick Release, and then press down firmly on the monitor to lock it in
place. When the Quick Release locks, it will make a clicking sound.
Figure 3-15
Inserting the Monitor Panel into the Quick Release
14
Chapter 3 Setting Up the Monitor
ENWW
