Connecting the displayport video cable, Connecting the hdmi cable (2310e model only) – HP 2310e 23 inch Diagonal LCD Monitor User Manual
Page 15

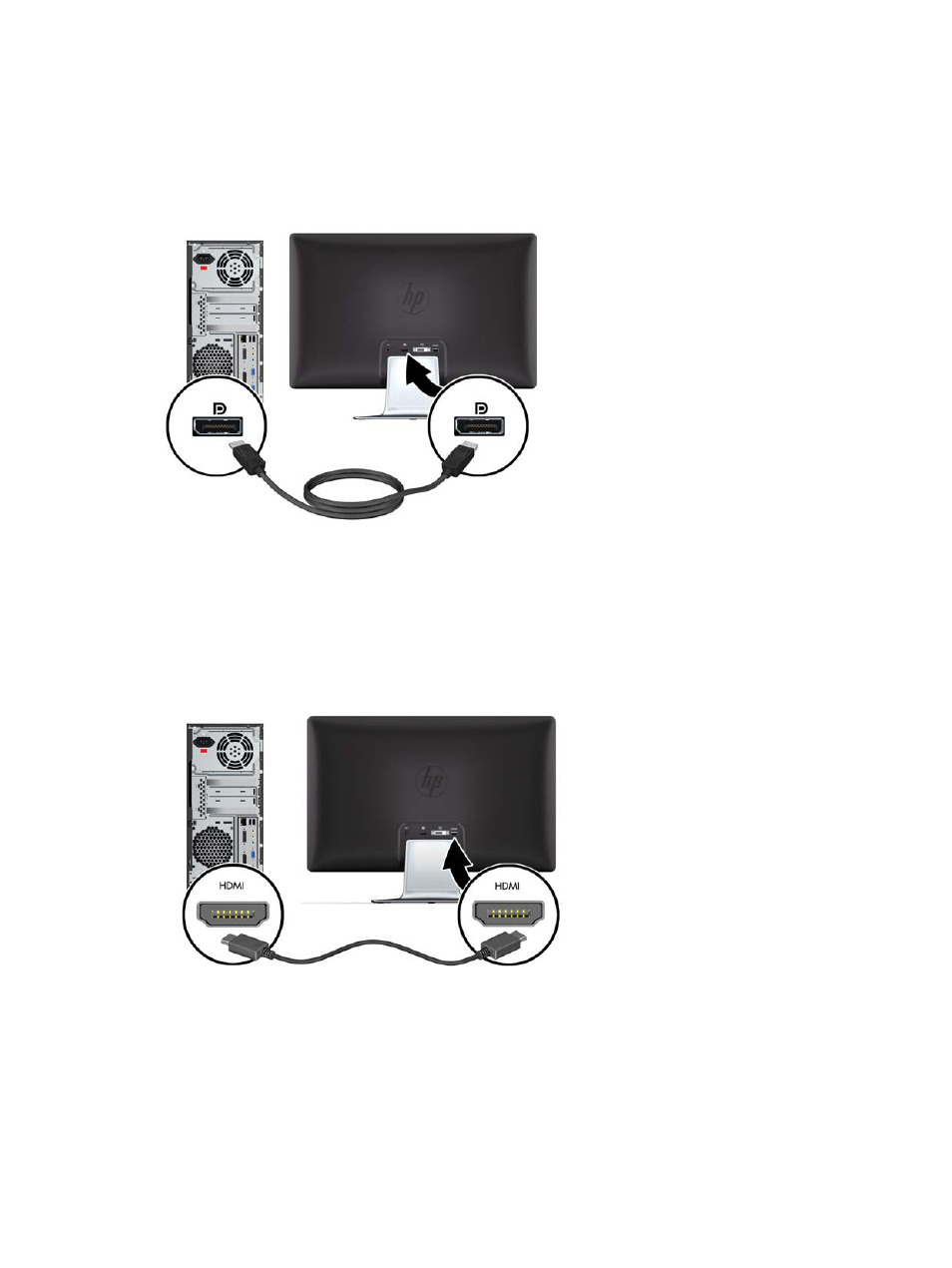

Connecting the DisplayPort Video Cable
Connect one end of the DisplayPort Digital Input cable to the back of the monitor and the other end
connector to the input device. A DisplayPort Digital Input cable is provided on select models only.
Figure 3-4
Connecting the DisplayPort Cable (cable provided on select models only)
Connecting the HDMI Cable (2310e Model Only)
Connect one end of the HDMI cable to the back of the monitor and the other end connector to the
input device. An HDMI cable is provided on select models only.
Figure 3-5
Connecting the HDMI Cable (cable provided on select models only)
ENWW
Connecting Monitor Cables
9
