Connecting Monitor Cables
CAUTION:
Before connecting cables to the monitor, ensure that the computer and monitor are
powered off.
The video source is determined by the video cable used. The monitor will automatically determine
which inputs have valid video signals. The inputs can be selected by pressing the source button on
the front panel.
Connecting the DVI-D Video Cable
Connect one end of the DVI-D video cable to the back of the monitor and the other end to the DVI-D
video connector on the computer. You can use this cable only if your computer has a DVI compliant
graphics card that is either integrated or installed. The DVI-D cable is included.

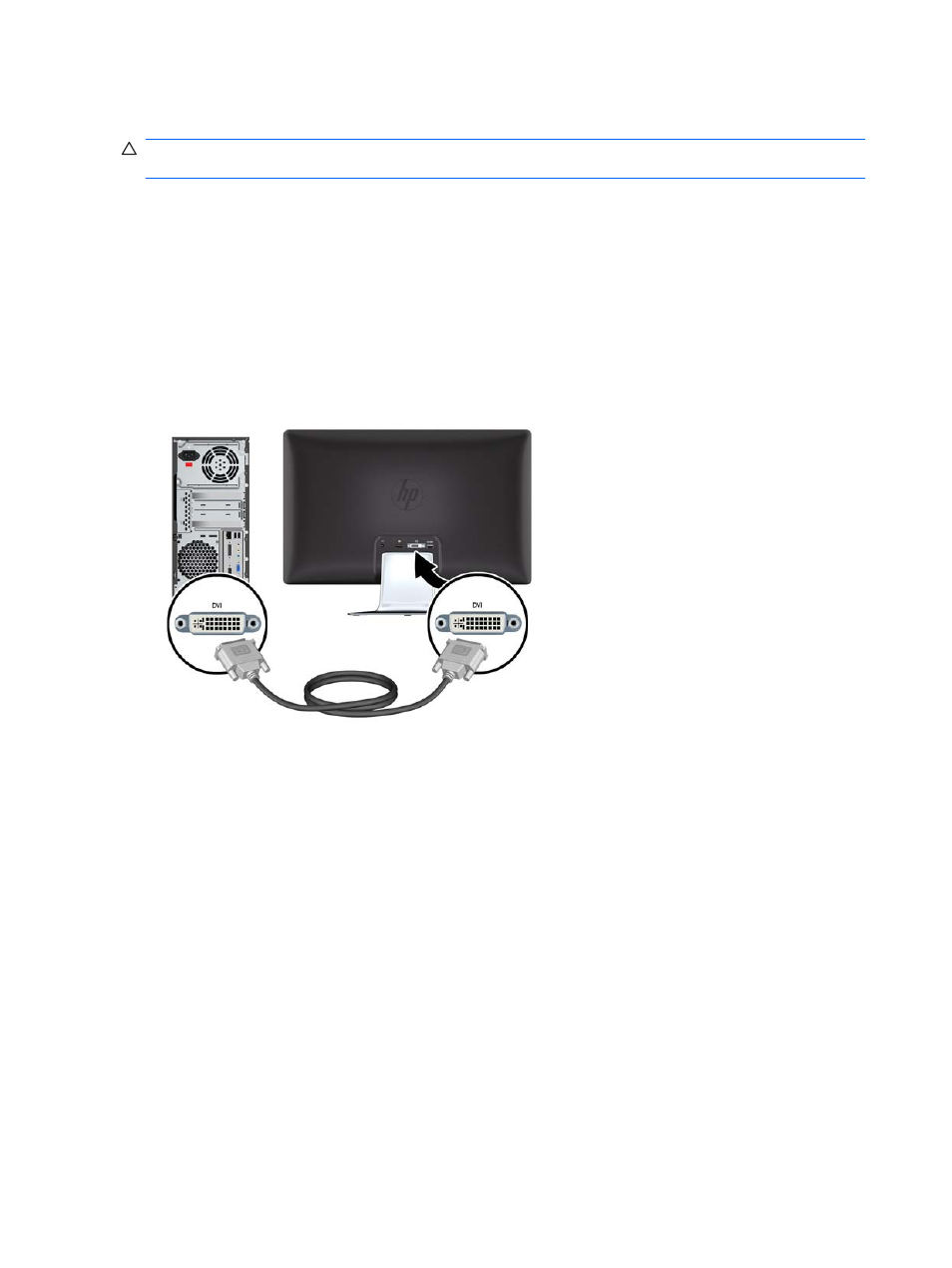

Figure 3-3
Connecting the DVI-D Cable
8
Chapter 3 Setting Up the Monitor
