2.
Align the column with the monitor support column and push forward until the column
locks in place. Then align the stand with the column and push the stand towards the
bottom of the monitor.

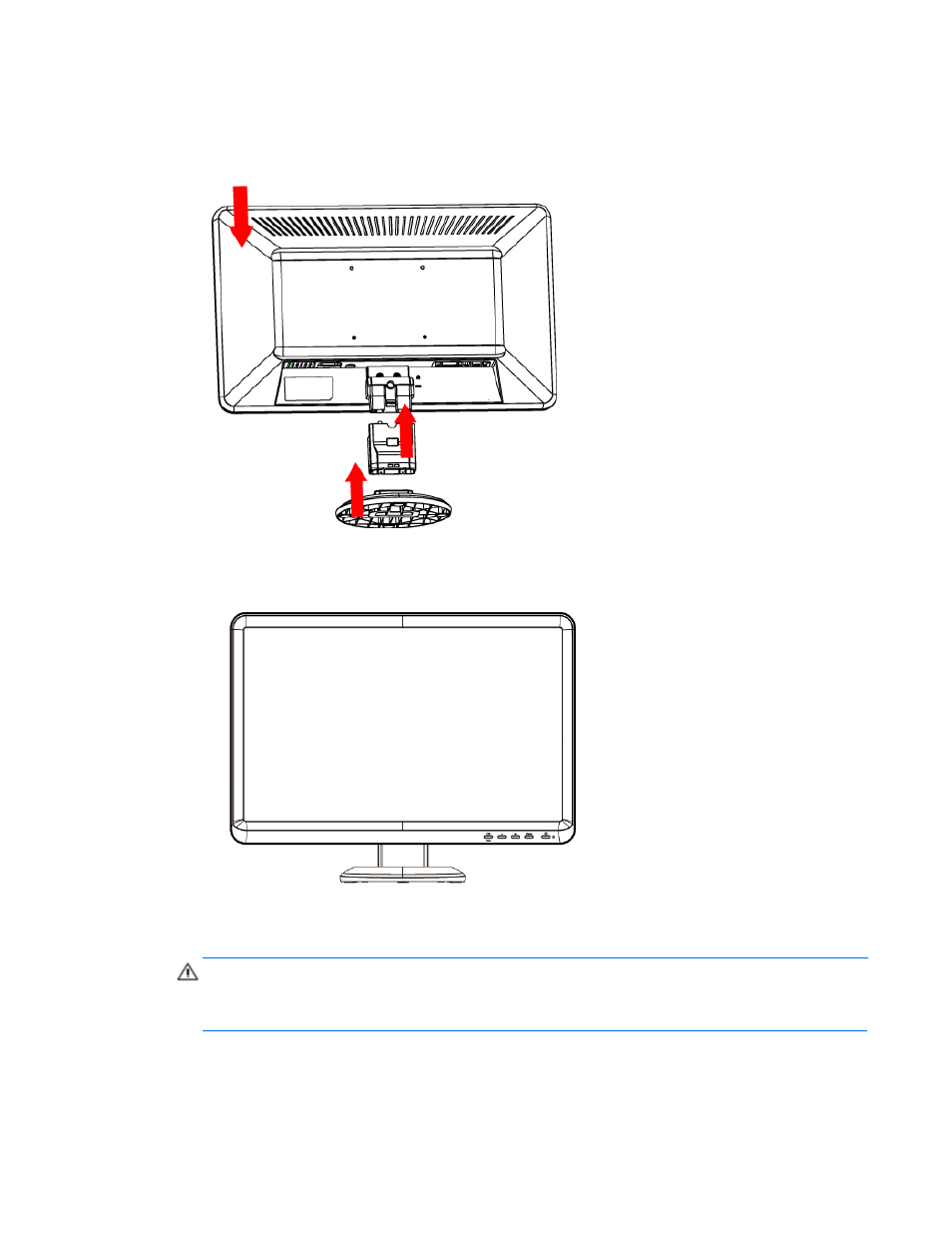

Figure 3-1
Installing the monitor column and stand
3.
Lift the monitor to an upright position and place on a flat, stable surface.
Figure 3-2
Monitor in upright position
Preparing the monitor for wall-mounting
1.
Check the stability of the wall-mounting fixture.
WARNING!
To reduce the risk of personal injury or of damage to the equipment, check that the
wall-mounting fixture is adequately installed and secured before attaching the monitor. Refer to the
instructions supplied with the wall-mounting fixture and check that it is capable of supporting the
monitor.
2.
Disconnect the power cable and any other cables from the monitor.
3.
Place the monitor face down on a flat, protected surface.
