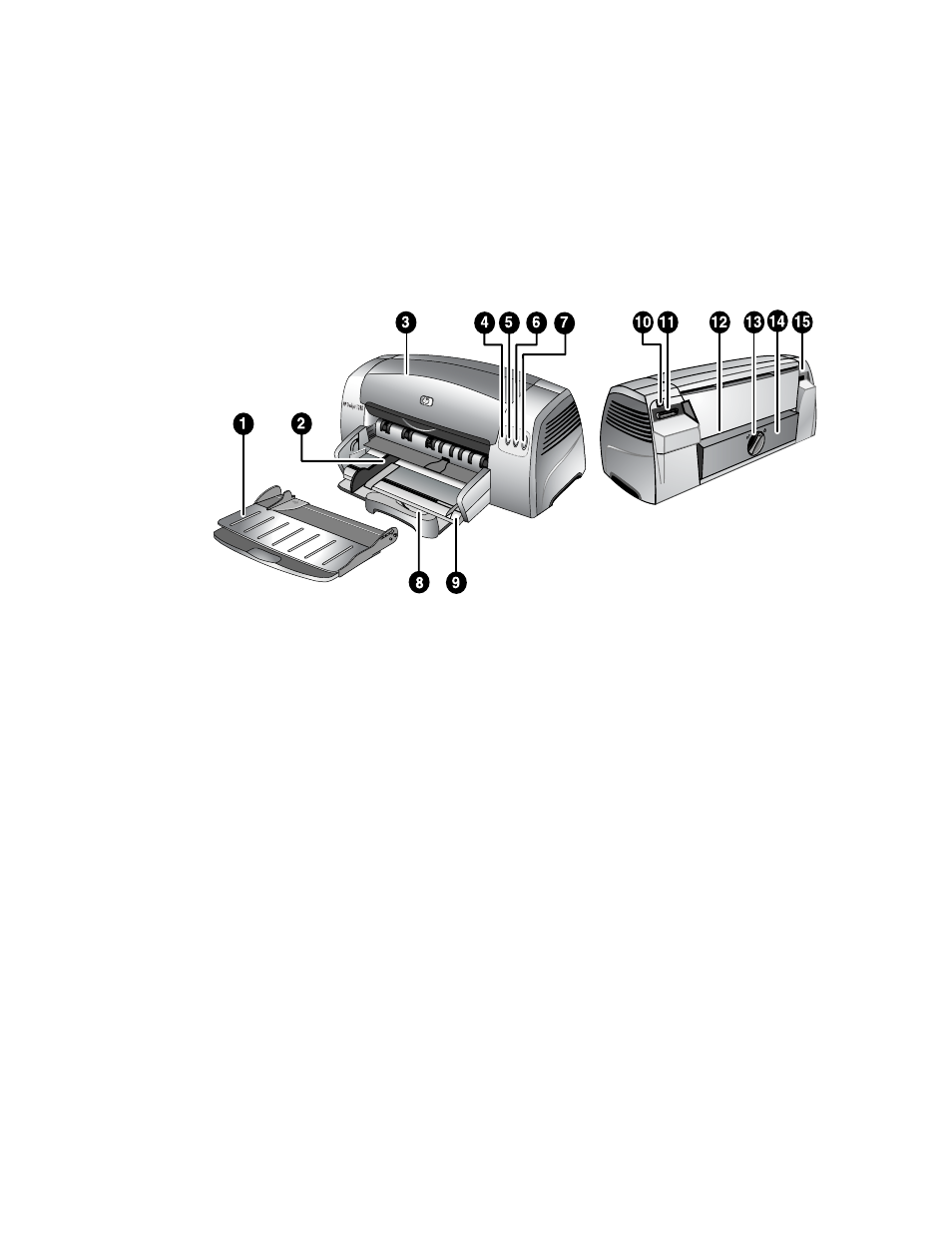

Understanding the printer parts and functions
1
Output tray – Collects the printed pages.
2
Paper guides – Guides the paper into the printer.
3
Access cover – Lets you access the print cartridges and jammed paper.
4
Print Cartridge light – Blinks when the access cover is open or a cartridge error occurs.
5
Cancel button – Cancels the current print job.
6
Resume button – Blinks while waiting for a printed page to dry. Press if you do not want
to wait.
7
Power button – Turns the power off and on.
8
Postcard guide – Extends to guide short media into the printer.
9
Main paper tray – Holds up to 150 sheets of standard paper or 30 transparencies.
10
USB port – Connector for the Universal Serial Bus cable.
11
Parallel port – Connector for the parallel cable.
12
Rear manual feed – Feeds thicker paper that requires a straight paper path.
13
Removable panel knob – Turns counterclockwise to remove the rear panel, or clockwise
to lock it.
14
Removable panel – Lets you access jammed paper.
15
Power input – Connector for the power cable.
