3

Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.

Identifying Rear Connectors

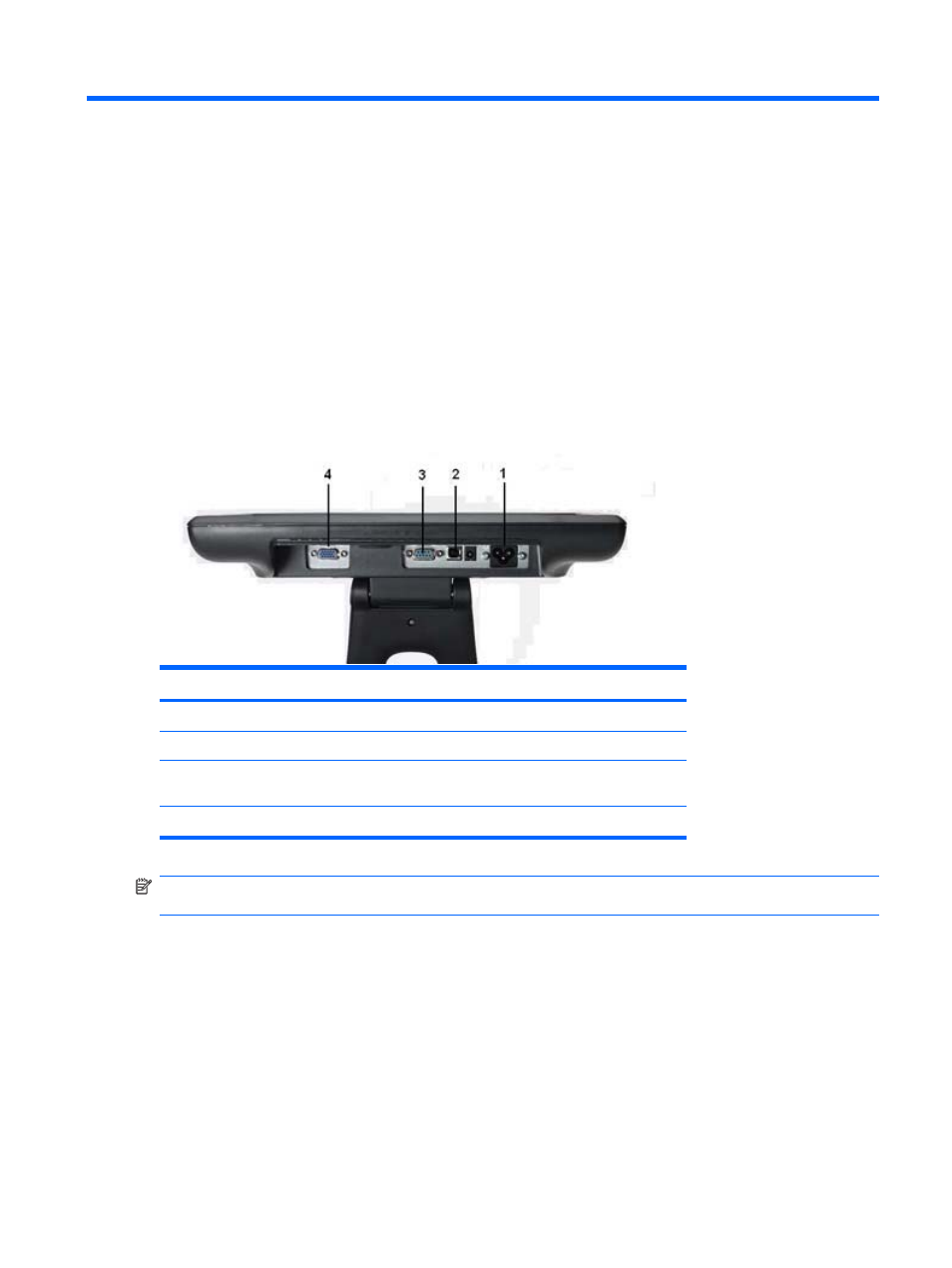

Figure 3-1

Rear Connectors

Connector

Function

1

AC Power

Connects the AC power cord to the monitor.

2

USB

Connects the touchscreen USB cable to the monitor.

3

Serial

Connects the touchscreen serial cable to the monitor (not
available on L5009tm model).

4

VGA

Connects the VGA video cable to the monitor.

NOTE:

A +12VDC input jack is available on the connector panel of the L5009tm monitor. This jack

accepts an external DC power brick (not included with the monitor).

ENWW

Identifying Rear Connectors

5
