Fabric Zoning
152 High Availability Fabric Manager User Guide
11. To remove members from the zone, select them and click the << Remove
button. To remove all of the members, click Clear Zone at the bottom of the
Members in zone area. Click Yes when the Warning dialog box displays.
12. To accept the zone, click OK. The New Zone dialog box closes and the new
zone displays in the Zones tab of the Zoning Library dialog box.
Zone Sets
A zone set is a collection of zones that you can activate or deactivate as a single
entity across all managed products in a multiswitch fabric or on one product in a
single switch fabric. Members in each zone are identified using the steps in
“
Configure Zones and Zone Sets ” on page 148.
For specifications on the number of zones in a zone set and the number of zone
sets that you can configure in the HAFM library, refer to “
Zoning Configuration
Limits for High Availability Fabric Manager ” on page 146.
1. Open the Zoning Library by choosing Configure > Zoning Library.
2. The Zone Sets tab should display as the default. If not, click the Zone Sets
tab.
3. Choose File > New. The New Zone Set dialog box displays ( Figure 64 ).

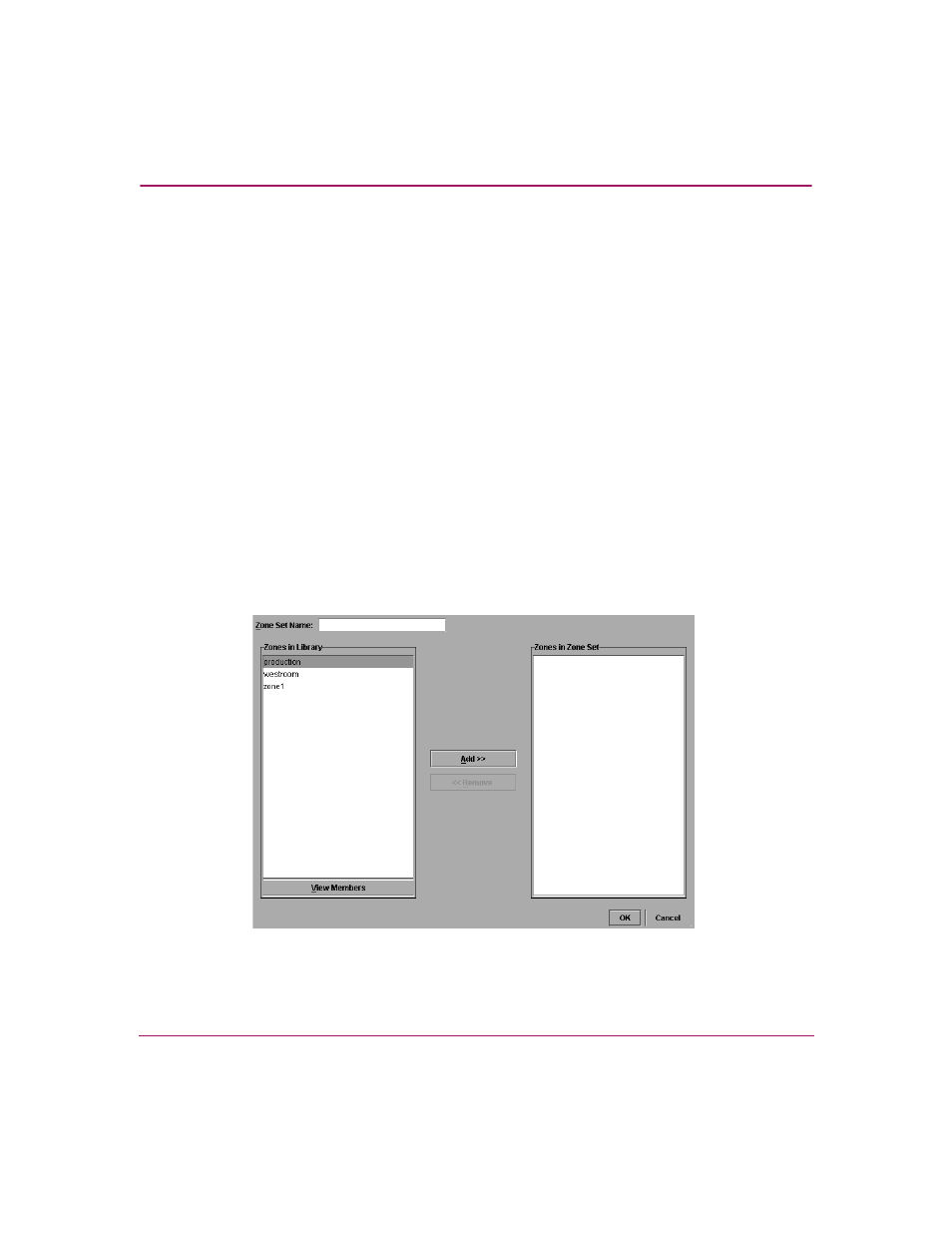

Figure 64: New Zone Set dialog box
