4 Setting Up and Using the Scanner
Follow the steps below to connect and get the scanner up and communicating with its host.
1. Configure the Base Station starting on this page.
2. Charge the Batteries (refer to Charging the Batteries on page 13 ).
3. Link to the Base Station (refer to Linking the Reader on page 18 ).
4. Select the Interface Type (refer to Selecting the Interface Type on page 19 ).
5. Configure the scanner as described in Programming the Scanner on page 21 (optional,
depends on settings needed).
Positioning the Base Station
The base station/charger may be set up in desk application to hold the reader in two different
positions, either a horizontal or standing position, in order to provide the most comfortable use
depending on needs.

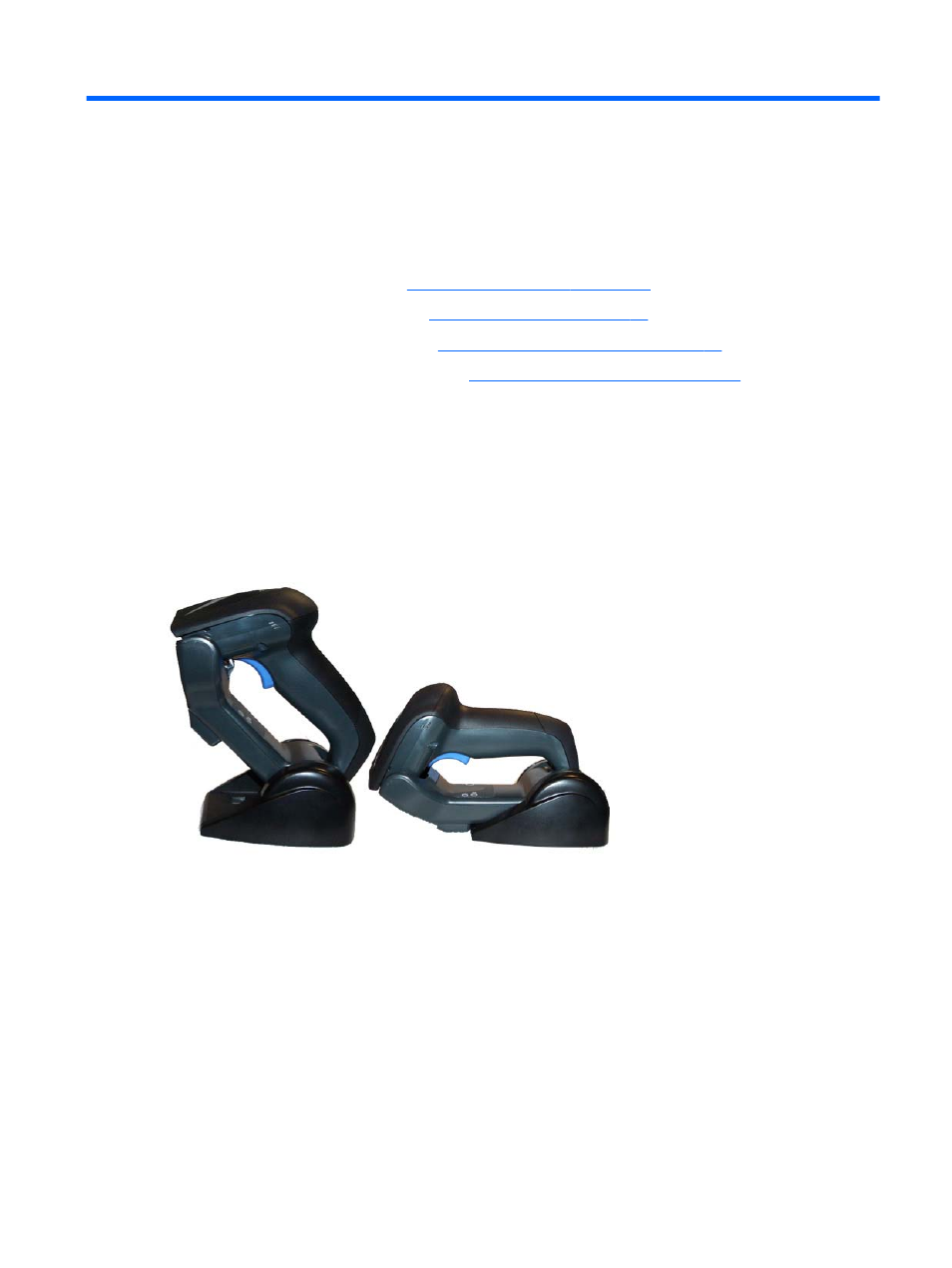

Figure 4-1 Positioning the Base Station
Changing the Base Station Position
The base station is configured by installing one of two sets of mechanical parts that come with the
cordless kit. The default mounts provide three options: vertical (wall) mounting, standing (45°), or
horizontal mounting with a higher mechanical retention of the scanner. Use the other mounts only for
horizontal mounting, with lower retention of the scanner. The different parts may be interchanged to
customize retention preferences.
