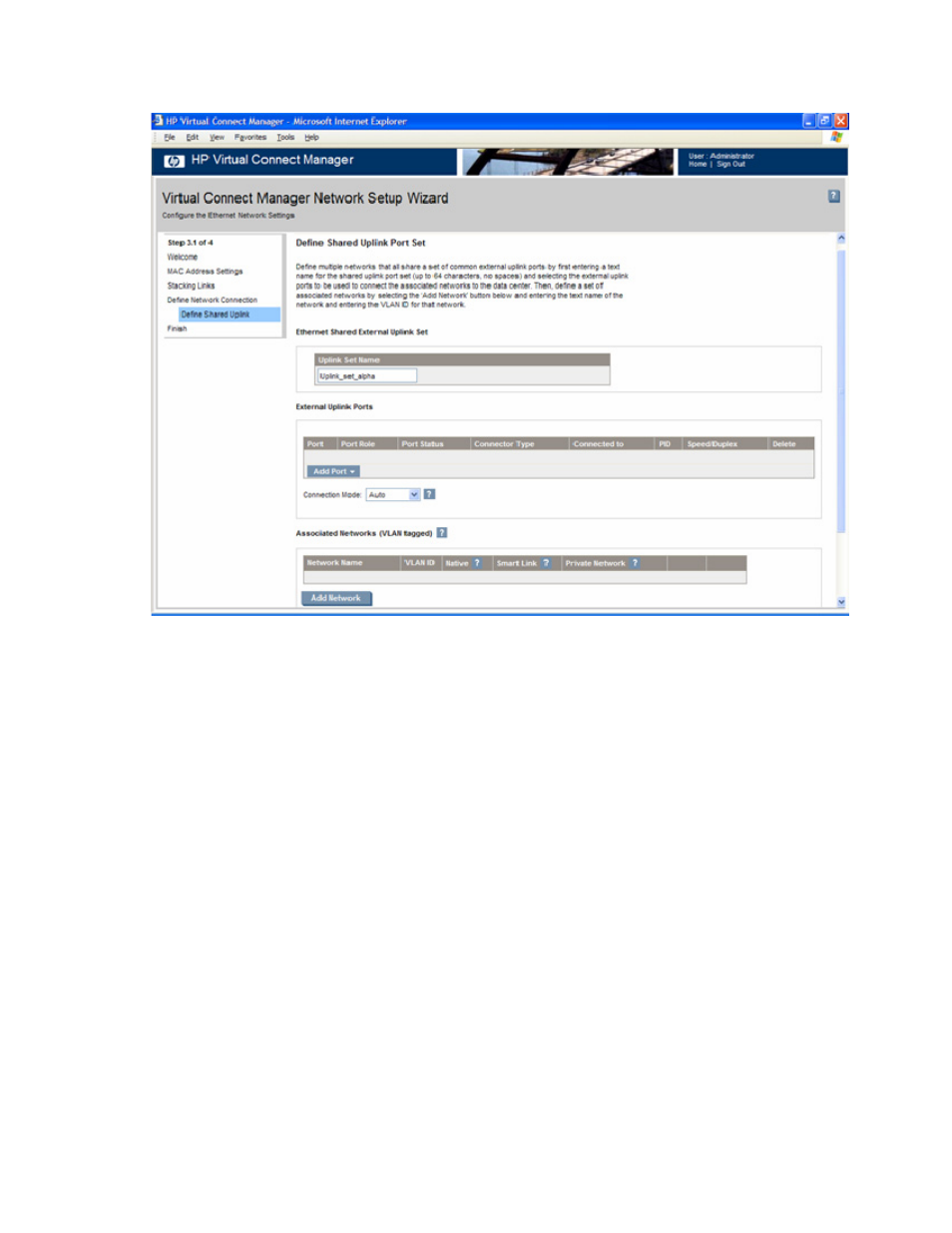

Define Shared Uplink Port Set
To define multiple networks that share a common set of external uplink ports:
1. Enter an overall name for the set of shared uplinks (up to 64 characters, no spaces).
2. From the Add Port drop-down menu, select the external uplink ports that will carry these networks.
3. Click Add Network to define the name and VLAN identifier of each network to use these shared
uplinks.
For additional information, see "Shared uplink sets and VLAN tagging (on page
120 )."
a. To use native VLAN, select the box under Native. Only one VLAN can be designated as the
native VLAN.
b. To use Smart Link, select the box under Smart Link (" Smart Link " on page 102 ).
c. To designate as a private network, select the box under Private Network (" Private Networks " on
page 102 ).
4. Click Apply.
For additional information, see "Define New Shared Uplink Set screen (on page 121 )."
Finish network wizard
When the Network Setup Wizard completes, external Fibre Channel connectivity can be configured (if
applicable) or server profiles can be defined and associated with server blades.
To establish external Fibre Channel connectivity:
1. Be sure the Start the Fibre Channel Wizard checkbox is selected.
