Component identification 23
HP 4Gb Fibre Channel Module components and
LEDs

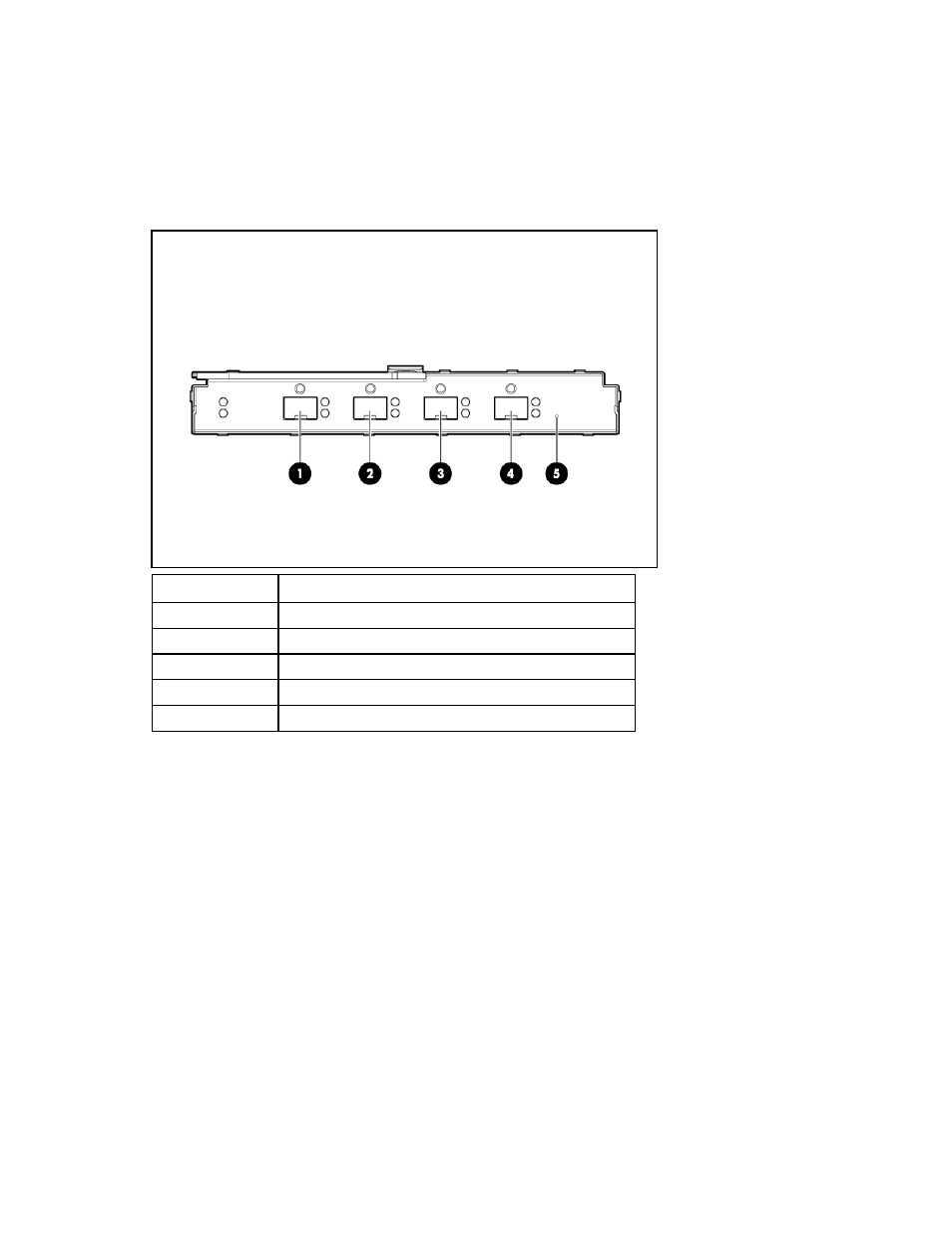

HP 4Gb VC-FC Module components
Item Description
1 SFP 1/2/4 Gb port 1
2 SFP 1/2/4 Gb port 2
3 SFP 1/2/4 Gb port 3
4 SFP 1/2/4 Gb port 4
5 Reset button (recessed)
In the default configuration (before a Virtual Connect domain is created), all 1/2/4 Gb capable uplink
ports are grouped into an uplink port group and dynamically distribute connectivity from all 16 server
blades.
