Domain management 168
3. Click Delete Domain. A domain name verification window is displayed.
4. Enter the name of the domain to be deleted. This should be the name of the domain you are
currently logged into, displayed in the Virtual Connect Domain Name box on the Domain Settings
(Domain Configuration) screen (on page
166 ).
5. Click OK.

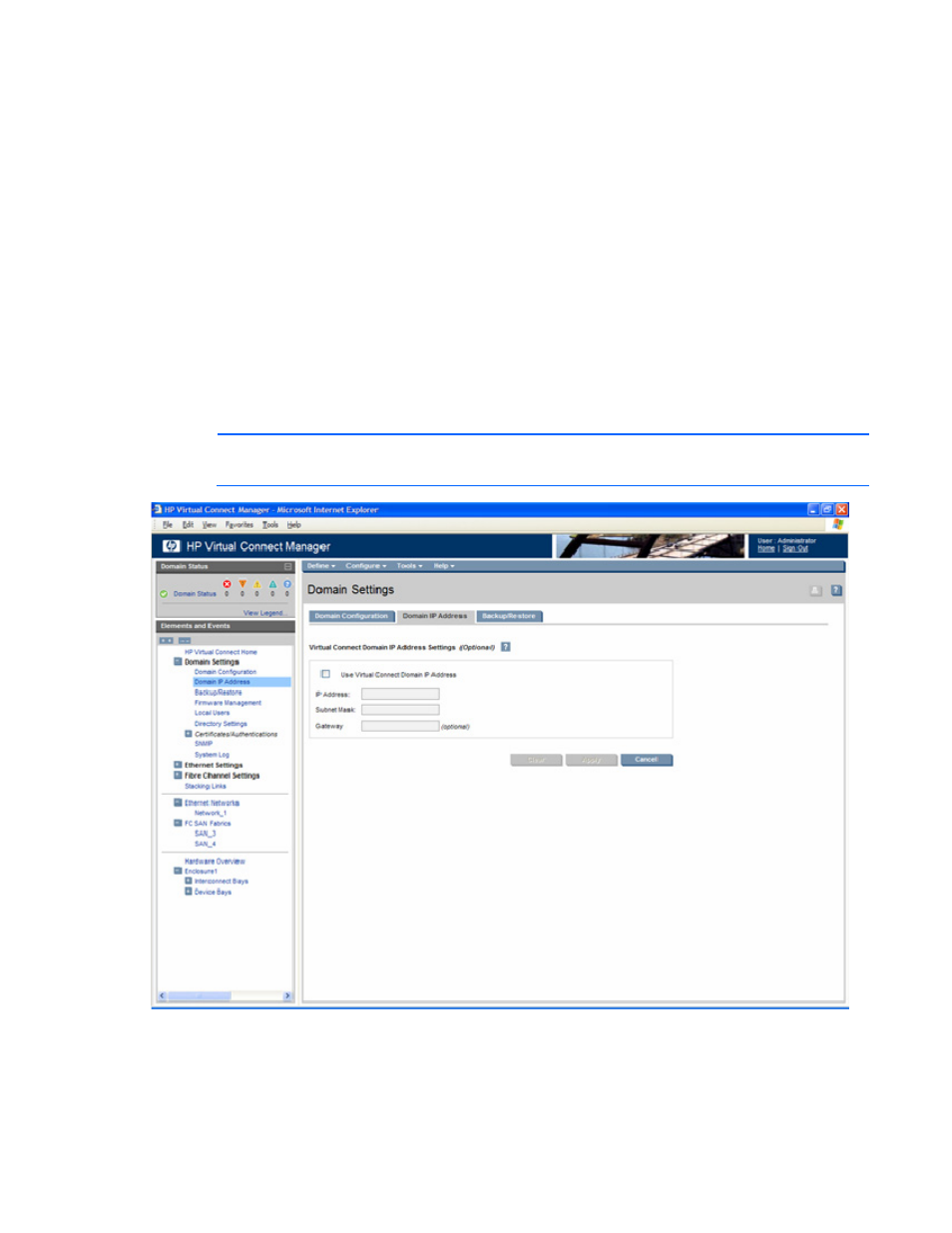

Domain Settings (Domain IP Address) screen
Use this screen to set a domain IP address for the Virtual Connect domain.
The optional domain IP address setting allows for a consistent IP address that is independent of the
interconnect module on which it is running. If set, this IP address must be unique within the network and
must be different than the IP address of the module itself. If this IP address is not set, the VC Manager can
still be reached through the IP address of the host Virtual Connect Ethernet module.
To use an optional domain IP address, select the Use Domain IP address checkbox, and then enter the IP
Address, Subnet Mask, and Default Gateway.
NOTE: Even if a domain IP address is provided, the normal IP address assigned to the
interconnect bay can still be used.
The following table describes the available actions in the Domain Settings (Domain IP Address) screen.
Clicking another link in the pull-down menu or left navigation window causes current edits that have not
been applied to be lost.
