Component identification 16

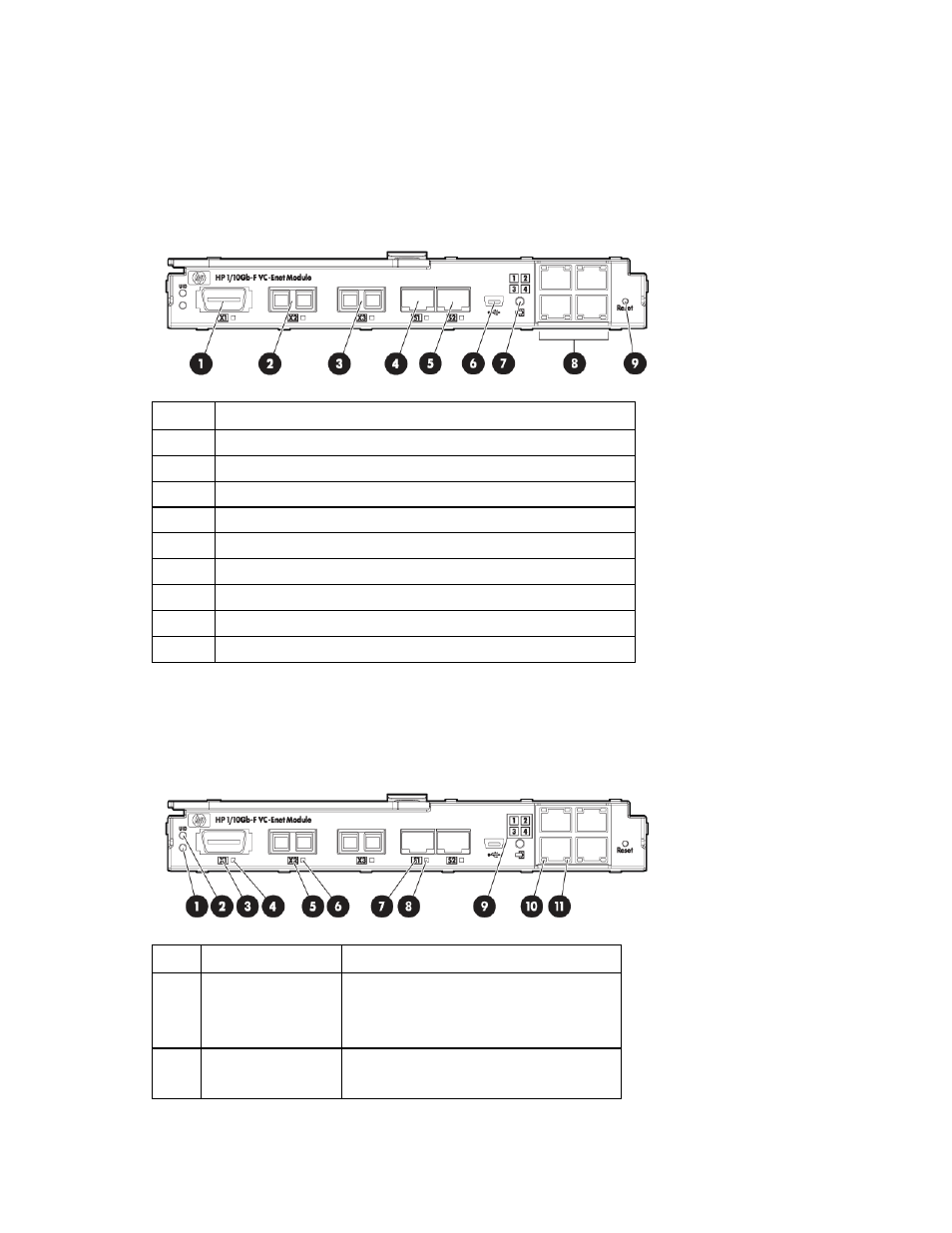

HP 1/10Gb-F VC-Enet Module components and
LEDs
HP 1/10Gb-F VC-Enet Module components
Item Description
1 Port X1 (10GBASE-CX4)
2 Port X2 XFP connector*
3 Port X3 XFP connector*
4 Port S1 SFP connector**
5 Port S2 SFP connector**
6 USB 2.0 mini AB connector (covered)
7 Next button
8 Ports 1-4 (10/100/1000BASE-T)
9 Reset button (recessed)
* Supports 10GBASE-SR-XFP and 10GBASE-LR-XFP pluggable optical transceiver modules
** Supports 1000BASE-T-SFP and 1000BASE-SX-SFP pluggable optical transceiver modules
HP 1/10Gb-F VC-Enet Module LEDs
Item LED description Status
1 Module status Green = Normal operation
Amber = Degraded condition
Off = Power off
2 Module locator (UID) Blue = Module ID selected
Off = Module ID not selected
