Storage management 131

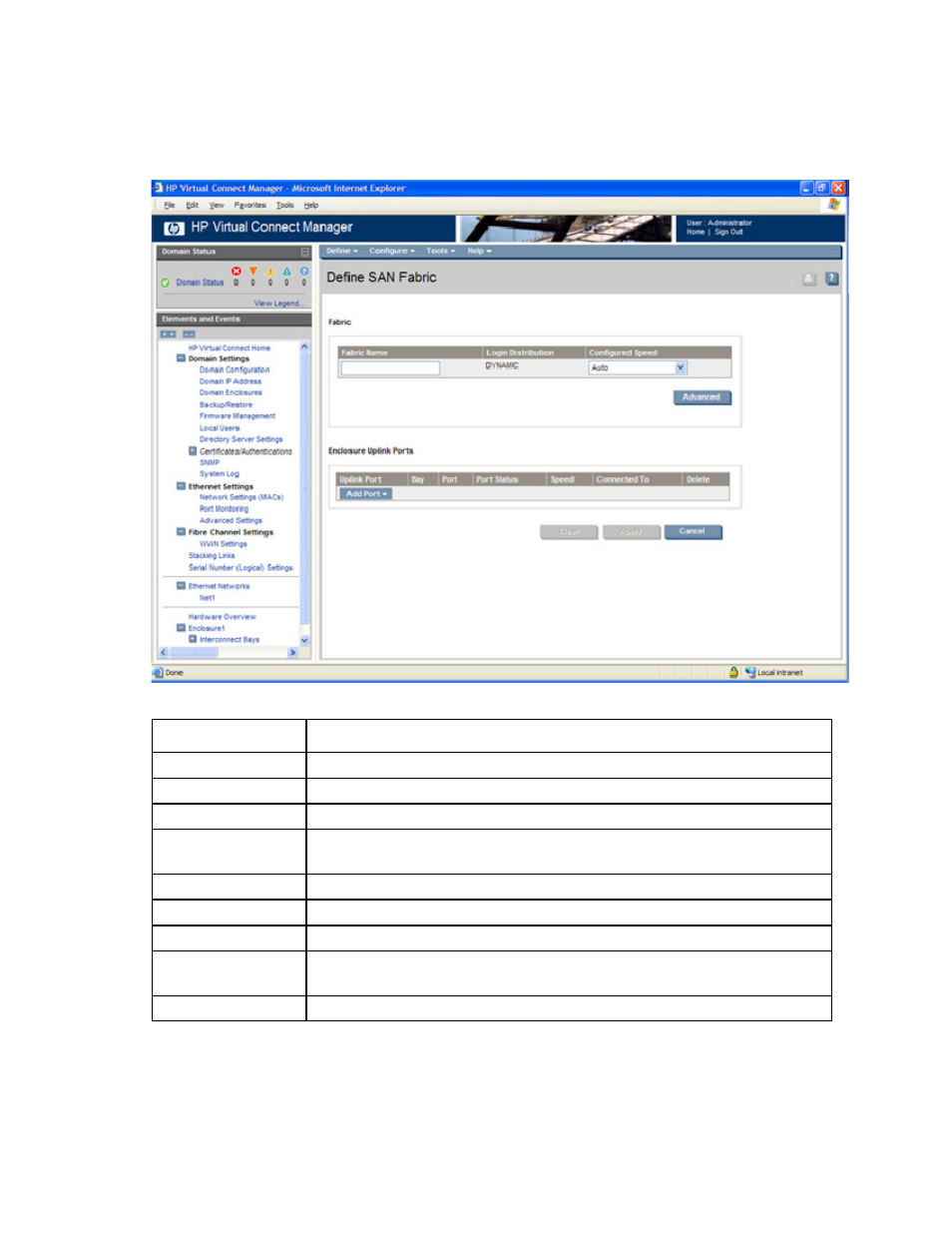

Define SAN Fabric screen
To define a SAN fabric, select the Define SAN Fabric link on the Home page, or click Define SAN Fabric
on the SAN Fabrics screen.
The following table describes the columns and fields within the Define SAN Fabric screen.
Column Description
Fabric Name Descriptive name for the virtual fabric. Do not use spaces.
Configured Speed Speed of the uplink port(s)
Uplink Port Number of the enclosure uplink port
Bay Enclosure bay selected for the SAN fabric. Only uplinks on the same bay can be in
the same SAN fabric.
Port Port number
Port Status Status of the uplink port
Speed Port speed for the uplink ports in the fabric
Connected To WWN of the principal switch on the SAN fabric that this port is connected to on the
other end.
Delete When the X in the column is bold, this line item is eligible for deletion.
The following table describes the available actions in the Define SAN Fabric screen. Clicking another link
in the pull-down menu or left navigation window causes the current edits that have not been applied to be
lost.
