Network management 127
Shared Uplink Sets (External Connections) screen
To access this screen, click the Shared Uplink Sets link in the left VC Manager navigation window.
This summary screen provides an overview of external shared uplink connections and access to the
Associated Networks tab to view the mapping of networks to those uplinks. This screen is only applicable
if multiple networks are being connected over a single external uplink set by the use of VLAN tagging.

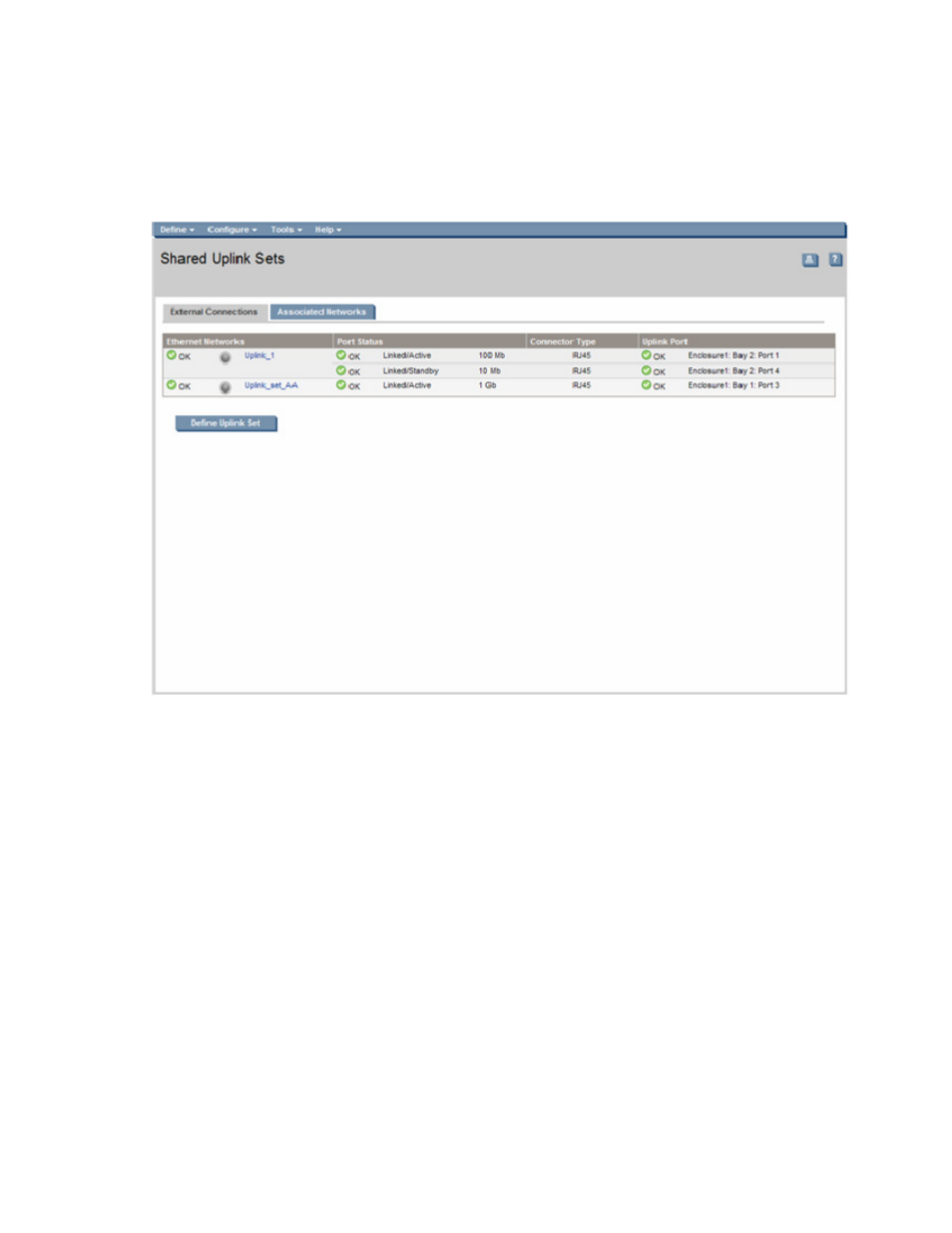

Shared Uplink Sets (Associated Networks) screen
To access this screen, click the Shared Uplink Sets link in the left VC Manager navigation window, and
then click the Associated Networks tab.
