Introduction
1-2
HP NC310F PCI-X Gigabit Server Adapter User Guide
LED Indicator
The adapter has a single fiber LC port and LED indicator for activity/link.

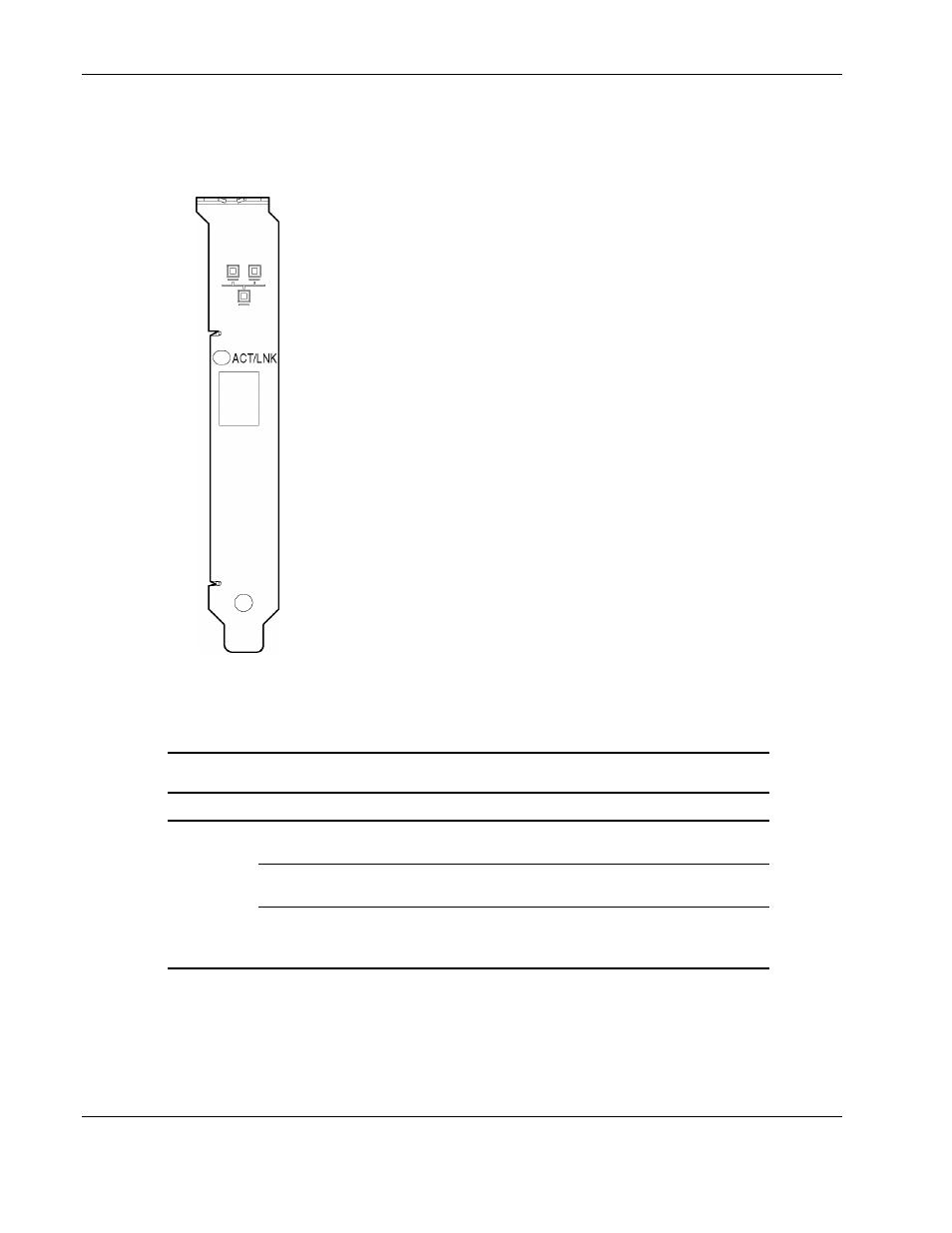

Figure 1-1: NC310F PCI-X Gigabit Server Adapter
The HP NC310F PCI-X Gigabit Server Adapter LED indicator operates as described in the
following table.
Table 1-1: LED Operation for the HP NC310F PCI-X Gigabit Server Adapter
LED
Status
Description
On
When green, link to the adapter is established. The adapter is
receiving power and the cable connection is secure.
Off
No link to the adapter is established. The adapter is not receiving
power or the cable connection is not established.
ACT/LNK
Flashing
The adapter is receiving direct packets or broadcast packets for
this specific adapter. When sending packets, the ACT/LNK light is
also flashing due to network acknowledgements received.
