Applications:
Remote control of stage monitors, remote control of microphones in a church or large meeting room,
remote control of sound in a theme park or banquet facility. Dedicated 8-channel limiter for speaker pro-
tection. For detailed applications, request the VCM-88/88E Product Applications Note. Or, download it
directly from the Ashly Audio Web Site.
General Specifications VCM-88
INPUT TYPE: Euroblock
INPUT IMPEDANCE: 20k ohm balanced, 10k ohm unbalanced
MAX INPUT LEVEL: +23dBu
OUTPUT TYPE: Euroblock
OUTPUT IMPEDANCE: 200 ohm pseudo balanced, 100 ohm unbalanced
MAX OUTPUT LEVEL: +22dBu
NOMINAL GAIN: 0dB ± 0.5dB
GAIN RANGE: +20dB to -75dB
FREQUENCY RESPONSE: ± 0.2dB, 20Hz-20kHz
THD: < 0.05% @ 0dBu, 20Hz-20kHz
OUTPUT HUM AND NOISE: < -94dBu, 20Hz-20kHz unweighted
CROSSTALK: < -80dB @ 20Hz-20kHz
LIMITER THRESHOLD RANGE: -23dBu to +22dBu
LIMITER COMPRESSION RATIO: 10:1
DATA INPUT TYPE: 9-pin female D-Sub connector and 6 pin euroblock
DATA FORMAT: RS-232 using Protea System Software, AMX or Crestron Control, or MIDI
DC CONTROL INPUT TYPE: 12 position euroblock
DC CONTROL VOLTAGE: -4V to +15V provided for external 10k ohm potentiometers
SIZE: 19”L x 1.75”H x 6”D
POWER REQUIREMENTS: 100-125VAC, 50-60Hz, 18W (240V available)
SHIPPING WEIGHT: 9 lbs
RD-8/RW-8 SPECS:
FADER RANGE: +10dB to -75dB (master fader @ 0dB)
DATA/POWER CONNECTOR: Male XLR jack
MAX DATA CABLE LENGTH: 1500ft (24ga twisted pair)
DATA FORMAT: 9600 baud, 2Vp raised cosine
DATA CROSSTALK TO AUDIO: < -110dB along 1000ft of 150 ohm shielded cable
SIZE: 7.5”L x 3.5” H x 1.75”D
POWER REQUIREMENTS: Phantom powered by VCM-88E
SHIPPING WEIGHT: 3 lbs
Input connector may be internally selected as a single in/out patch point.

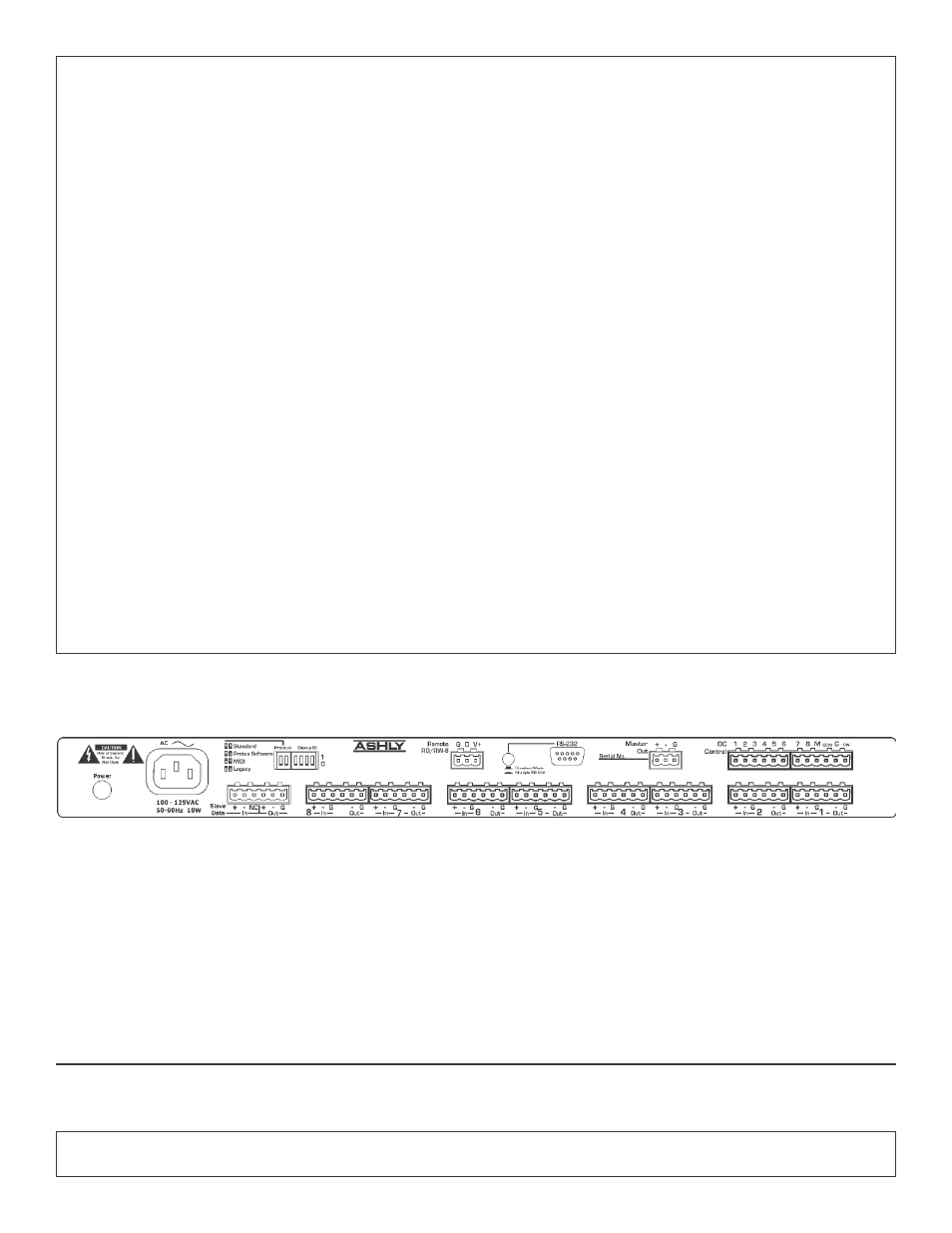

Rear Panel VCM-88E
