3. Place the optional HP Quick Release onto the back of the monitor. Line up the holes on the HP
Quick Release with the mounting holes on the back of the monitor.

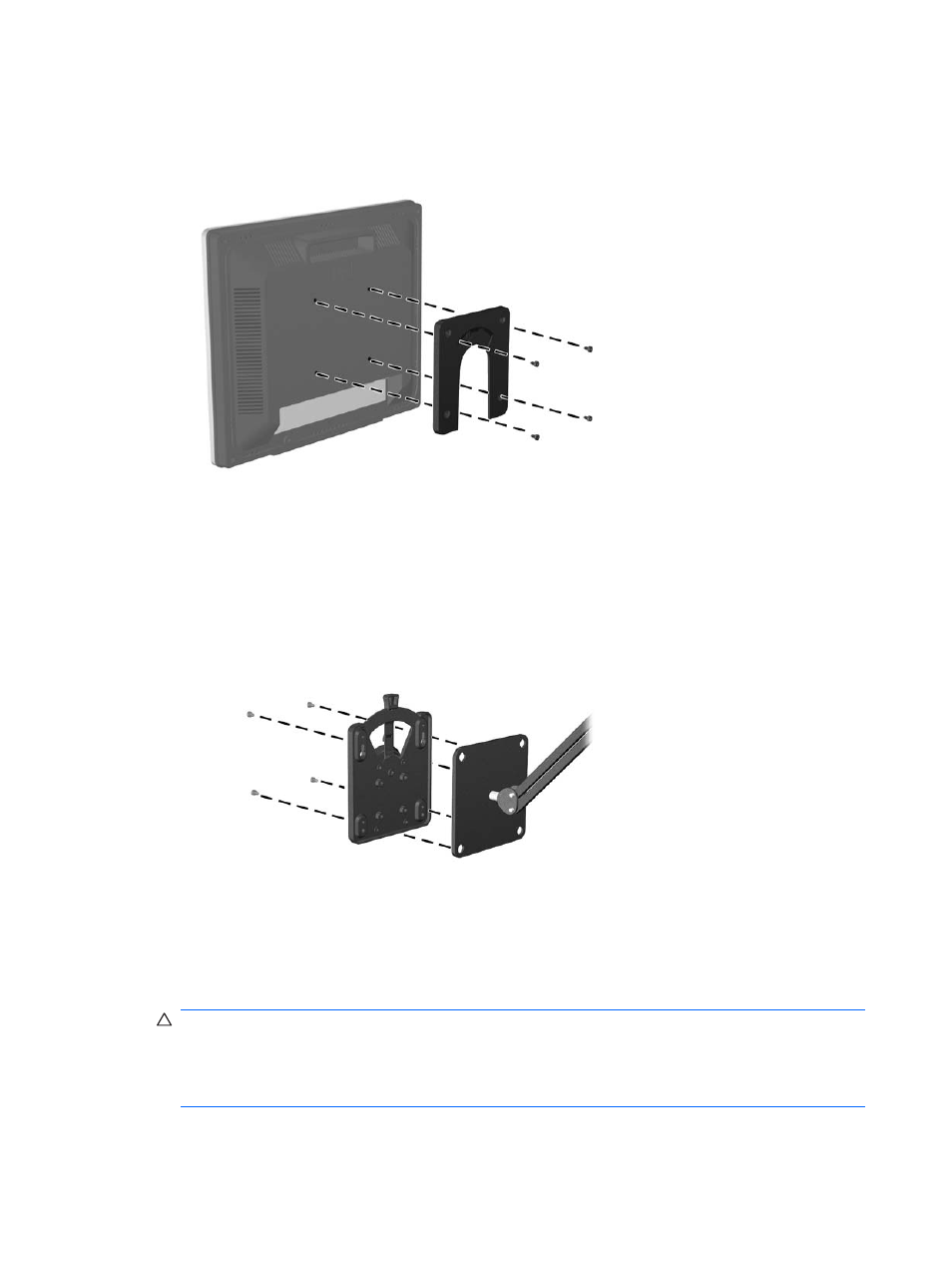

Figure 3-18 Mounting the HP Quick Release
4. Insert four 10mm screws into the mounting holes and tighten.
5. Mount the HP Quick Release to a swing arm or other mounting fixture using the four screws
removed from the back of the monitor in the previous step.
Figure 3-19 Installing the HP Quick Release
CAUTION: The HP Quick Release is designed to support a maximum of up to 24 lbs. (10.9 kg).
If you are mounting to a wall, HP recommends that you consult with a qualified engineering,
architectural, or construction professional to determine the appropriate type and quantity of
mounting fasteners required for your application and to ensure that the mounting solution is
properly installed to support applied loads.
