Using discovery protocol 33
Configuring Discovery Protocols
From the Discovery Protocols tab, you can configure CDP and LLDP settings for the selected team. These
advanced teaming features are disabled unless a valid ProLiant Essentials Intelligent Networking Pack
license is installed on the system. For more information on how to install a license, refer to "Installing an
Intelligent Networking Pack license."
To access the Discovery Protocols tab for a team:
1. On the NCU main window, select a team.
2. Click Properties to display the Team Properties window.

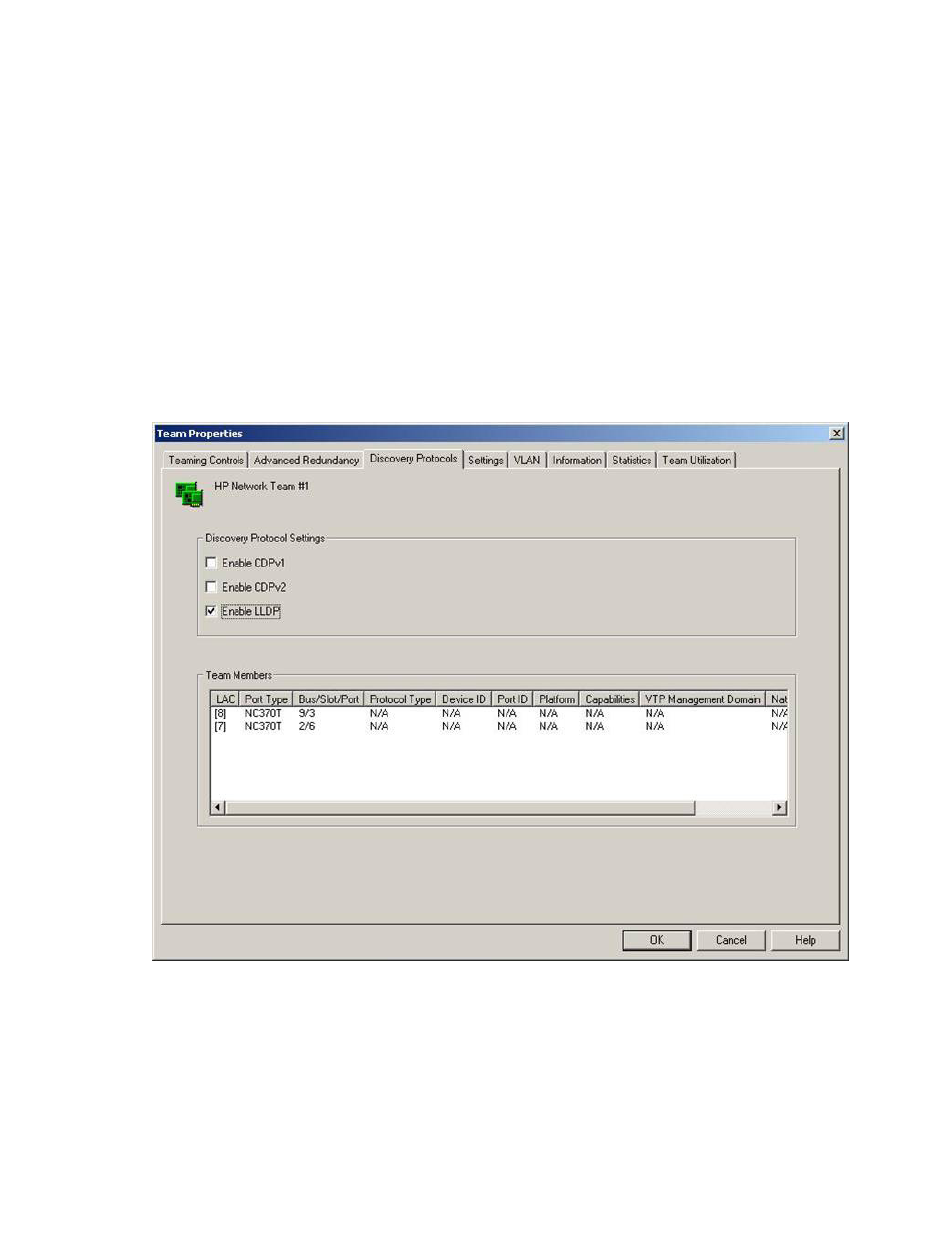

3. Select the Discovery Protocols tab to display the Team Discovery Protocols tab.
4. In the Discovery Protocol Settings group select Enable CDPv1, Enable CDPv2, or LLDP to set the CDP
version or LLDP for which to listen.
5. Click OK to accept the settings and return to the NCU main window.
6. Click OK on the NCU main window to apply the settings.
Team Members—Team members are listed in order by Group ID and then by Team Member ID.
• LAC—The name of the local area connection.
• Port Type—NC model number of the port.
• Bus/Slot/Port. The bus, slot, and port location of the team member. A port location of 1 is not
reported and is left blank. The Team Members Bus/Slot/Port category changes to Bus/IO Bay/Port
for HP BladeSystem servers.
