Ashly 2400 User Manual
Page 2
� � � �
Ashly Audio Inc., 847 Holt Road, Webster, NY 14580-9103
Toll Free (800) 828-6308, Tel: (585) 872-0010, Fax: (585) 872-0739
www.ashly.com, e-mail: [email protected]
Ashly manufactures a complete and comprehensive line of Analog and Digital Signal Processors, Power
Amplifiers, Mixers, and Amplifier Input Options. Please call, write or visit our web site for information on
any of these Ashly Products.

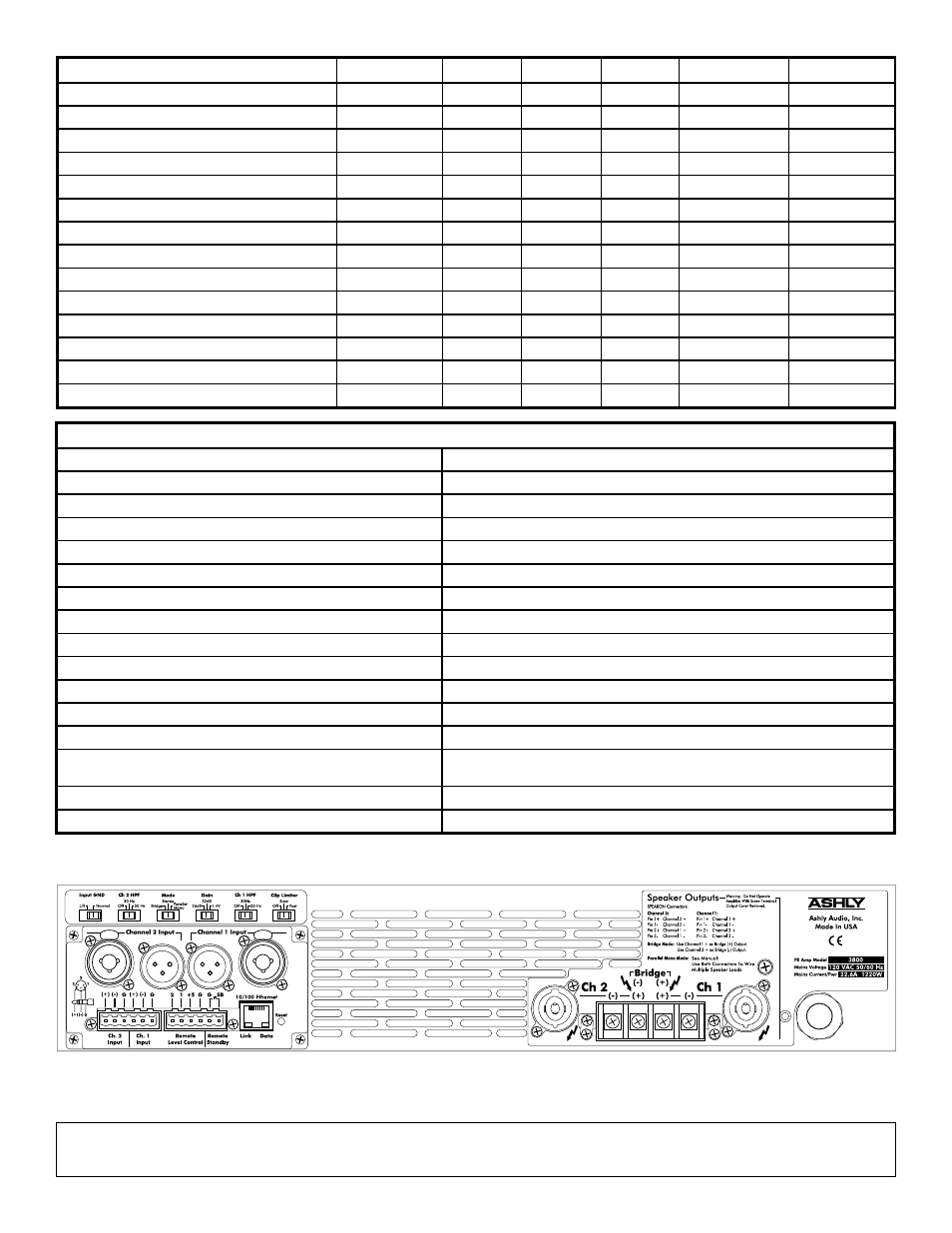

Rear Panel 800 and 1200 (no screw terminals on 1800, 2400, 3000, 3800)
PE-Series Specifications
800
1200
1800
2400
3000
3800
Power Output
Stereo Mode, both channels driven
8 ohms, 20 Hz - 20 kHz, 1% THD
200W
300W
500W
700W
900W
1100W
4 ohms, 20 Hz - 20 kHz, 1% THD
400W
600W
900W
1200W
1500W
1900W
Bridged Mono Mode
8 ohms, 20 Hz - 20 kHz, 1% THD
800W
1200W
1800W
2400W
3000W
3800W
Parallel Mono Mode
2 ohms, 20 Hz - 20 kHz, 1% THD
800W
1300W
1800W
2400W
3000W
3800W
70V
nr
nr
nr
1200W
1500W
1700W
Power Requirements (1/8 Power)
420W
640W
6112W
790W
1010W
1220W
Signal to Noise 20 Hz-20 kHz, unweighted
>98 dB
>105 dB
>108 dB
>110 dB
>111 dB
>112 dB
Output Circuitry [Bipolar] Class
AB
AB
H
H
H
H
Power Cable Connector
15A Edison
20A
20A
20A
30A Twistlock 30A Twistlock
Weight lbs./ kg.
22/9.98
22/9.98
23/10.43 23/10.43
24/10.89
24/10.89
PE-Series Specifications (All)
Distortion (SMPTE, typical)
<.01% (8Ω load, 10dB below rated power)
Distortion (THD+N, typical)
<.01% (8Ω load, 10dB below rated power, 20Hz-10 kHz)
Frequency Response
20 Hz - 20 kHz, +/- 0.15 dB
Damping Factor - 8 ohm load, < 1 kHz
> 400
Input Impedance
20 kΩ, balanced
Maximum Input Level:
+21 dBu
Cooling
temperature dependent speed-controlled axial fan
Control Network
onboard, compatible with std 100MB Ethernet hardware
Front Panel Indicators (Per channel)
Clip, -6 dB, -12 dB, -18 dB, Temp, Output current.
Overall
pwr, stdby, protect, bridged mono, parallel mono, comm
Attenuators
Per channel: front panel, software, offset and remote
Input Connectors, each channel
XLR female/TRS, Euroblock, XLR male (looping)
Output connectors, each channel
Speakon, screw terminals (Model 800 and 1200 only)
Amplifier Protection
inrush current limitation, temperature monitoring heat-sinks,
output DC, power transistor, SOA, output over-current, mains fuses
Load Protection
Adjustable clip limiter
Dimensions
19”W x 3.5”H x 15.5”D (483mmW x 88.9mmH x 394mmD)
