5
Multiple Displays
Connecting Your Monitor(s)
The RADEON™ 9000 PRO provides hardware
support for one VGA monitor and one flat panel
monitor, or two VGA monitors using a DVI-I-to-
VGA adapter*. It also provides TV Output via an
S-Video out or a Composite out connector.
Plug the monitor cable into your card (if you are
running multiple monitors, connect their cables to the
appropriate connectors), then turn on the PC and
monitor(s).

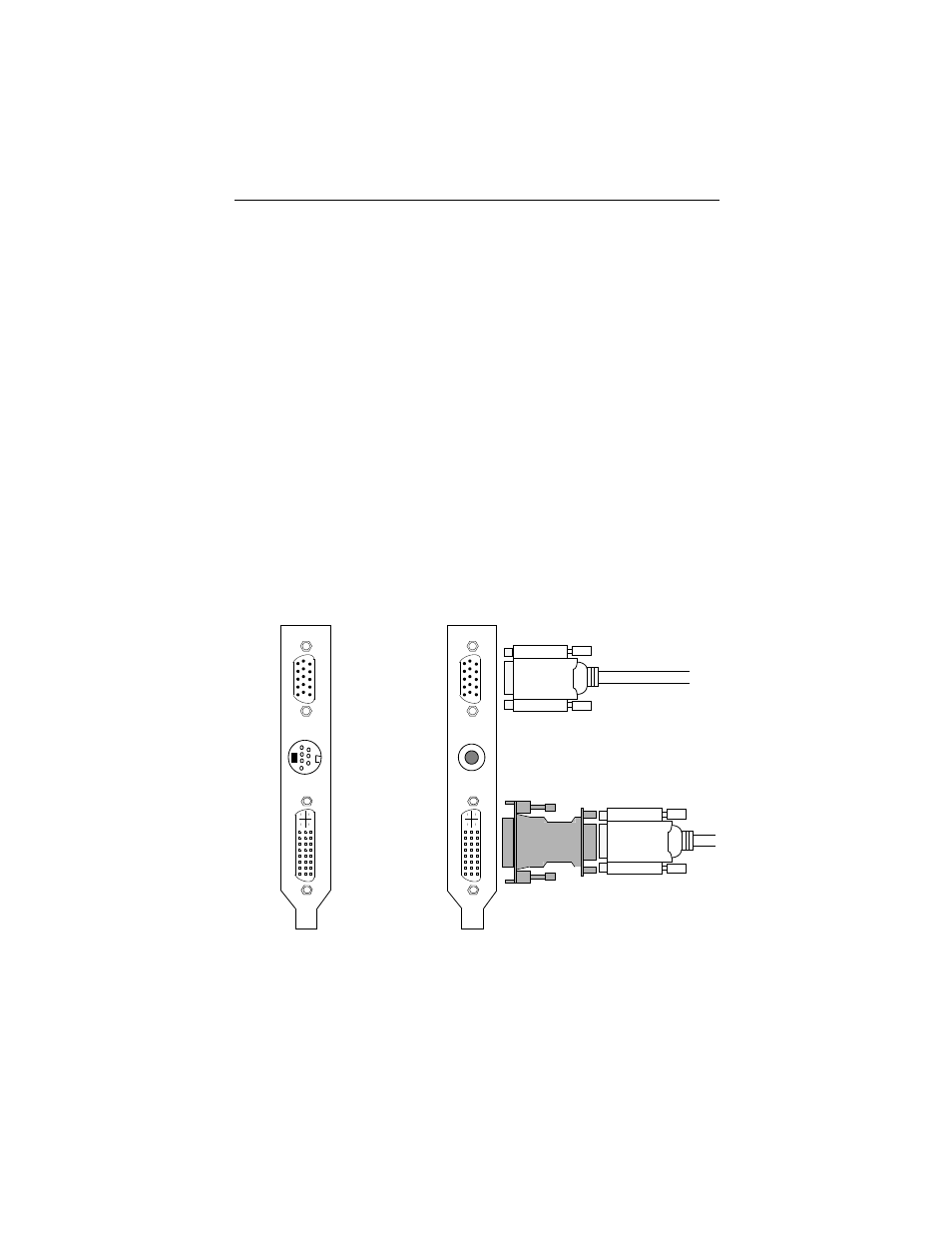

To connect a flat panel directly to your card, use the
DVI-I connector. To connect a VGA monitor to the
DVI-I connector, plug a DVI-I-to-VGA adapter* into
the DVI-I connector, then plug your monitor cable
into the adapter*, as shown below.
When you use multiple monitors with your card, one
monitor will always be Primary. Any additional
monitor(s) will be designated as Secondary.
S-VIDEO OUT
DVI-I-TO-VGA
ADAPTER
*
DVI-I
CONNECTOR
VGA
CONNECTOR
FROM
MONITOR
STANDARD VGA
S-VID OUT
DVI
MONITOR
CRT
CONNECTOR
COMP OUT
DVI
CRT
COMPOSITE OUT
VGA
CONNECTOR
FROM
MONITOR
TV OUTPUT
* point to www.ati.com for purchase
