Starting Windows
®
with TV Display Enabled
The TV screen may become scrambled during the
initial Windows
®
logo display. This is only a
temporary effect and your screen will be restored
within a few seconds.
During start up, your RADEON™ 9000 PRO will go
through a sequence of mode settings, during which
your TV display will remain blank. This process
takes only a few seconds and helps program the TV
display.
Using SCART Connectors for European TVs

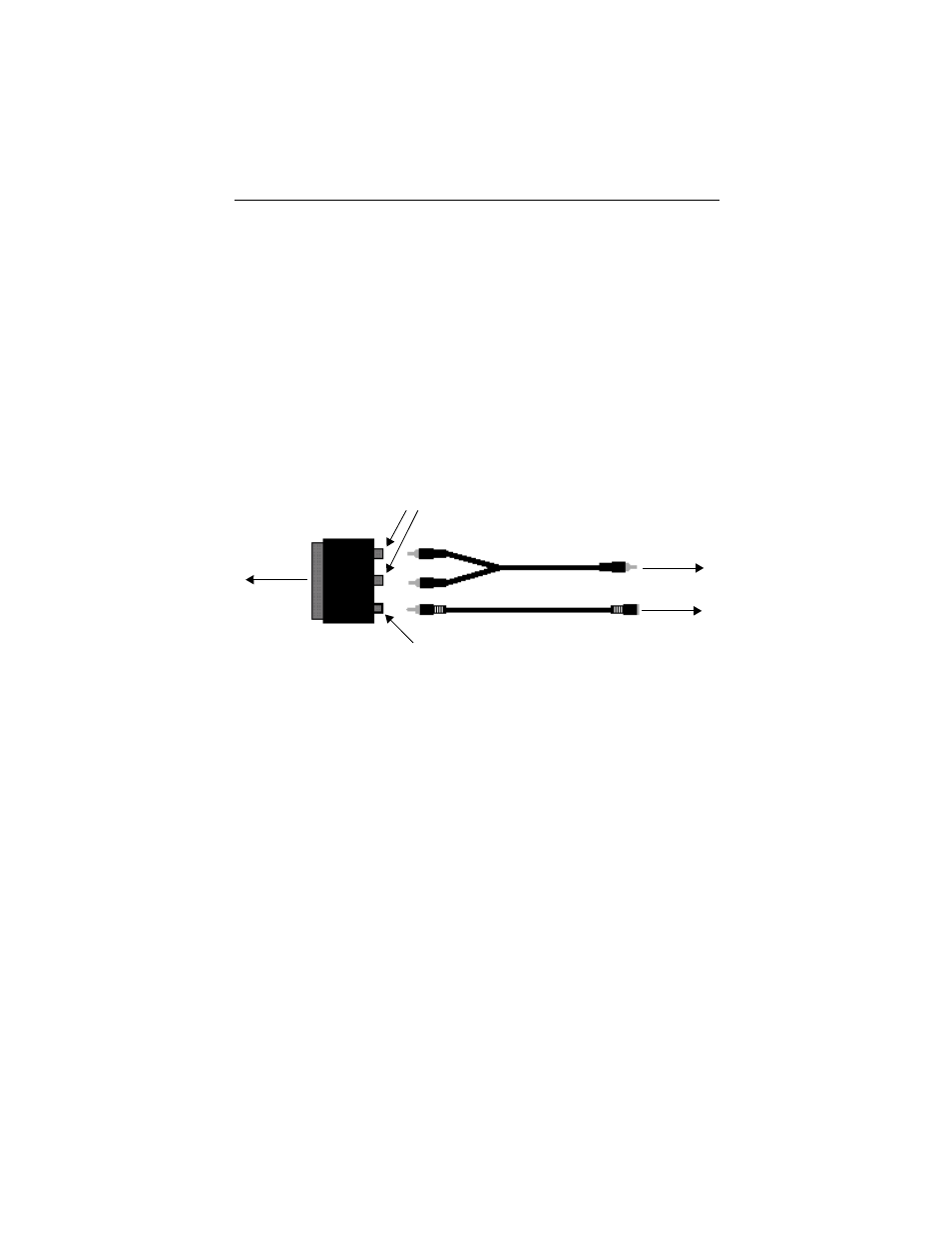

The above illustration shows how to connect your PC
to a European TV using the SCART.
The SCART connector supports only the Composite
video format, which means you will have to use an
S-Video-to-Composite video adapter cable if your
RADEON™ 9000 PRO supports the S-Video
connector.
If your European TV has S-Video In, you can use an
S-Video cable (available in most consumer electronic
stores) rather than the SCART connector if your
RADEON™ 9000 PRO supports the S-Video
connector.
The RADEON™ 9000 PRO with the Composite out
connector DOES NOT support connection to TVs
with S-Video In.
Audio In
(Right = red)
(Left = white)
SCART
CONNECTOR
Audio Cable
Composite Cable or
Connect to PC
Audio Out
Connect to PC
TV Output
Connect to
TV or VCR
Composite Video-In (yellow)
S-Video-to-Composite Adapter Cable
