card will support either an S-video connector or a
Composite connector. If your TV has cable input
only, you can connect your card to your TV through
your VCR or an RF modulator (available in most
electronics stores).
The RADEON™ 9000 PRO with the Composite out
connector DOES NOT support connection to TVs
with S-Video In.
Connecting Your TV Output to a TV or VCR
1 Turn off your PC and your TV (or VCR).
2 Determine if your TV (or VCR) has an S-Video
In or Composite In connection.
3 The TV Output on your RADEON™ 9000 PRO
will be either an S-Video connector or
Composite connector. Please attach an
appropriate cable to the TV Output on your card
(S-Video or Composite). Attach the other end of
the cable to your TV (or VCR). Refer to the

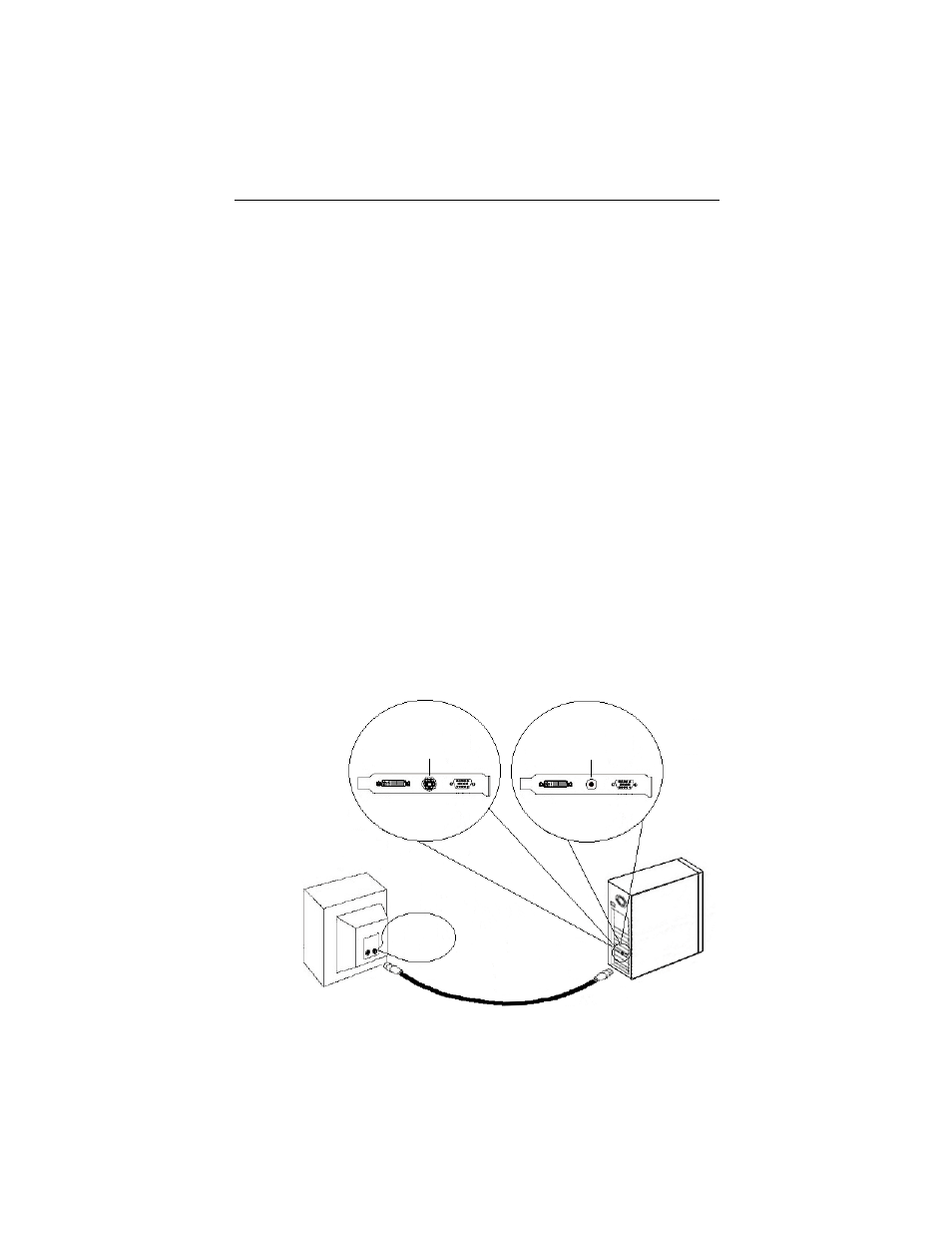

illustration for further help.
4 Turn on your PC and your TV (or VCR).
S-Video Out
TV or VCR
PC
S-Video In
OR
Composite In
S-Video Cable or
OR
S-Video-to-Composite Adapter
NOTE: Newer TVs may have
the Video Input on the front
panel
Composite Out
Composite Cable
