IV. Hardware Setup
IV
. Hardware Setup
AP 3000 Hardware Reference Guide

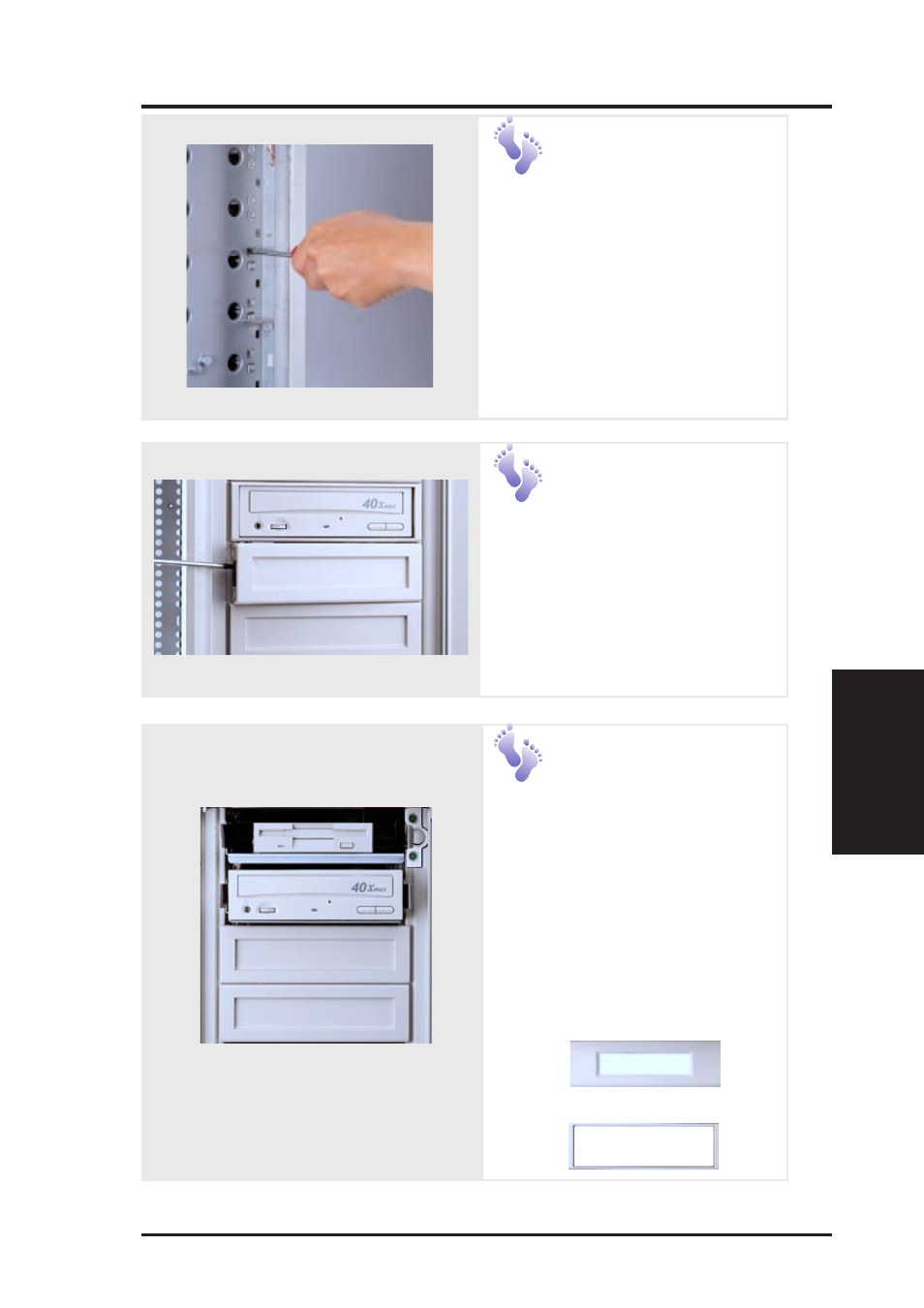

Fixed Device
Bay Cover
After releasing the device bay
cover clips, pry the cover away
from the chassis using a screw
driver from the front.
Fixed Device
Bay Cover
Clips
The device bay panel is held
by two plastic clips on each
side. Press these clips in with
a screwdriver to release.
Fixed Storage Devices
Storage Device
Spacers
A floppy drive spacer is used to
cover the floppy drive and power
button. A standard storage device
spacer is used to cover the CD-
ROM, tape drive, or additional
CD-ROMs. You should purchase
an extra spacer for each storage
device.
Floppy Drive Spacer
Fixed Device Spacer
