AP 3000 Hardware Reference Guide

II. System Components

II. Components

1.

Top Panel Screw

2.

Power Supply

3.

Power Supply Fan

4.

AC Power In Connector

5.

PS/2 Keyboard, PS/2 Mouse

6.

USB Ports 1 and 2

7.

Serial Port COM1

8.

Parallel Port

9.

Serial Port COM2

10. RJ45 Port (LAN)

11. Rear Fan Module

12. RAID Controller (Optional)

13. Chassis Stabilizer

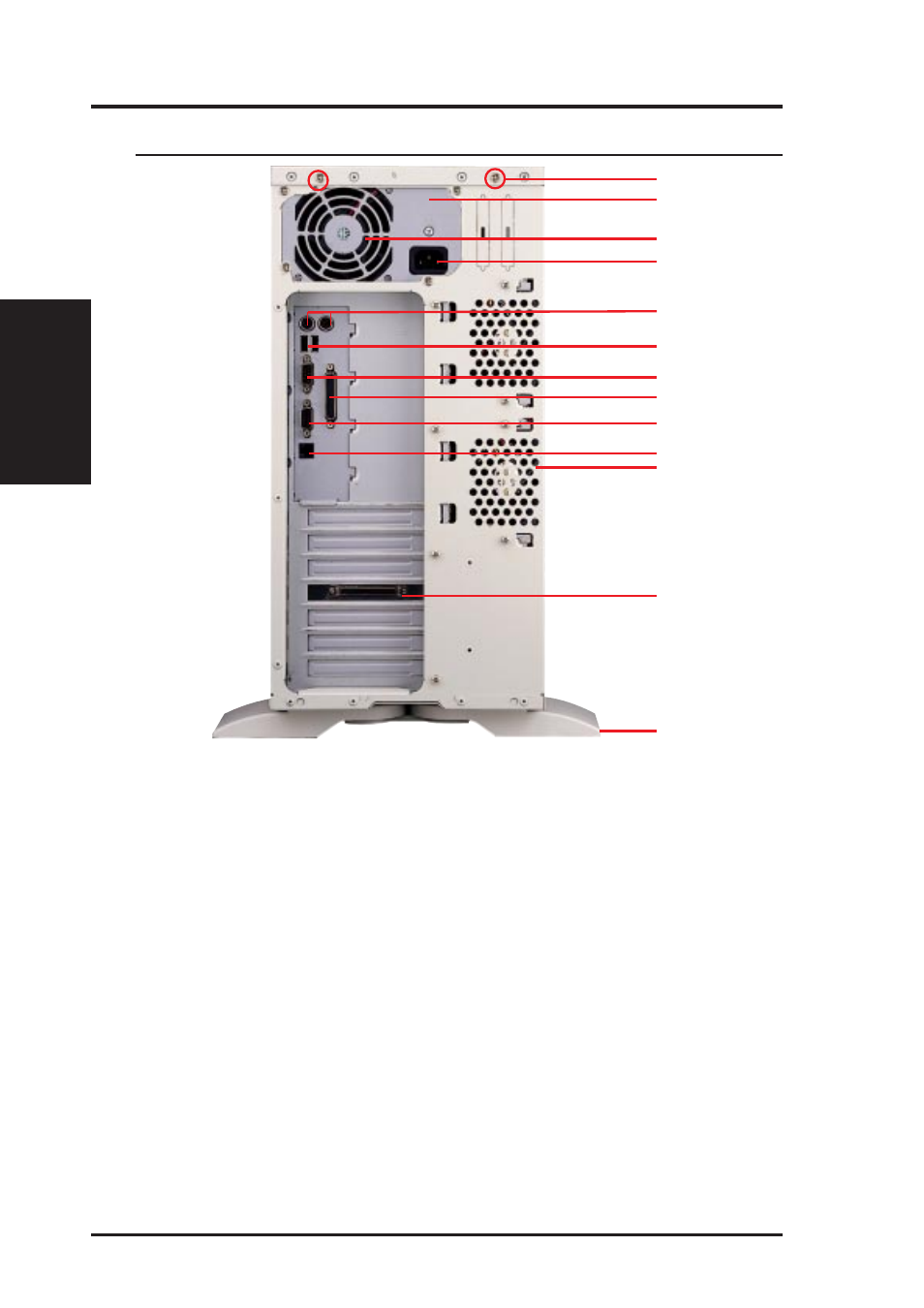

• 2-2. Server Back Side

Server Back Side

2

1

4

3

5

6

7

10

9

12

11

13

8

Back Side
