Iv. hardware setup, 7. fixed storage devices – Asus AP3000 User Manual
Page 26
26
IV. Hardware Setup
IV
. Hardware Setup
AP 3000 Hardware Reference Guide
• 4-7. Fixed Storage Devices

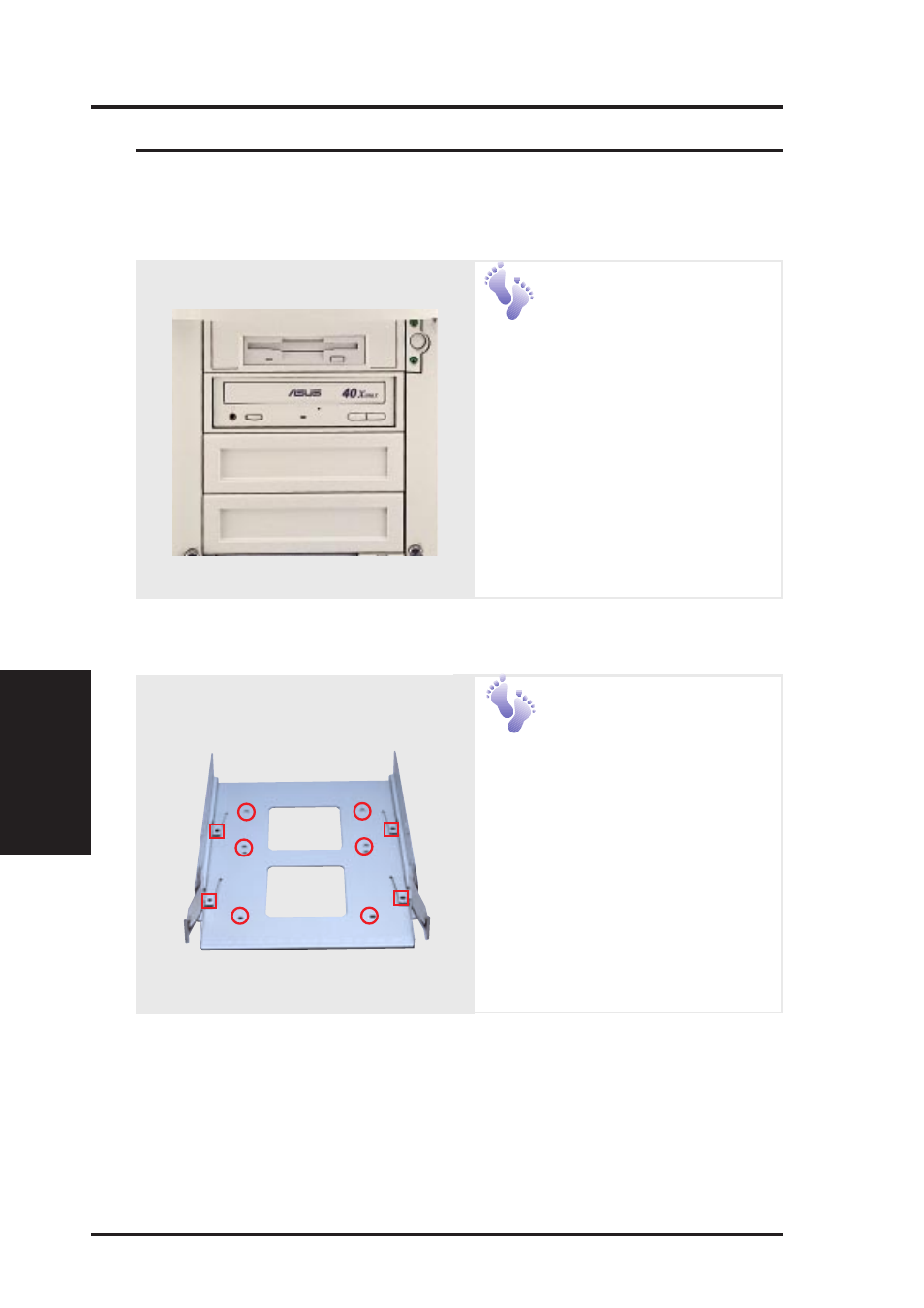

Internal fixed storage devices are mounted on removable trays. There
are four available, one for a floppy device and another three for full-
size devices.
Floppy Drive
and CD-ROM
The floppy drive fits in the top-
most bay along with the power
button. A CD-ROM can fit into
either the second, third, or
fourth bay from the top. A metal
clip on each side of the device
tray secures the tray in place.
Press inward to release the clips.
The tray slides in or out on the
side rails.
Fixed Storage Devices
Fixed Storage
Device Tray
There are six screws provided
(as circled) for mounting a 4 inch
device such as a floppy or hard
disk drive. Four screws are pro-
vided (as boxed) for mounting a
6 inch device such as a CD-
ROM or tape drive.
