16

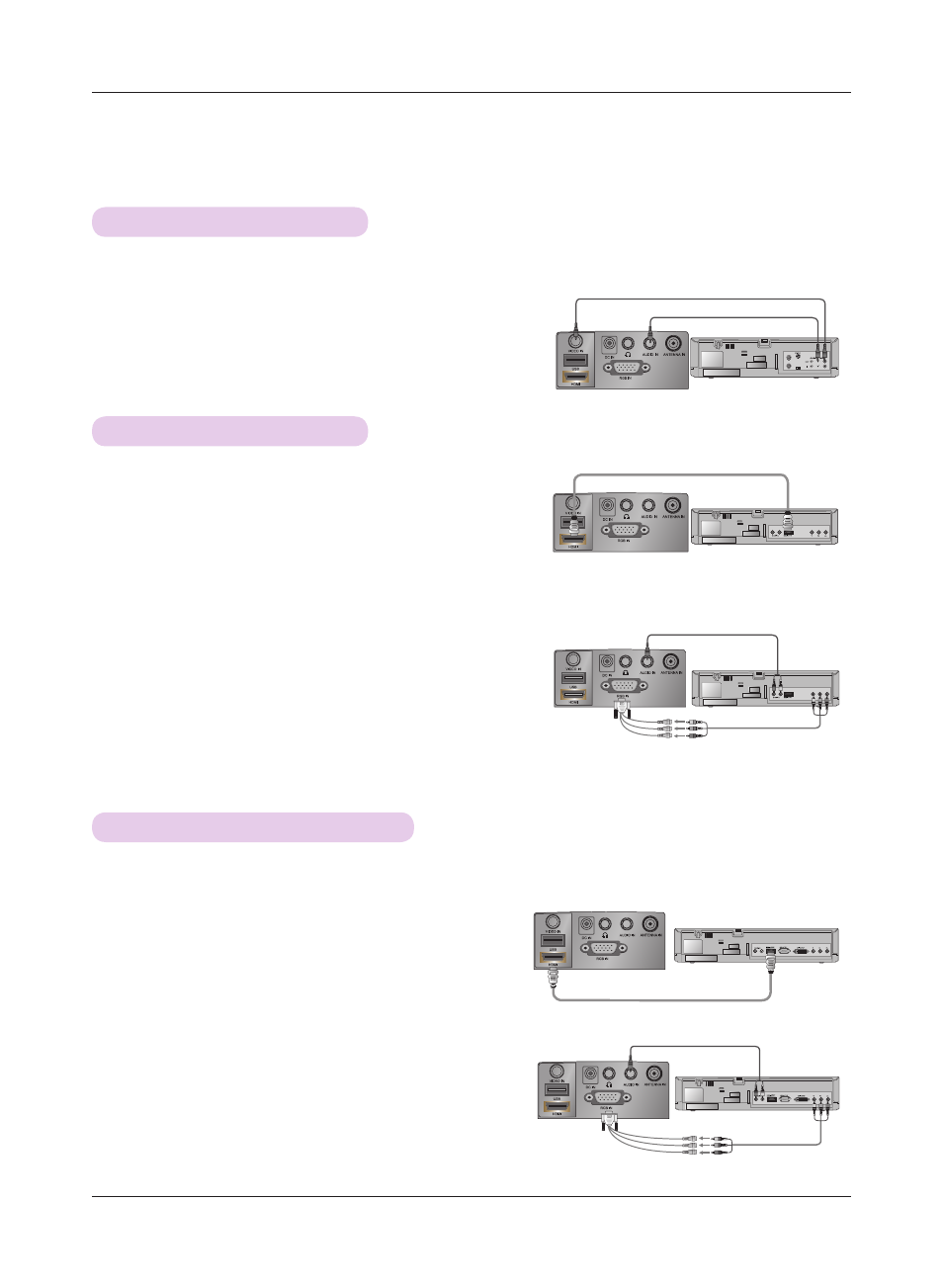

Connections
Connecting to a DVD Player
< How to connect a Component source >
* Depending on the equipment, the component output jacks (Y, P B , P R ) of the DVD
Player may be labeled as Y, Pb, Pr/Y, B-Y, R-Y/Y, Cb, Cr.
1 . After connecting the Component cable of DVD Player to the
RGB to Component cable, connect it to the RGB IN terminal
of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, P B =blue, P R =red)
2 . Connect the AUDIO IN of the projector to the output jacks of
the audio source with an audio cable.
< How to connect a HDMI source >
1 . Connect the HDMI of the projector and the HDMI output port
of the DVD Player with an HDMI cable.
2 . Set the DVD Player's resolution to one of the following:
480p/720p/1080i/1080p mode.
Component cable
Connecting to a DTV Settop Box
< How to connect a HDMI source >
1 . Connect the HDMI of the projector and the HDMI output
port of the DTV settop box with an HDMI cable.
2 . Set the DTV receiver's resolution to one of the following:
480p/720p/1080i/1080p mode.
* Please refer to the owner's manual of the DTV settop box for the connection between the projector and DTV set-
top box.
< How to connect a Component source >
1 . Connect the DTV settop box Component cable with
RGB to Component cable and than connect it to RGB
IN of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, P B =blue, P R
=red)
2 . Connect the AUDIO IN of the projector to the output
jacks of the audio source with an audio cable.
RGB to Component
Cable
HDMI Cable
HDMI Cable
Audio Cable
Audio Cable
Component cable RGB to Component
Cable
Connecting to a Video Source
< How to connect >
1 . Connect the VIDEO IN of the projector to the output jack of
the video source with a video cable.
2 . Connect the AUDIO IN of the projector to the output jack of
the audio source with an audio cable.
* You can connect a VCR, a camcorder or any other compatible video image source to the projector.
Audio Cable
Video Cable
