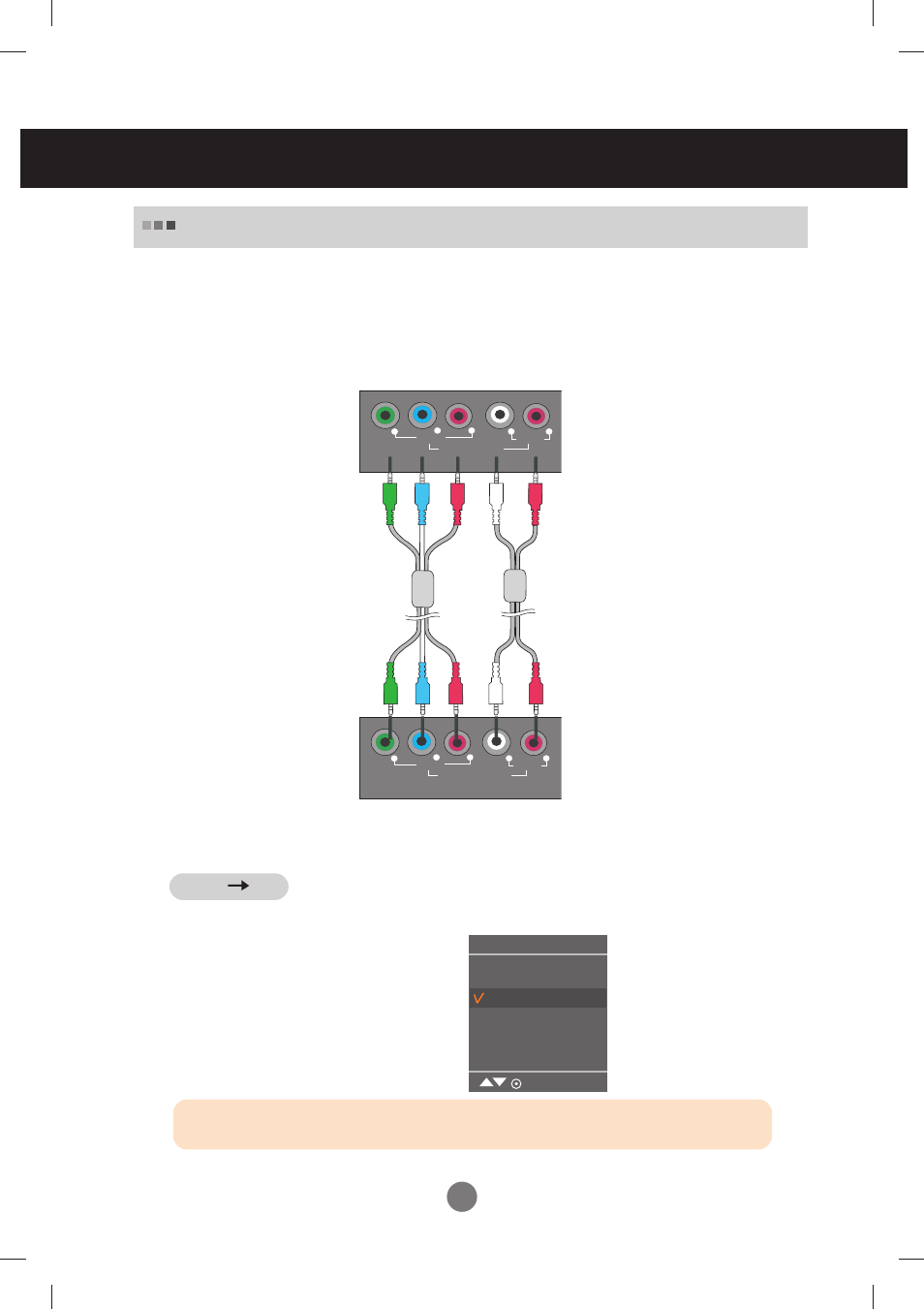

Connecting to External Devices
AUDIO
COMPONENT IN
VIDEO
Y P B P R L R
AUDIO
COMPONENT OUT
VIDEO
Y Pb Pr L R
Rear side of the Product
Component Cable
Connect the video/audio cable as shown in the figure below and then connect the power
cord (See page 11).
Connecting to Set-top Box /DVD (480i/480p/720p/1080i)
Set-top Box /DVD
• Connect the input terminal with a proper color match.
(Not included)
1.
Audio Cable
(Not included)
Select an input signal.
Press the INPUT button at the top side of the product to select the input signal.
• Select Component
2.
Input
AV
Component
RGB
HDMI/DVI
MENU
INPUT OK
Each time you press the Input button it will change to AV ➜ Component ➜ RGB ➜ HDMI/DVI.
If nothing is inputted for several seconds the screen will automatically move to the selected menu.
