Digital Monitor Module System
Digital Monitor Module System
75 Ohm Interconnect
5 w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1

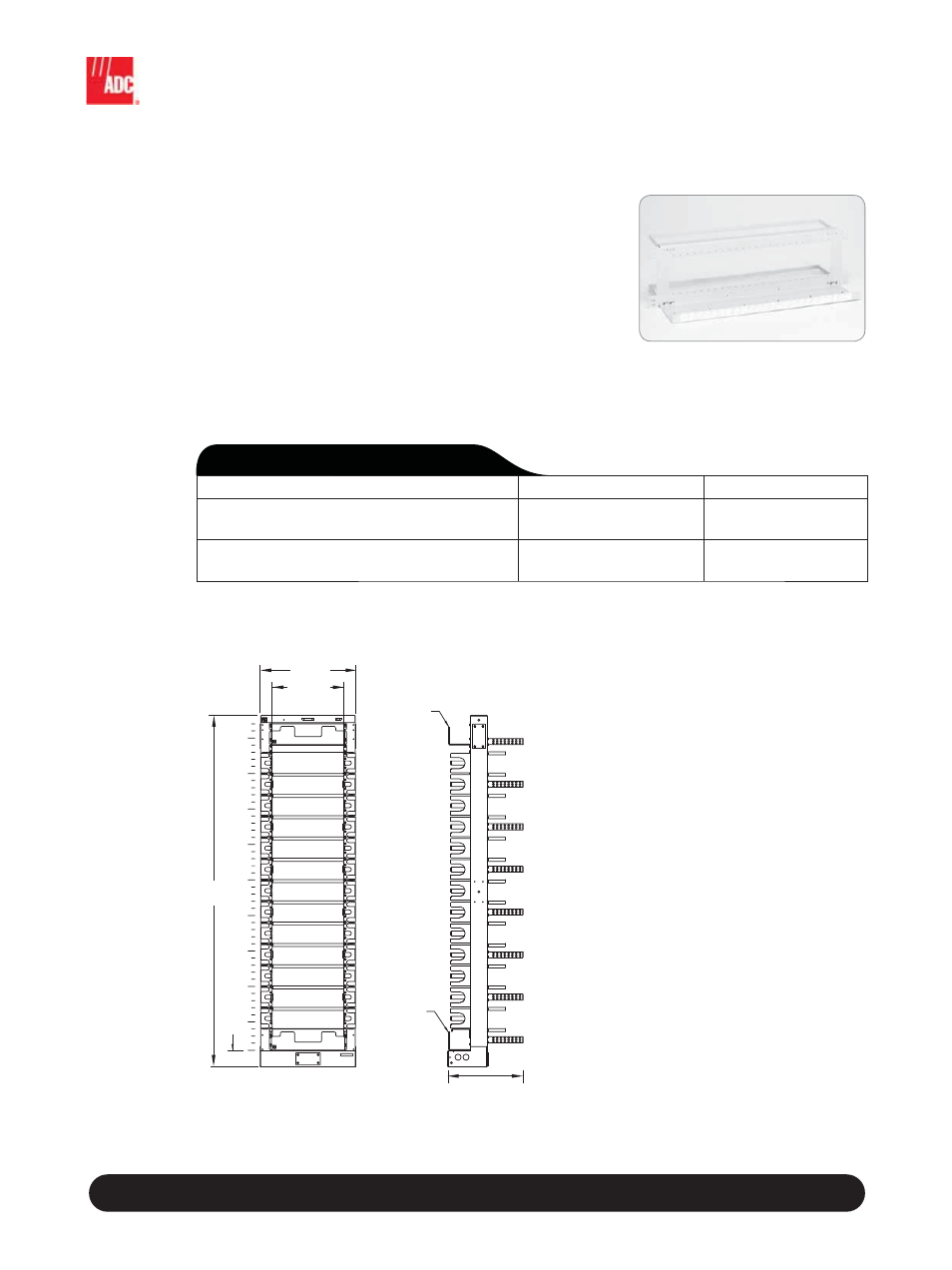

Standard Configuration
Features:
• 288 total circuits in fully loaded bay
• Cable bars and front cable trays, with cable tie-downs, reduce
cable congestion and simplify maintenance
• Circuit designation labels above connectors and on cable
tray ensure proper cable routing and identification
• Bay equipped with cable troughs, vertical wiring ducts, and
equipment cable tie-down bars
• Zone 4 earthquake-rated rack with EIA mounting spacing
D3C-0024T
Front View
475 mm
(18.7")
600 mm
[23.6]
2200 mm
[86.6]
449.6 mm
[17.7]
1
5
10
15
20
25
30
35
40
45
LOWER CABLE
TROUGH
UPPER CABLE
TROUGH
RESERVED FOR
MISCELLANEOUS APPLICATIONS
IBR-D3002
Front View
IBR-D3002
Side View
Description Dimensions (HxWxD) Ordering Number
Unloaded Chassis
accomodates up to 24 modules 113 x 482.6 x 228.6 mm
(4.4" x 19" x 9")
D3C-0024T
600 mm Skeleton Bay
accomodates up to 12 modules 2200 x 600 x 475 mm
(86.6" x 23.6" x 18.7")
IBR-D3C001
O r d e r i n g I n f o r m a t i o n
