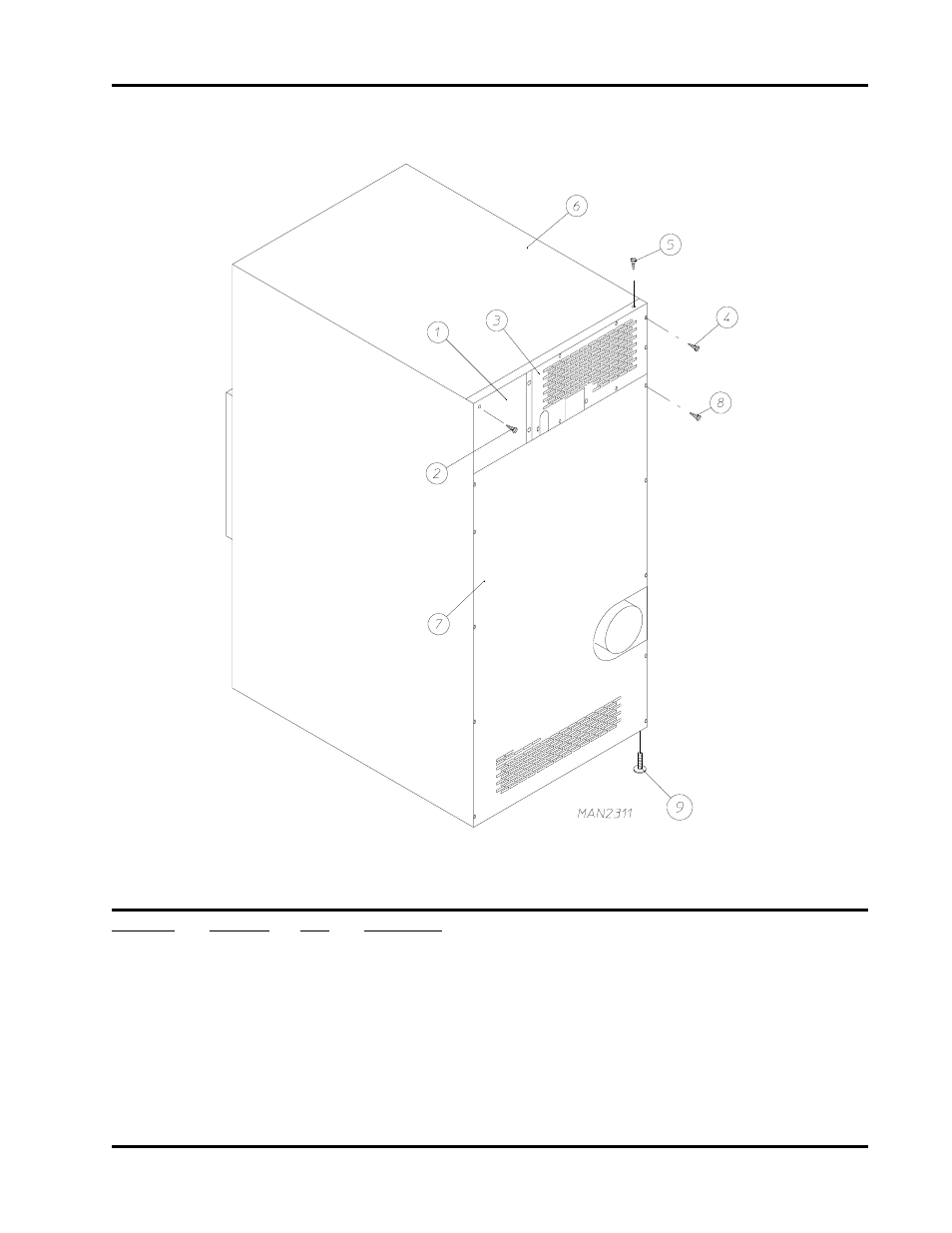

Outer Top/Back Guard Assemblies

Illus. No.

Part No.

Qty.

Description

1

322809

1

Back Electrical Box Cover

2

150301

4

#8-18 x 7/16” Phillips Pan Head TEK Screw

3

330660

1

Top Back Guard

4

150301

7

#8-18 x 7/16” Phillips Pan Head TEK Screw

5

150301

10

#8-18 x 7/16” Phillips Pan Head TEK Screw

6

330767

1

Outer Top

7

330609

1

Bottom Back Guard

8

150301

13

#8-18 x 7/16” Phillips Pan Head TEK Screw

9

103500

4

Leveling Leg
