23
Telephone: (508) 678-9000 Fax: (508) 678-9447

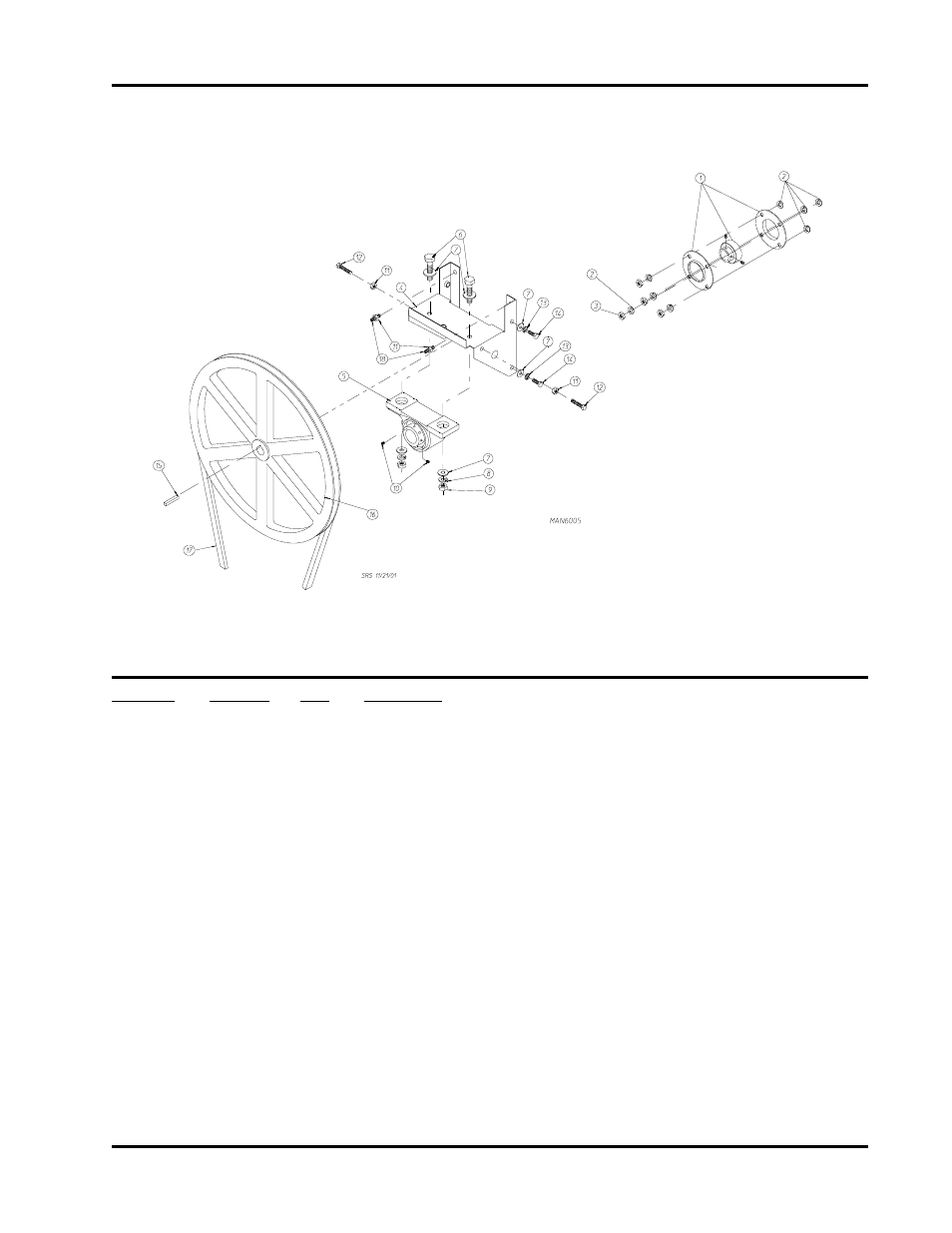

Basket (Tumbler) Bearing Assembly
For Models Mfd. as of April 27, 2001
Illus. No. Part No. Qty. Description
1 880209 1 1-3/8” 4 Bolt Pressed Steel Round Bearing
2 153005 12 3/8” Lock Washer
3 152005 4 3/8-16 Hex Nut
4 882544 1 Pillow Block Bearing Assembly Complete
(includes illus. nos. 4 through 14 and 18)
882542 1 Bearing Support ONLY
5 880202 1 1-3/8” Pillow Block Bearing
6 150601 2 3/8-16 x 2” Hex Bolt
7 153004 8 3/8” Flat Washer
8 153005 2 3/8” Lock Washer
9 152005 2 3/9-16 Hex Nut
10 154326 2 5/16-24 x 3/8” Setscrew Black
11 152004 4 5/16-18 Hex Nut
12 150621 2 5/16-18 x 1-1/2” Tap Bolt
13 153002 4 5/16” Lock Washer
14 150501 4 5/16-18 x 3/4” Tap Bolt
15 100713 1 1/4” x 1/4” x 7/8” Key
16 101100 1 18” Pulley
17 100100 1 5L-660 V-Belt (to idler assembly)
18 150610 2 5/16-18 x 1-1/2” Allen Setscrew
