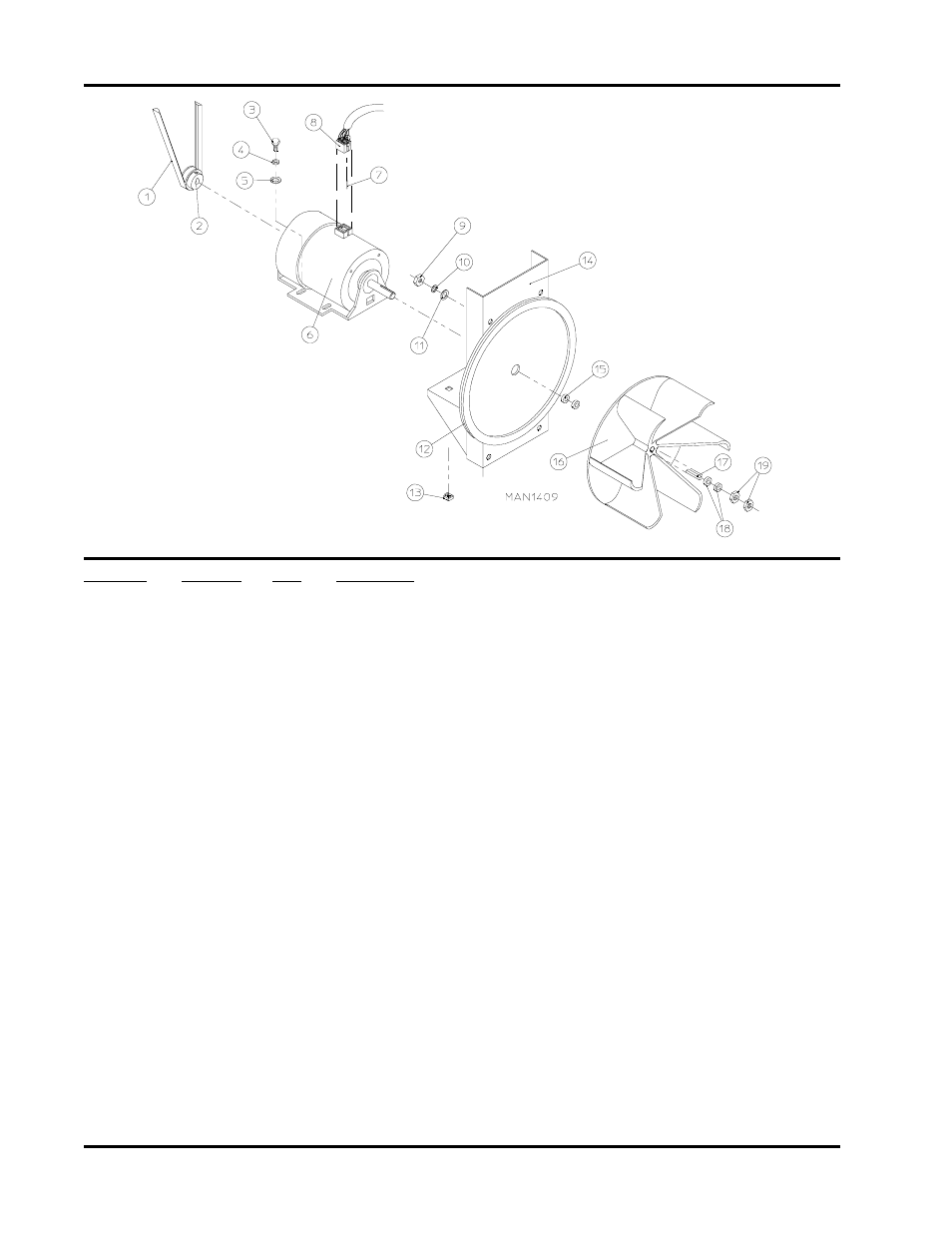

Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly
Illus. No.
Part No.
Qty.
Description
1
100105
1
4L-520 V-Belt (to idler bearing assembly)
2
101131
1
1/2” x 2-1/4” Motor Pulley (for use on 1Ø 60 Hz models Only)
3
150501
4
5/16-18 x 3/4” Tap Bolt
4
153002
4
5/16” Lock Washer
5
153001
4
5/16” Flat Washer
6
100065*
1
1/2 HP 115-230v 1Ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor with Plug
7
122701
8
Socket Terminal
8
137030
1
8-Pin Housing Connector ONLY
122801
1
Pin/Socket Extraction Tool
9
152004
4
5/16-18 Hex Nut
10
153002
4
5/16” Lock Washer
11
153001
4
5/16” Flat Washer
12
117600
4
Noise Suppressor Tape (sold by the foot)
13
154000
4
5/16-18 Tinnerman Nut
14
800909
1
1/2 HP Motor Mount ONLY (56Z frame)
803871*
1
1/2 HP 115-230v 1Ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)
Motor Mount Assembly with Plug Motor
(includes illus. nos. 3 through 8 and 13 through 19)
15
153050
2
1/2” S.A.E. Flat Washer
16
100604
1
12-1/2” Impellor (fan) with 1/2” Bore
17
100702
1
1/8” x 1/8” x 1-1/2” Key
18
153050
2
1/2” S.A.E. Flat Washer
19
152006
2
1/2-20 Left Hand Jam Nut
*
Specify voltage when ordering.
