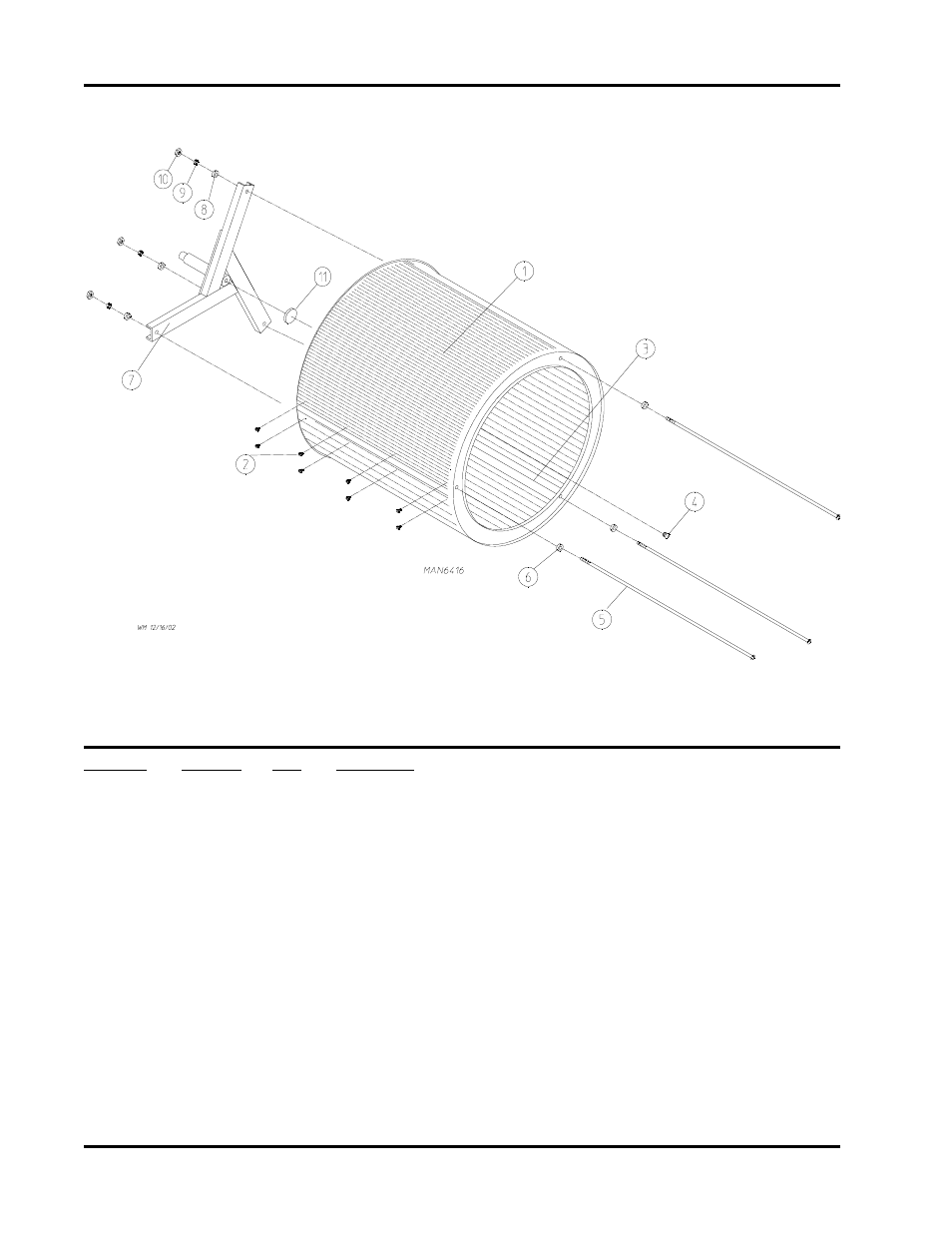

Basket (Tumbler)/Support Assemblies
Illus. No. Part No. Qty. Description
1 800843 1 Basket (tumbler) and Support Assembly Complete
(includes illus. nos. 1 through 10)
800717 1 Basket (tumbler) ONLY
2 154210 30 5/32” x 3/16” Pop Rivet
(for models mfd. as of December 12, 2000)
150309 30 #10-16 x 1/2” Hex Head TEK Crimptite Screw
(for models mfd. prior to December 12, 2000)
3 301318 2 Tapered Rib ONLY (low rib)
301317 1 Tapered Rib ONLY (high rib)
4 150518 1 5/16-18 x 3/8” Socket Screw
5 100916 3 3/8-16 x 25” Hex Head Tie Rod
6 153003 3 3/8” x 1-1/2” Fender Washer
7 800612 1 Basket (tumbler) Support ONLY
8 153001 3 5/16” Flat Washer
9 153002 3 5/16” Lock Washer
10 152004 3 5/16-18 Hex Nut
11 115986 1 Basket (tumbler) Felt Pad
