AIMB-256 User Manual

Chapter 1

roduction

Introduction

1.8.13

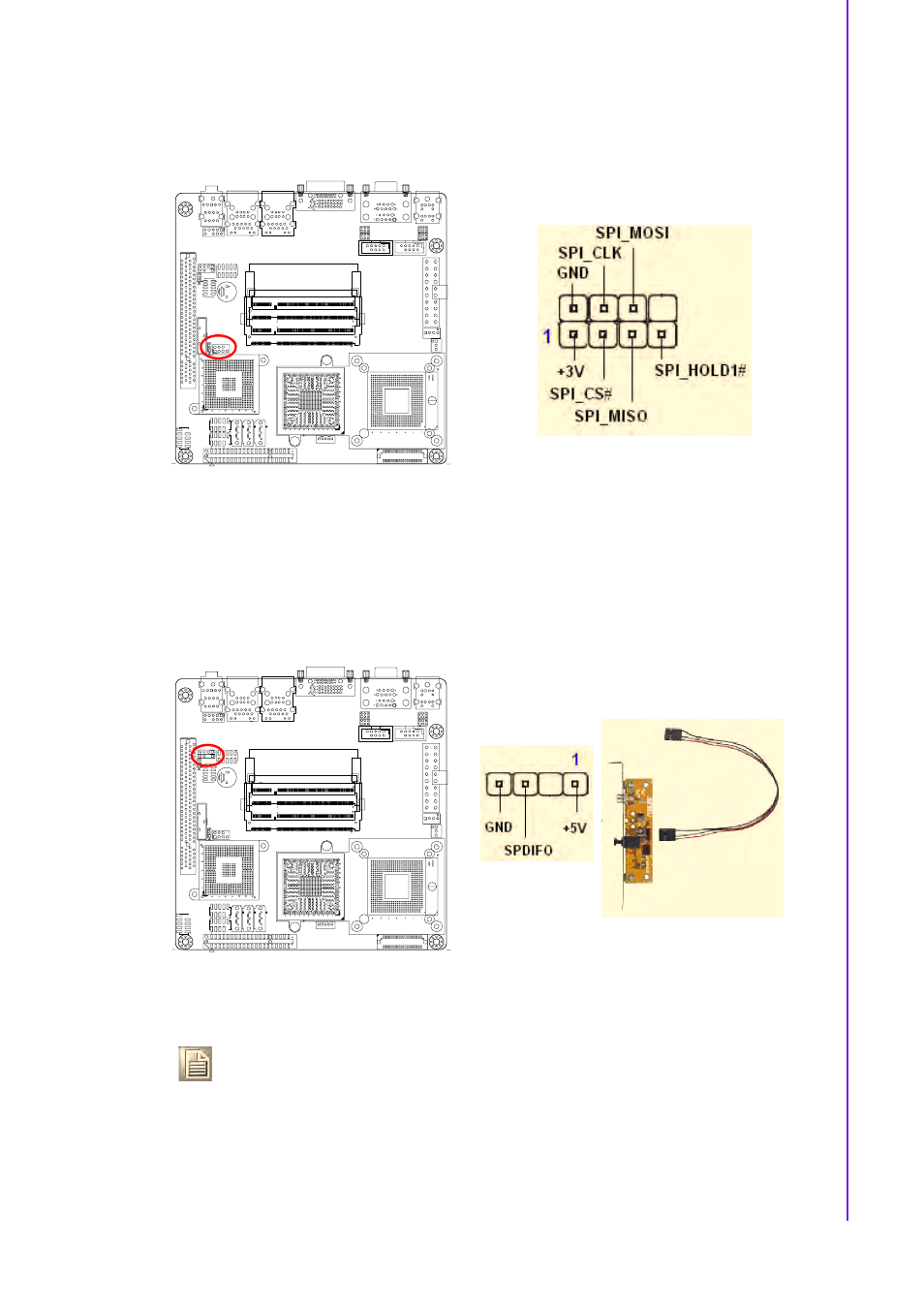

SPI Connector (JSPI1)

1.8.14

Digital Audio Connector (SPDIF_OUT2)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s).
Connect the S/PDIF module cable to this connector, then install the module to a slot
opening at the back of the system chassis.

Note!

The S/PDIF module is purchased separately.
