4,5 USB1, USB2 LAN (RJ-45) connector This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below
for the LAN port LED indications. The
optional 10/100 Mbps LAN controller
allows 10/100 Mbps connection to a
Local Area Network (LAN) through a
network hub.
Table 1.7: LEDs
ACT / LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
Orange Linked ORANGE 100 Mbps connection
Blinking Data activity GREEN 1 Gbps connection

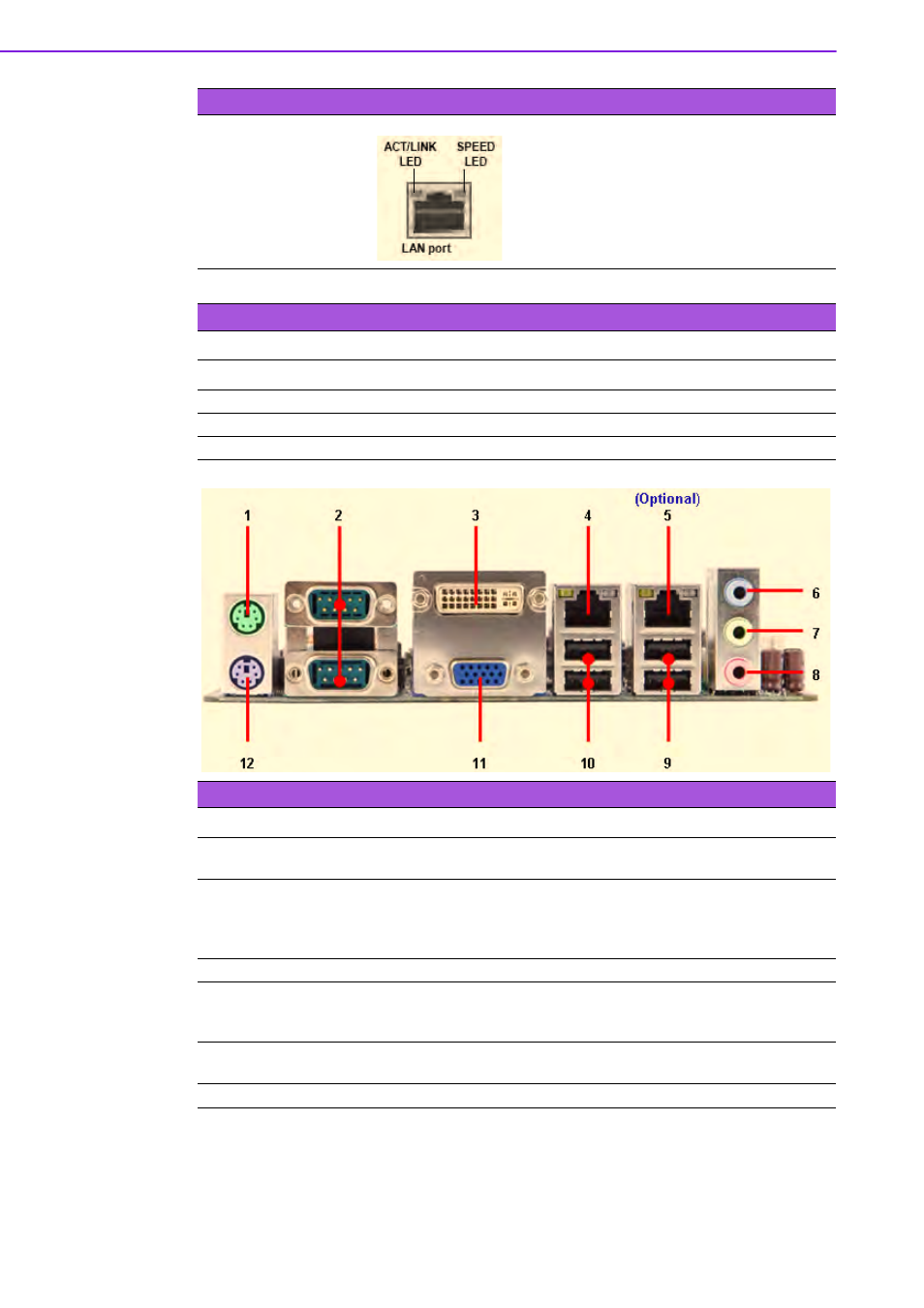

Table 1.8: Rear Panel Connectors
No Label Function Description
6 AUDIO1 Line-In port (Light Blue). This port connects a tape, CD, DVD
player, or other audio sources.
7 AUDIO1 Line-Out port (Lime) This port connects a headphone or a
speaker. In 4-channel, 6-channel, and
8-channel configuration, the function of
this port becomes Front Speaker Out.
8 AUDIO1 Microphone port (Pink) This port connects a microphone.
9,10 USB1, USB2 USB 2.0 connector These four 4-pin Universal Serial Bus
(USB) ports are available for connect-
ing USB 2.0 devices.
11 VGA_DVI-D1 VGA port This 15-pin port is for a VGA monitor
or other VGA-compatible devices.
12 KBMS1 PS/2 KB connector This port is for a PS/2 keyboard.
Table 1.6: Rear Panel Connectors
