21 AIMB-256 User Manual
Chapter 1
P
roduction
Introduction

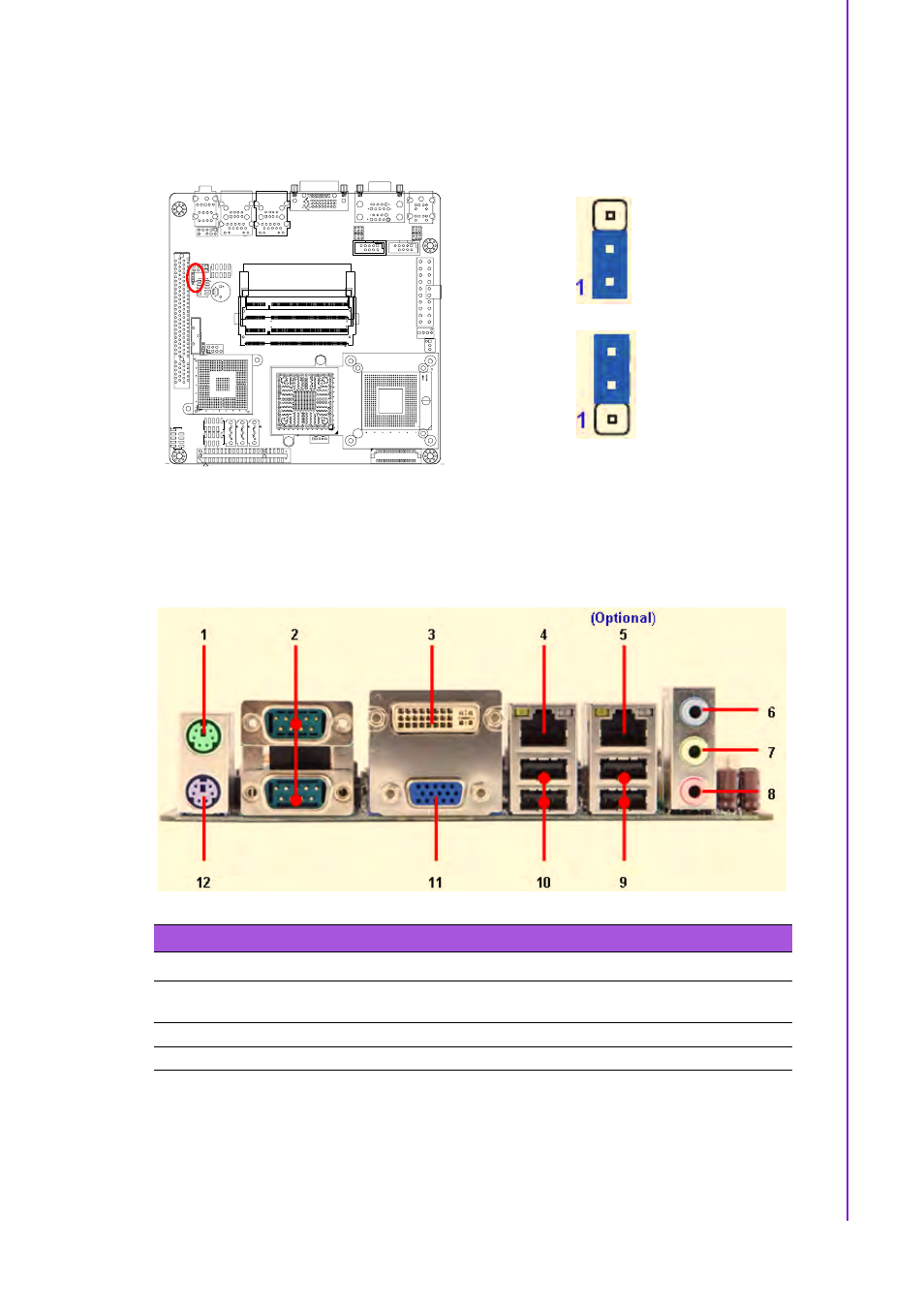

1.7.6 SM Power Connector (SM_PWRBTN1)
1.8 Connectors
1.8.1 Rear Panel Connectors
ATX Mode (Default)
AT Mode
Table 1.6: Rear Panel Connectors
No Label Function Description
1 KBMS1 PS/2 mouse connector The standard PS/2 mouse DIN connec-
tor is for a PS/2 mouse.
2 DUALCOM1 Serial port connector x 2 D-sub 9-pin, male
3 VGA_DVI-D1 DVI port
