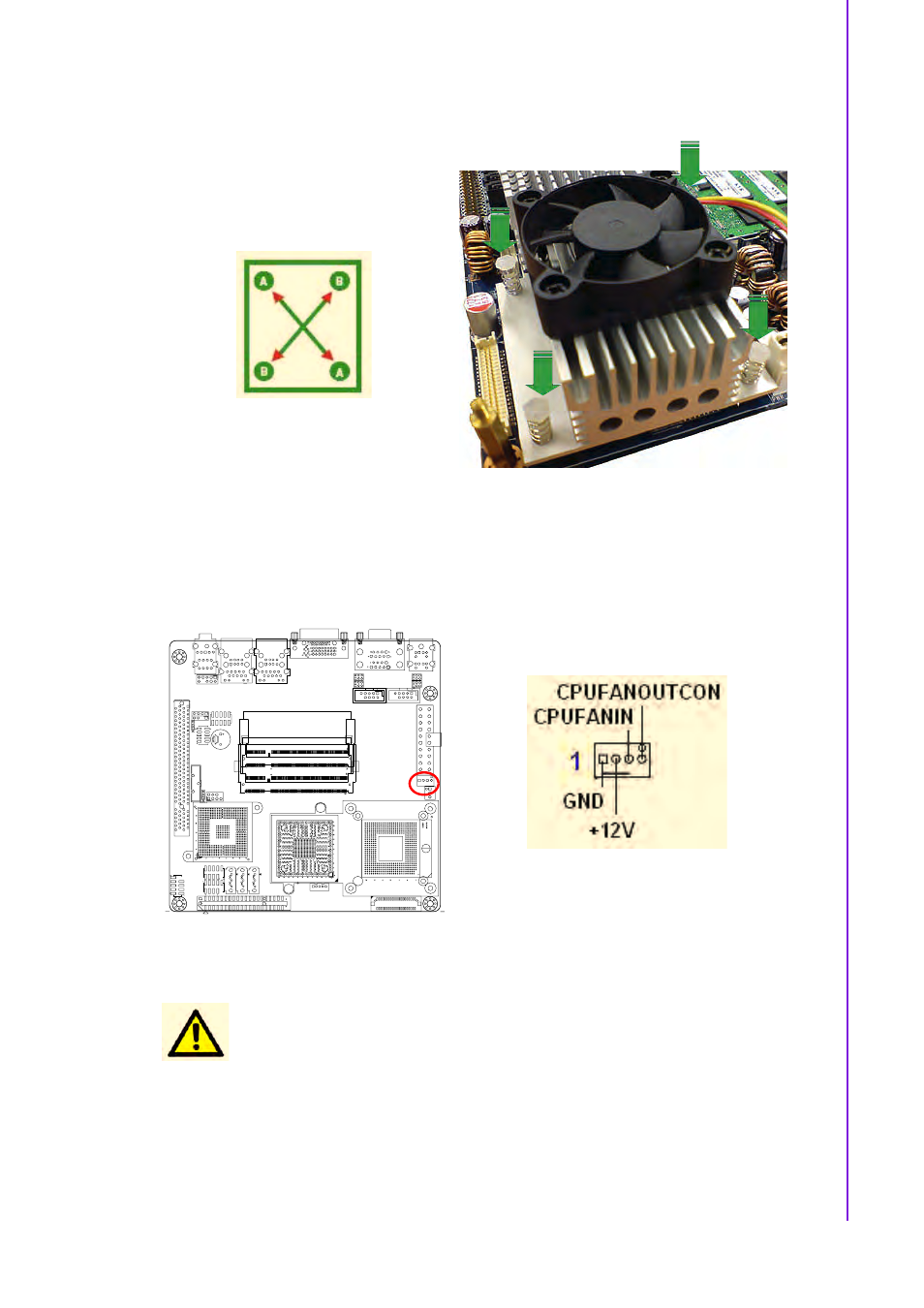

2. Push down two fasteners at a time
in a diagonal sequence to secure
the heatsink and fan assembly in
place.
3. Connect the CPU fan cable to the connector on the motherboard labelled
CPU_FAN1.
Caution! ! Do not forget to connect the fan cables to the fan connectors. Insuf-
ficient air flow inside the system may damage the motherboard
components, and hardware monitoring errors can occur if you fail
to plug in this connector.
! These are not jumpers! DO NOT place jumper caps on the fan con-
nectors.
