25
AIMB-256 User Manual
Chapter 1
P
roduction
Introduction

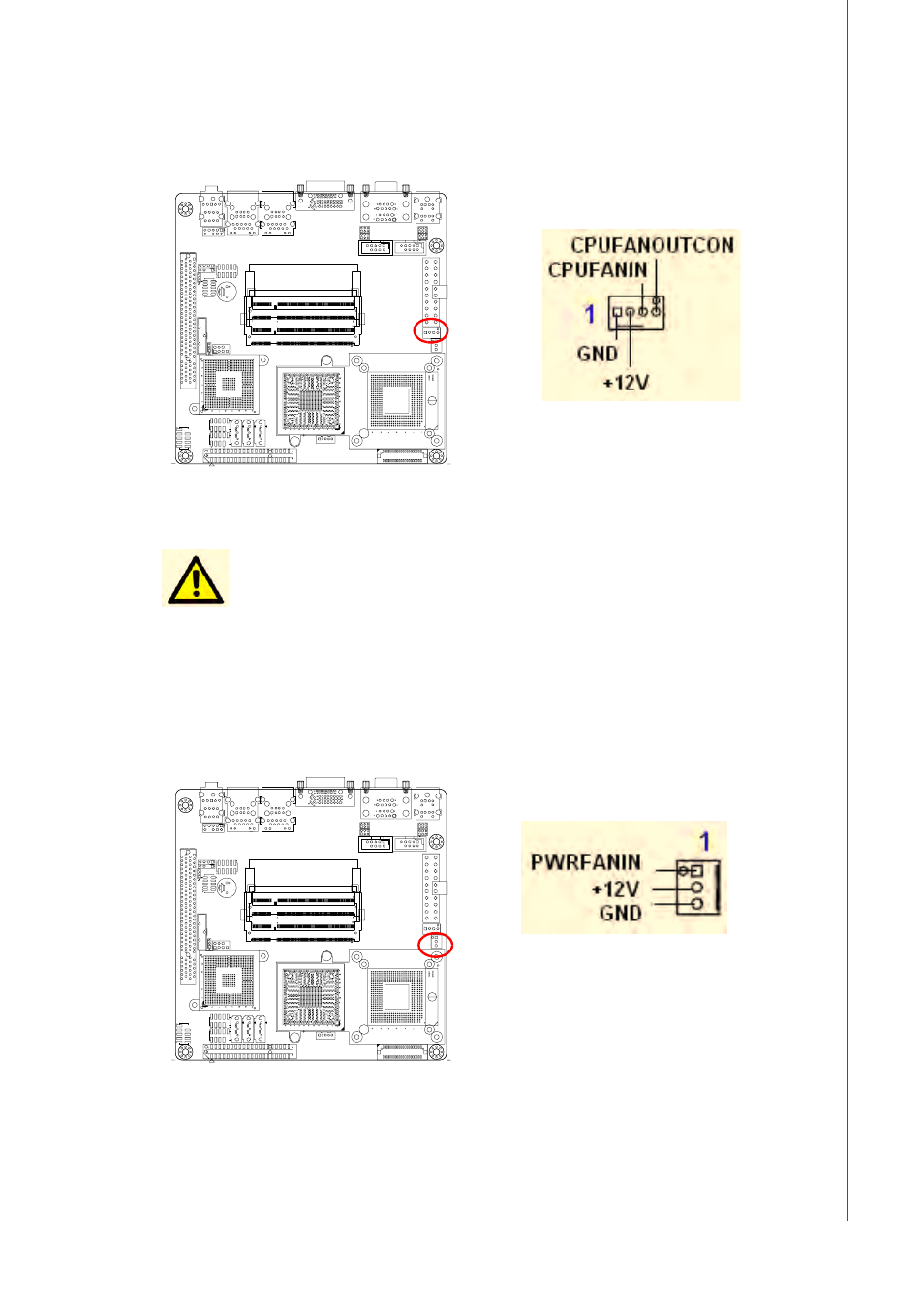

1.8.6
CPU Fan Connector (CPU_FAN1)
1.8.7
Power Fan Connector (PWR_FAN1)
Caution!
!
Do not forget to connect the fan cables to the fan connectors. Insuf-
ficient air flow inside the system may damage the motherboard
components, and hardware monitoring errors can occur if you fail
to plug this connector.
!
These are not jumpers! DO NOT place jumper caps on the fan con-
nectors.
