12

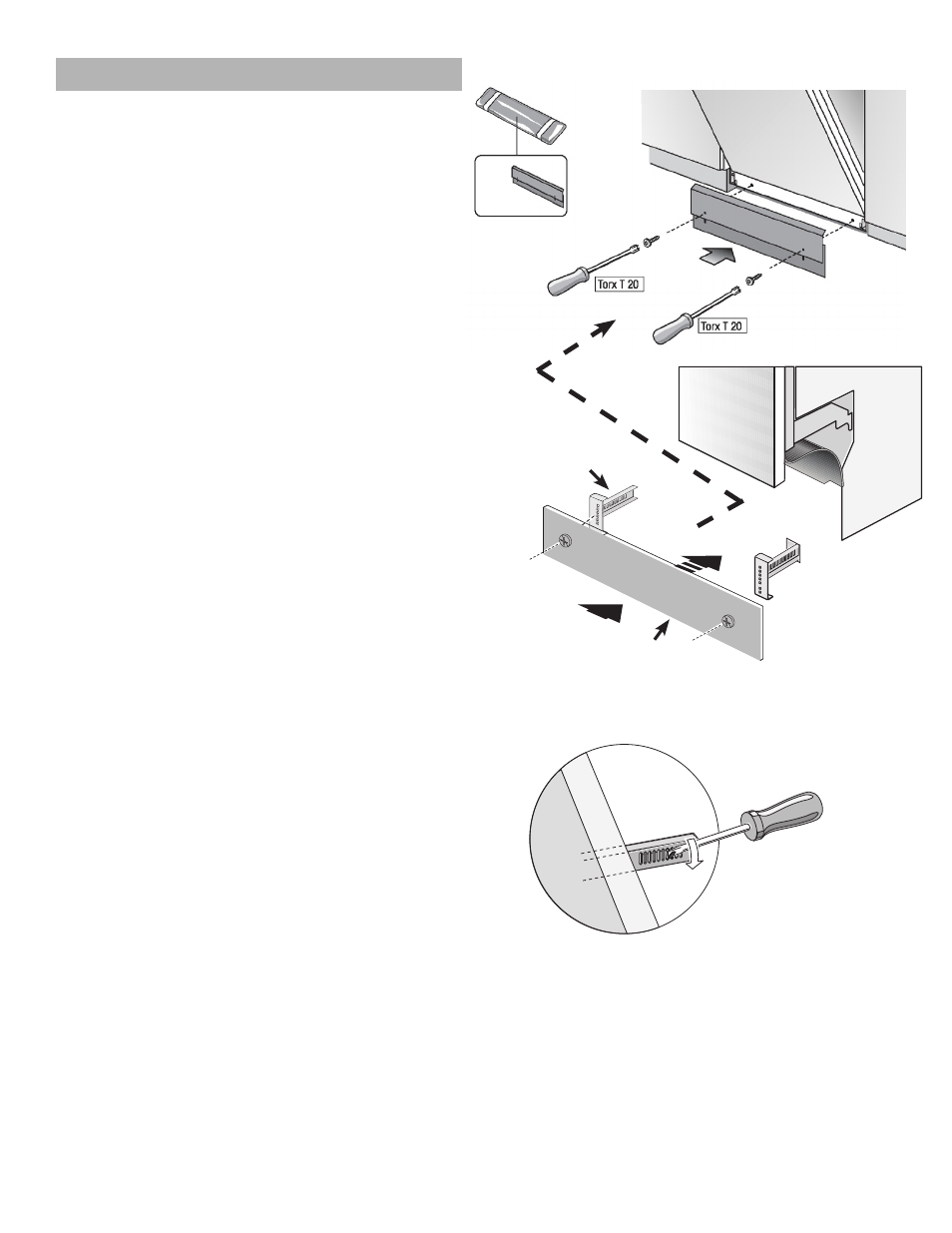

Your dishwasher comes with a three-piece toe panel (select
models) to allow height adjustment.
1. Position the slotted rear toe panel on the dishwasher first.
Allow it to rest on the floor.
2. Position the mating front toe panel on top of the rear toe
panel allowing the angled edge to rest on the mating
edge of the dishwasher.
3. Drive the two black screws (included) through the hole in
the toe panel to secure. Use the supplied screws to avoid
damaging the dishwasher. See Figure 21.
4. For models with outer toe panel (3rd piece) slide the
brackets (K) provided, into the slots of the toe panel you
just attached.
NOTE: Once you determine the correct position for the
brackets , remove the bracket and bend the metal tab. See
Figure 22. This ensures that the toe panel wont slide in
further than you need.
5. Re-insert the brackets.
6. Attach the outer toe panel (L) onto the brackets and drive
the screws provided in place to secure the toe panel.
NOTE: The rubber piece should remain behind the outer
toe panel.
Figure 21
A
Figure 22
Attaching the Toe Panel
(L) - See Page 5
(K)
